Architectural concept model of a courtyard building
A colonnaded courtyard building on a triangular site, 3D printed in sections, joined on its base and left plain white so the form reads first.
- Service
- Scale Models
- Delivered
- The whole building scheme and its site, split, printed and joined for them
- Fabrication time, after design approval
- 3 weeks
What we brought
What we can do
We print a whole building scheme, site and all
The covered walkway, central arch and steps, gabled roofs and courtyard floor, all printed and joined as one model.
How we look after you
We split it, print it and put it together for you
Fine lines on the courtyard floor are the only sign it was printed in sections.
What you get
Your scheme is clear from every side
A single plain white takes colour out of the picture, so the eye follows the form and the proportions.
Gallery
The whole project at a glance. Drag or swipe to browse; tap a picture to enlarge it.
1 / 12
-
The finished piece
-
Arched windows over the covered walkway.
-
The arched pavilion on the outer face.
-
Along the front.
-
From the back.
-
From the corner.
-

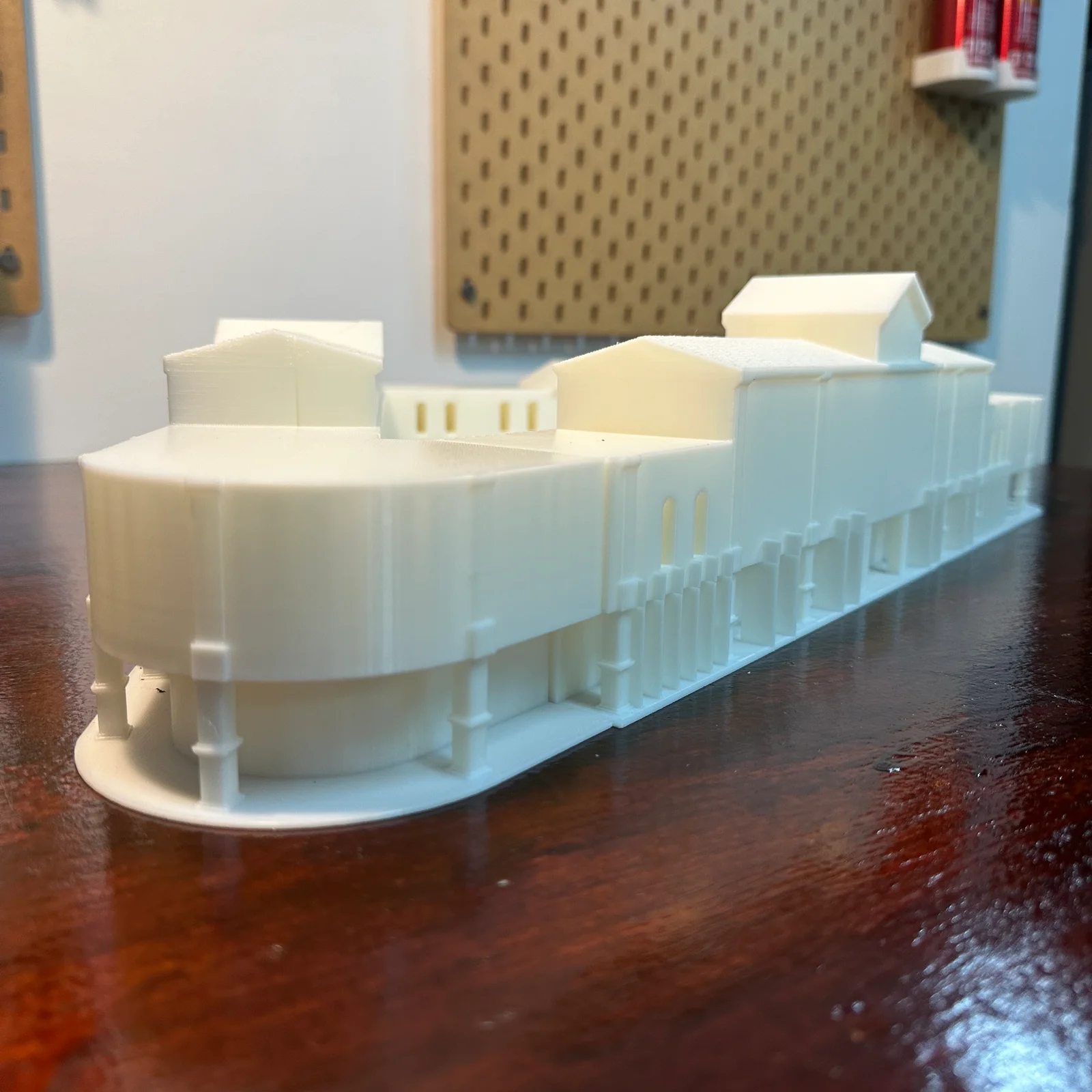

The curved end.
-

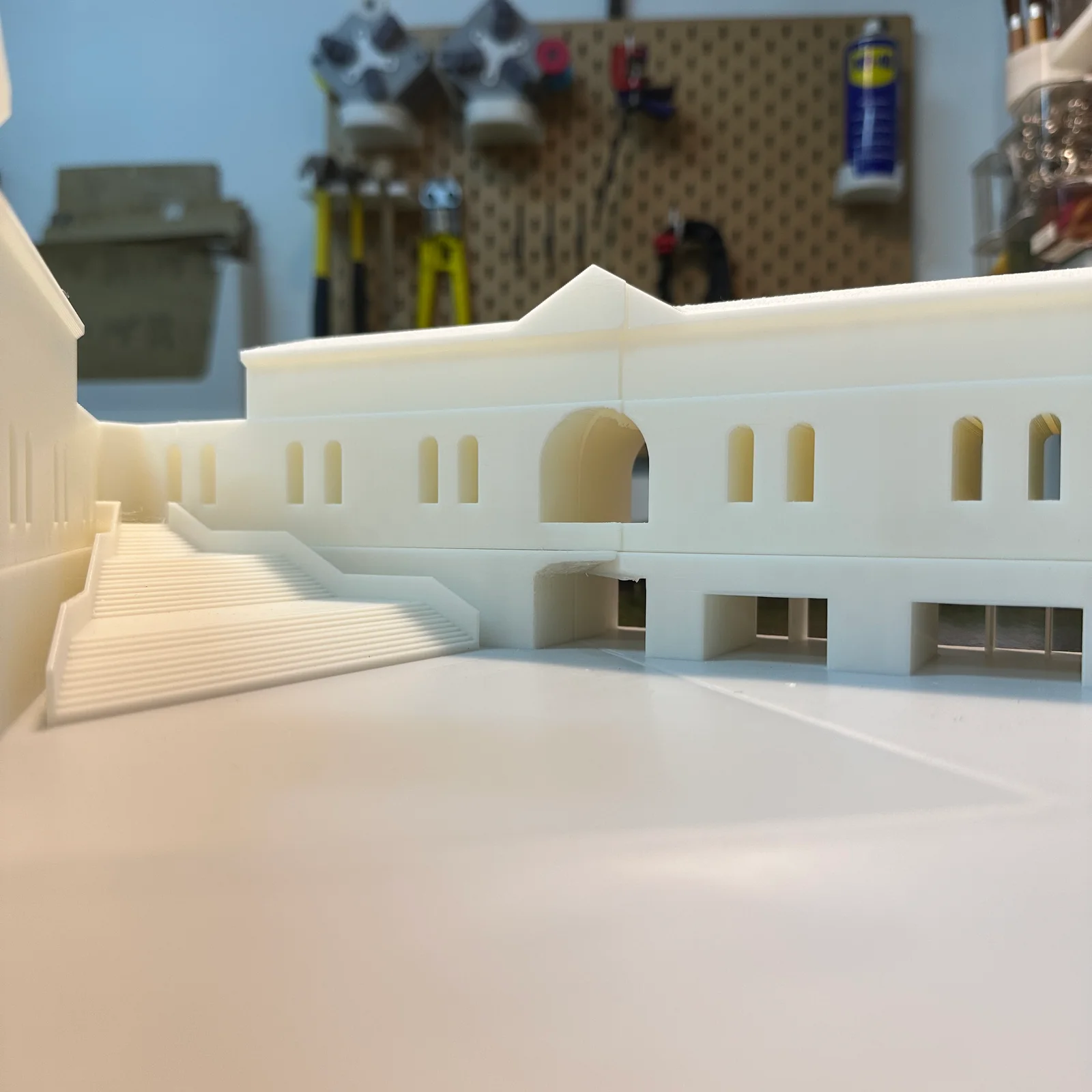

The central arch and steps, from the courtyard.
-

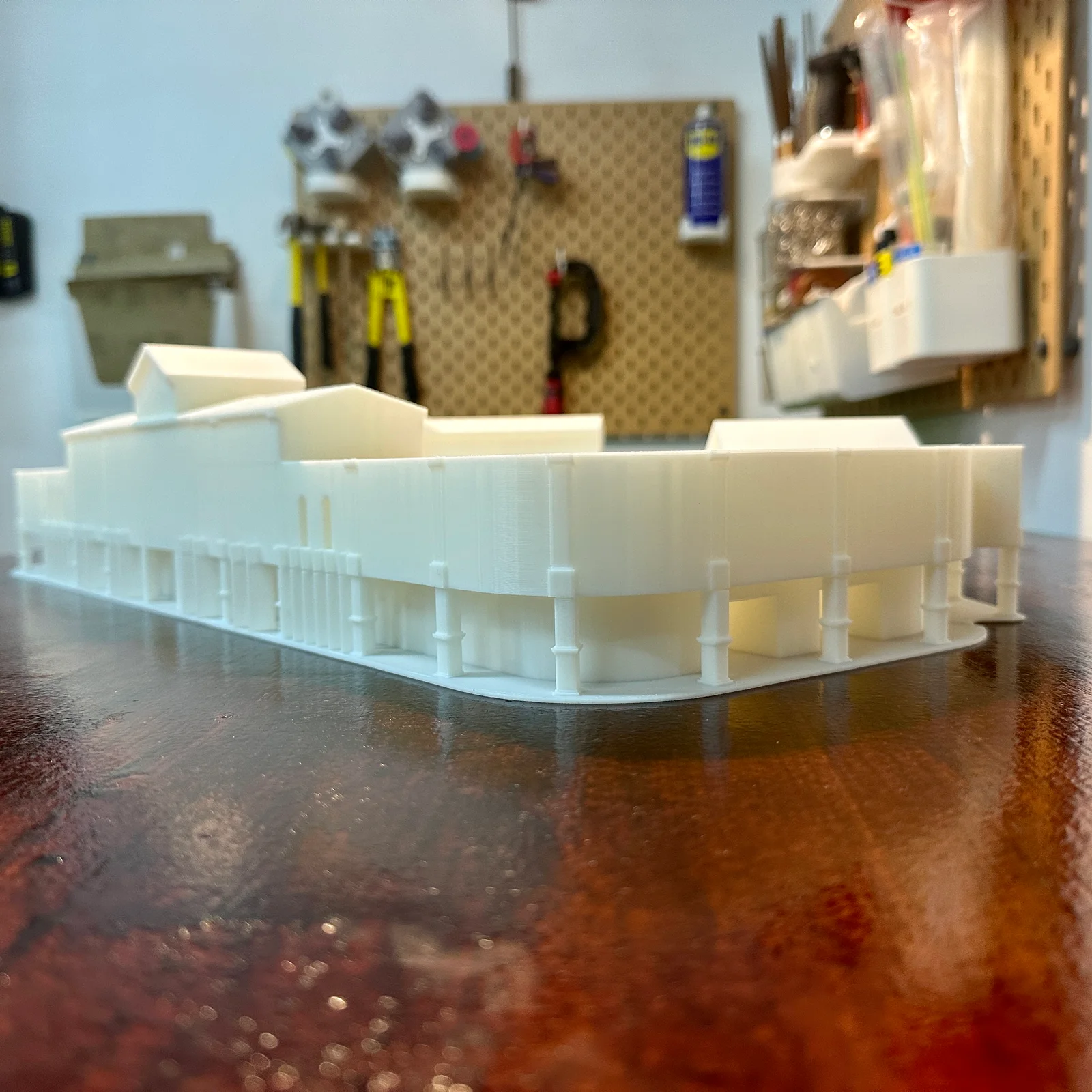

The covered walkway curving round a corner.
-

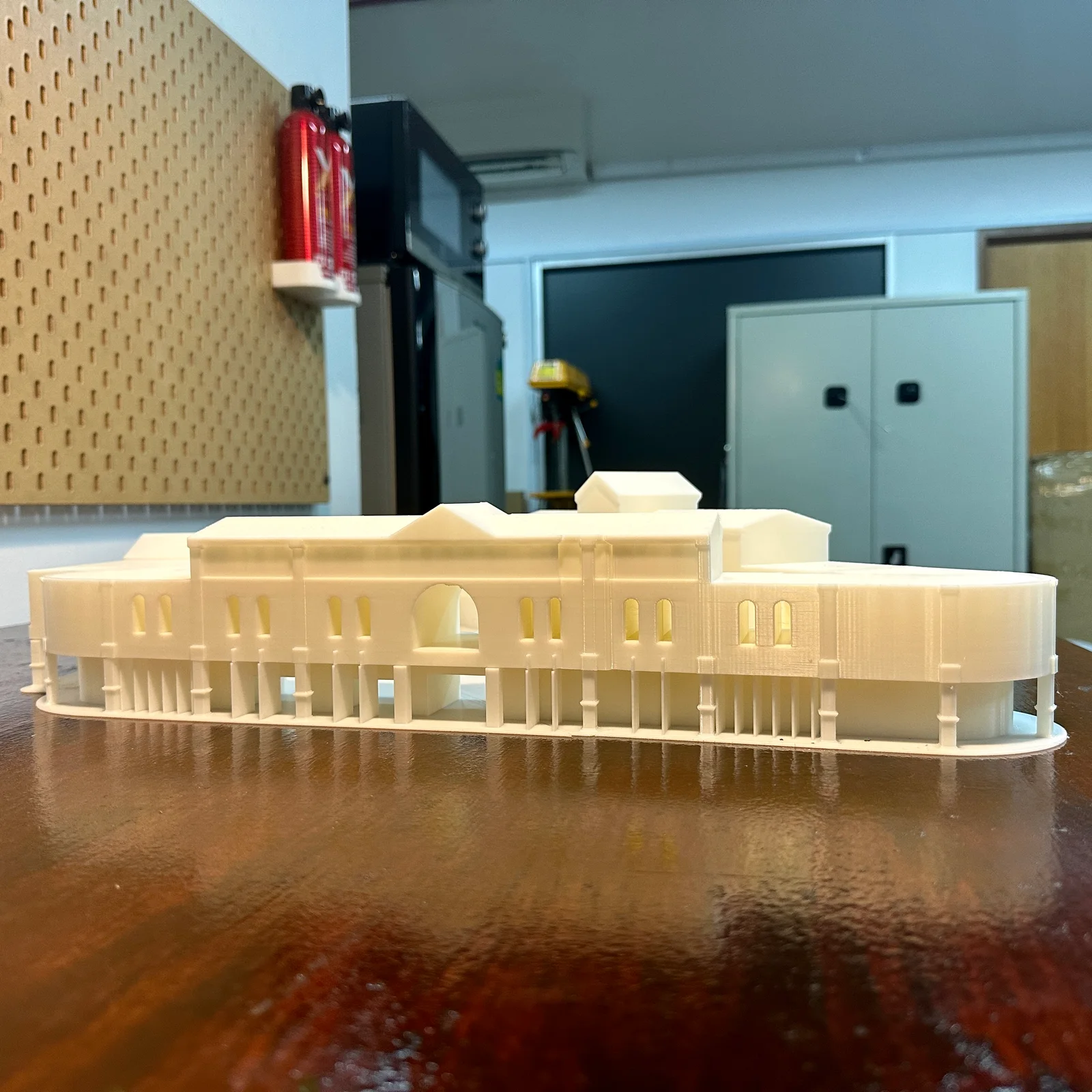

The briefThe whole front, from end to end.
-
FabricationRoofs, wings and floor, printed as sections.
-
Build and assemblySections joined on the site base.
The build
How we built it
4 steps, from the brief to the finished piece. Pick a step to jump to it.
The brief
Step 1 of 4
At Additive Inn, our 3D printing studio in Singapore, we 3D printed a white concept model of a colonnaded courtyard building on a triangular site, to show the whole scheme at a glance.
Fabrication
Step 2 of 4
The building and site were split into sections sized for our printers, and each one was printed in white by fused deposition modelling (FDM).
Build and assembly
Step 3 of 4

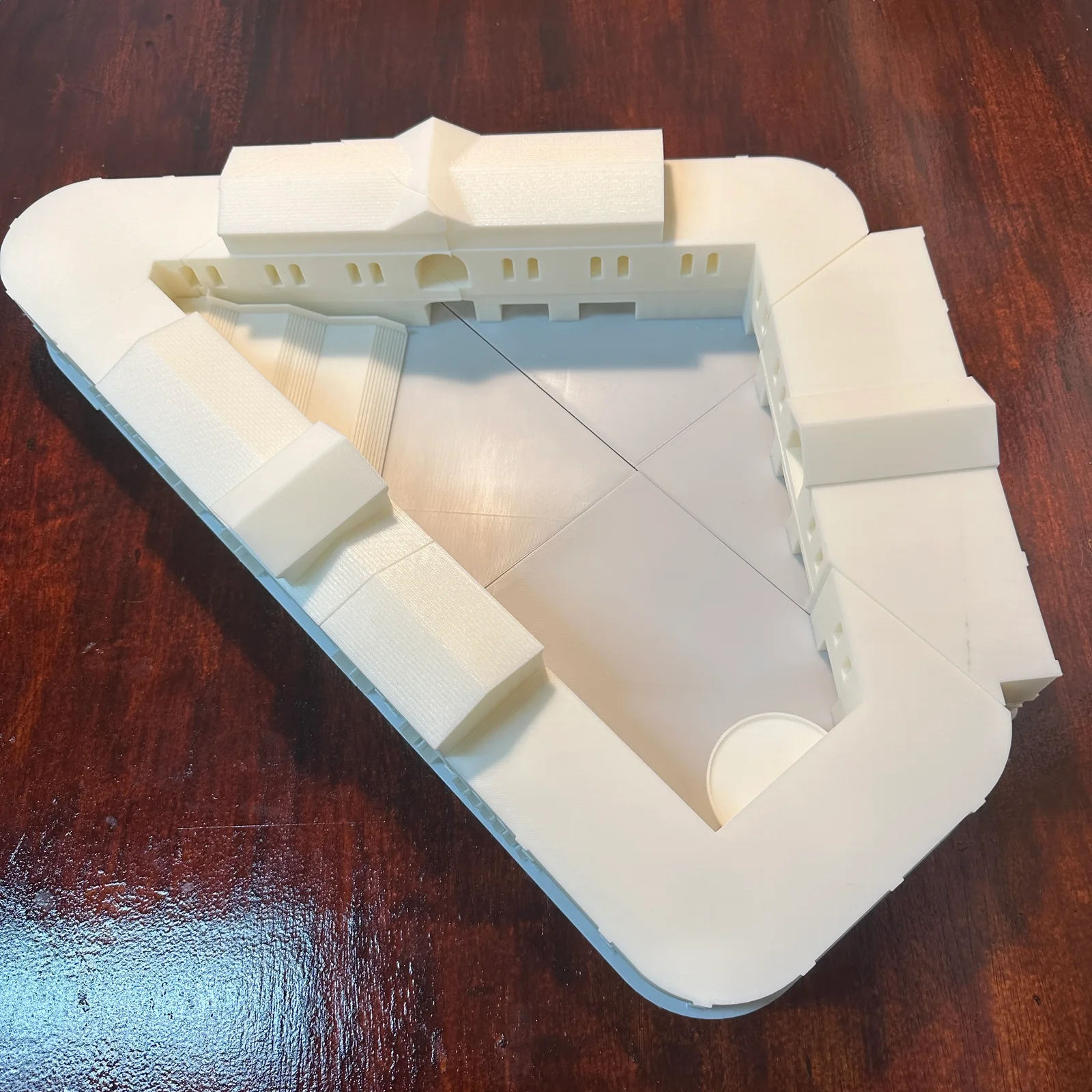

The sections were joined on the site base. Fine lines across the courtyard floor show where they meet.
The final build
Step 4 of 4
The finished model is plain white, with no paint, so the eye follows the covered walkway, the gabled roofs and the way the building closes off its triangular plot.
The details
The small parts are what make the scheme read: the columns, the pairs of arched windows, the gabled roofs and the broad steps.
