Privacy Shield for a Dome Security Camera
A 3D printed shield that blocks part of a dome camera's view, designed for Fonda Global Engineering around the camera itself.
- Client
- Fonda Global Engineering
- Designed from
- The camera itself, with no drawings to work from
- Fixing
- Double-sided tape, so the camera needs no new holes
- Printed in
- White PETG, in our studio
- Height of the shield above the camera's base
- 66 mm
- Of the view each printed segment covers
- 120°
- Rounds of design before the printed sample
- 2
What we brought
What we can do
We design from the device you bring
We measured Fonda's dome camera itself and drew the shield to sit on its base, clear of the dome.
How we look after you
Designed to print well, not just look right
We angled the foot at 45° and split the ring into segments, so each piece prints cleanly.
What you get
One part, three levels of privacy
One 120° segment shades one side; two or three cover more, with the screw holes still reachable.
Gallery
The whole project at a glance. Drag or swipe to browse; tap a picture to enlarge it.
1 / 11
-
The finished piece
-

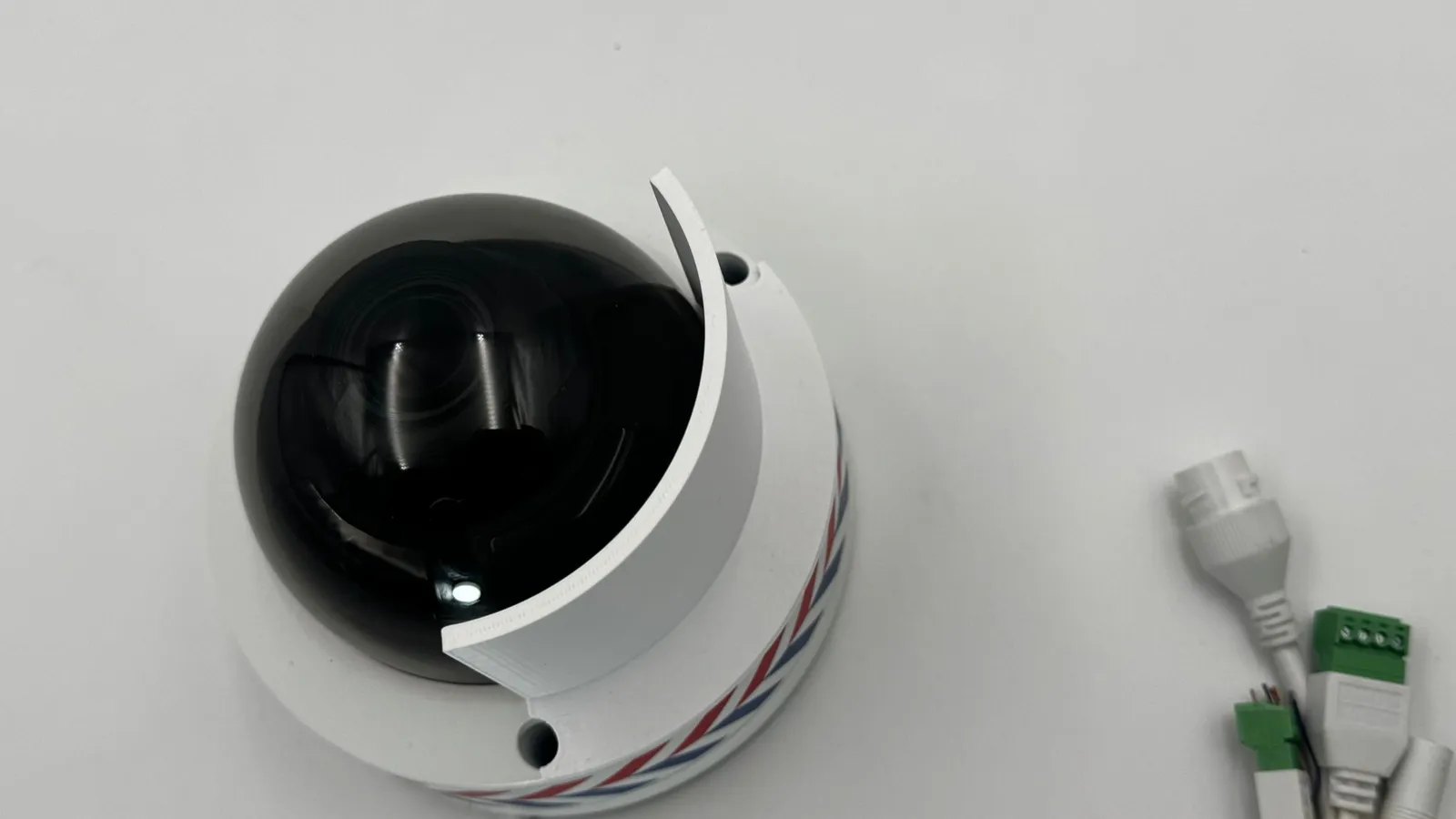

From above: the shield hugs the dome.
-

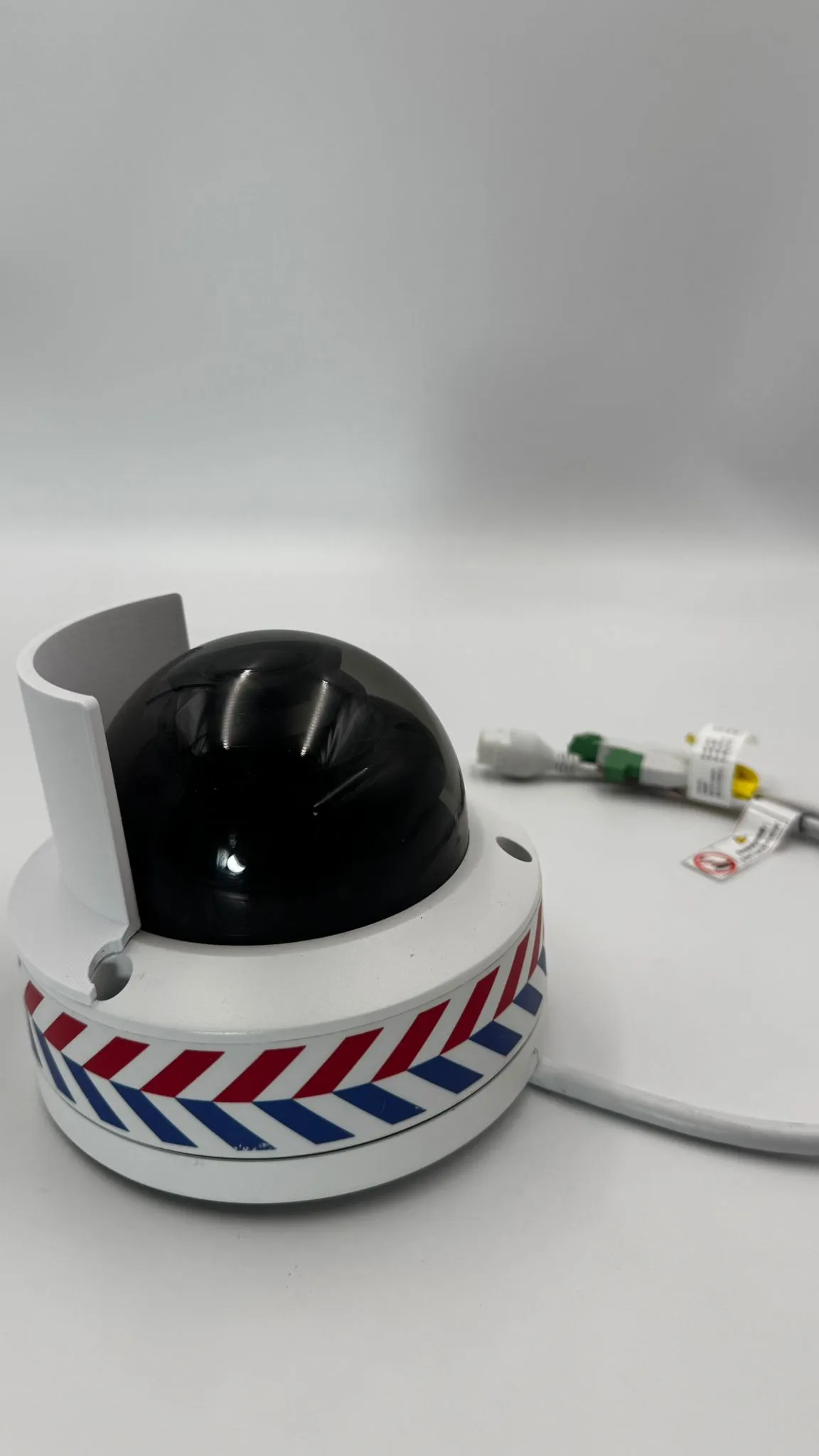

The shield rising behind the dome.
-

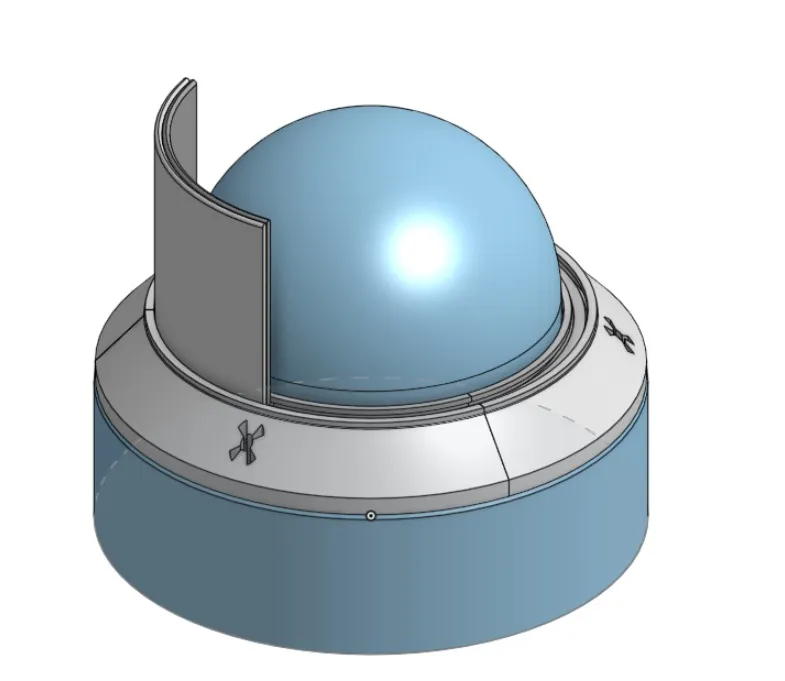

ConceptRenderThe first idea on the camera.
-
Design & prototyping · First designRenderThe first design: one ring, one wall.
-
Design & prototyping · Second designRenderOne segment covers 120°.
-

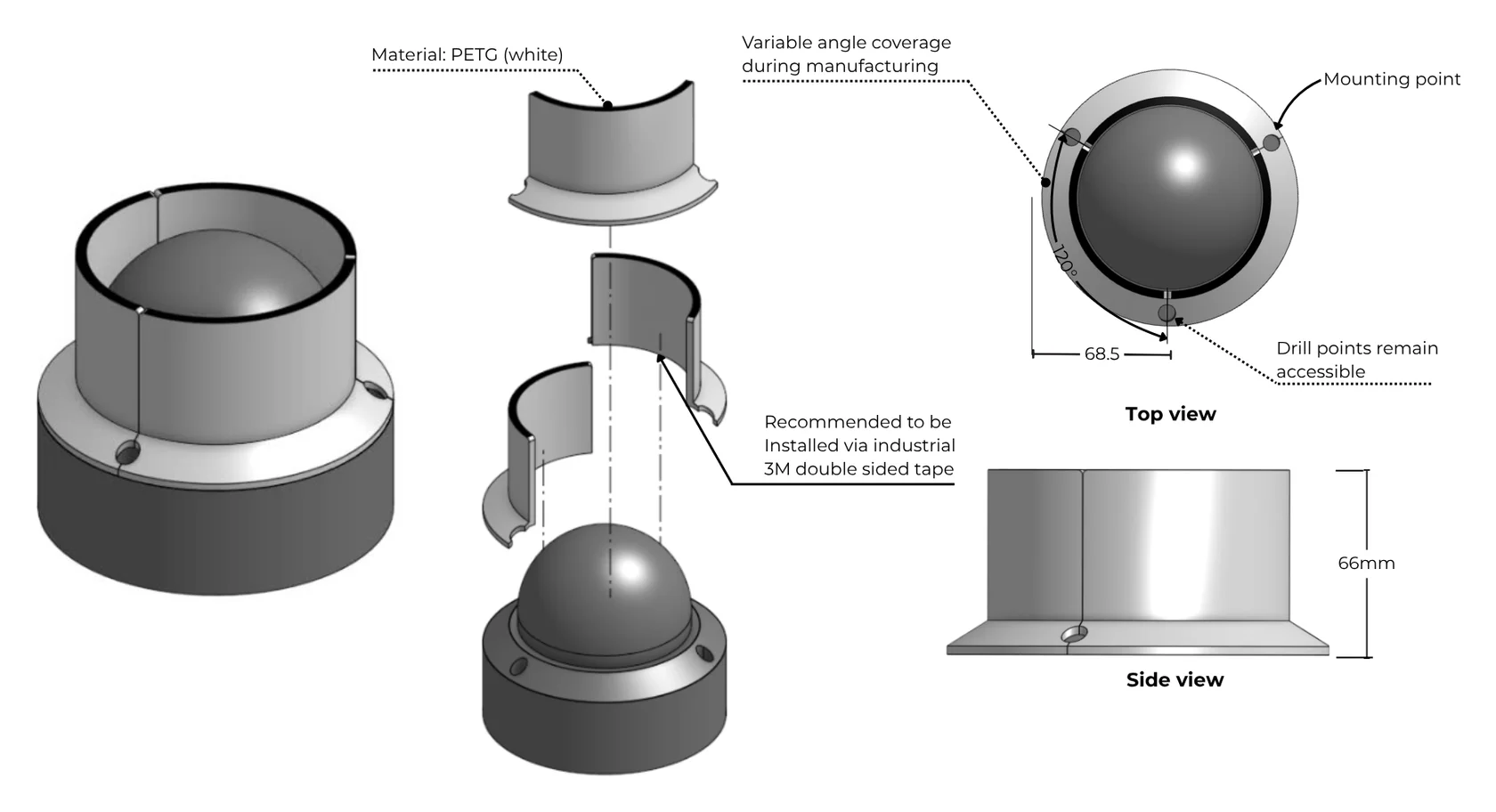

RenderThree segments close the circle.
-

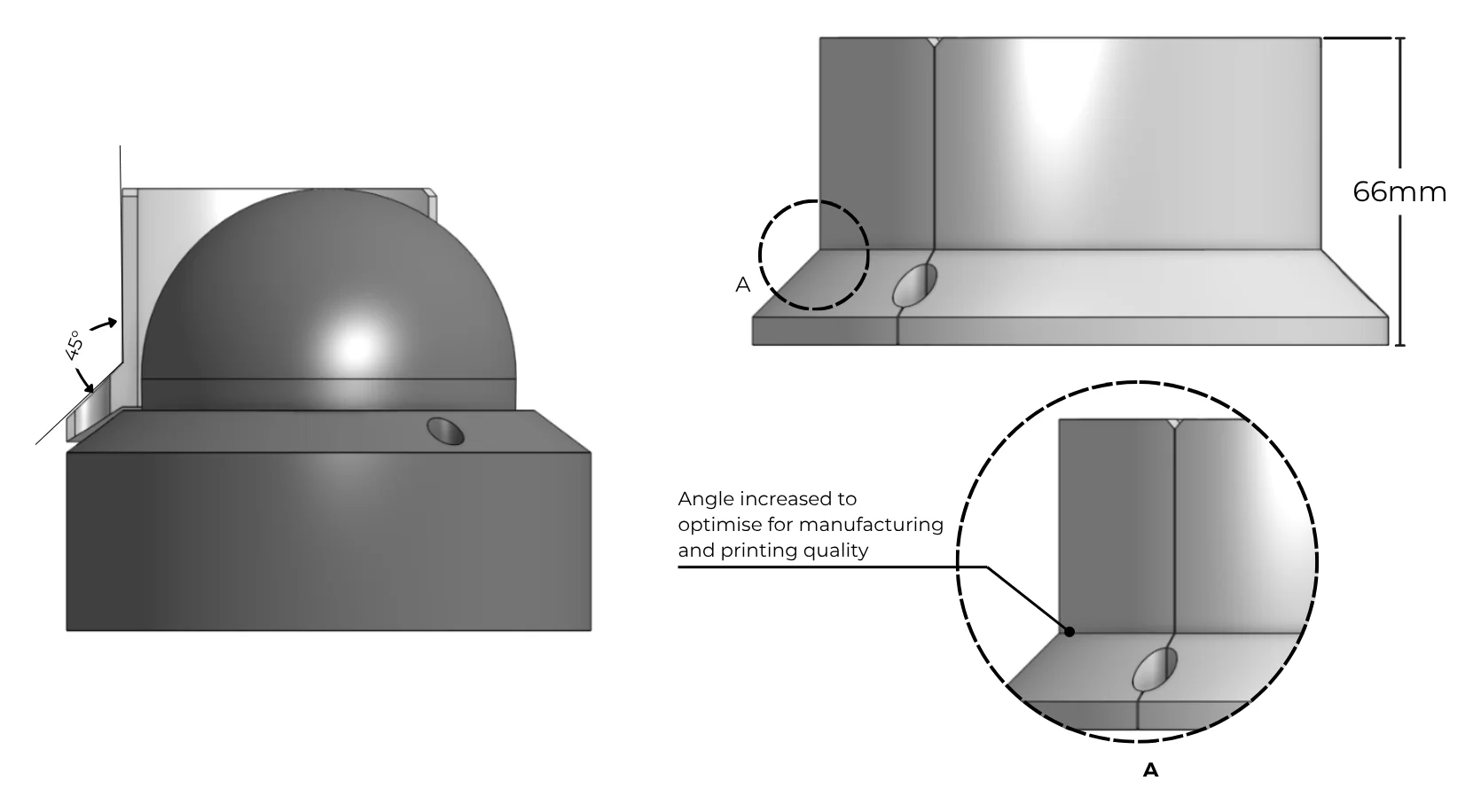

DrawingA 45° foot prints cleaner.
-

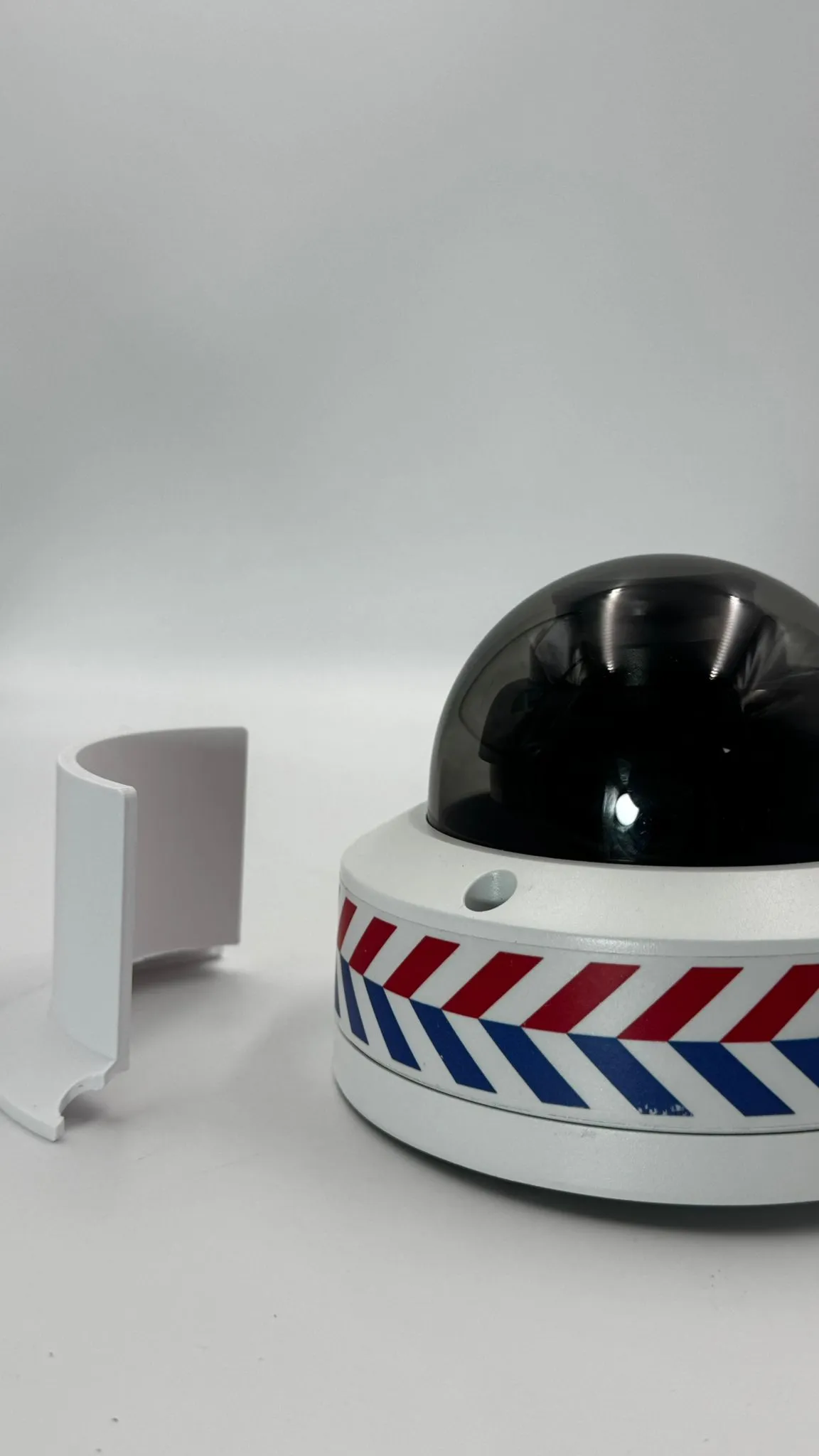

ProductionA printed segment beside the camera.
-

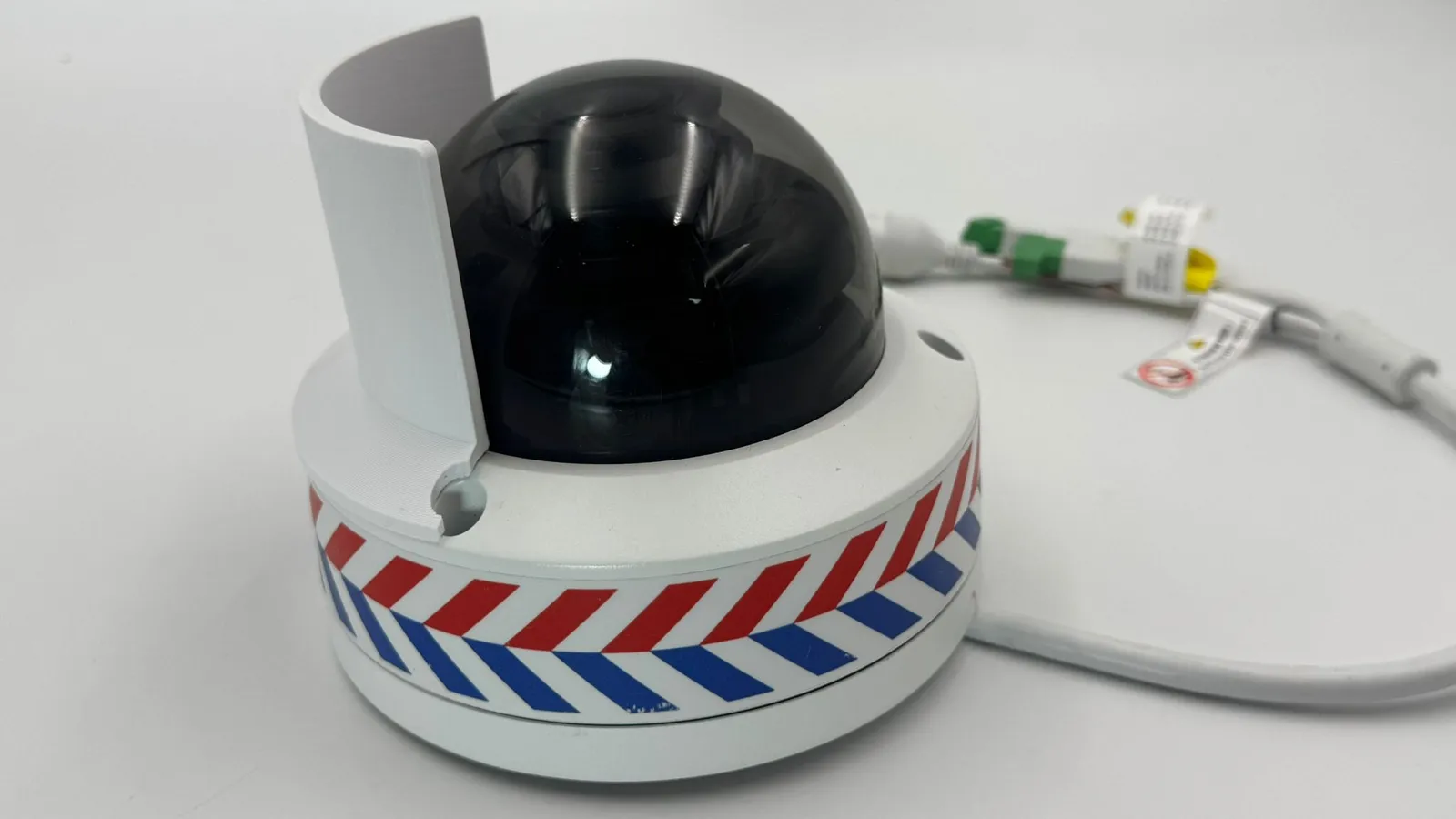

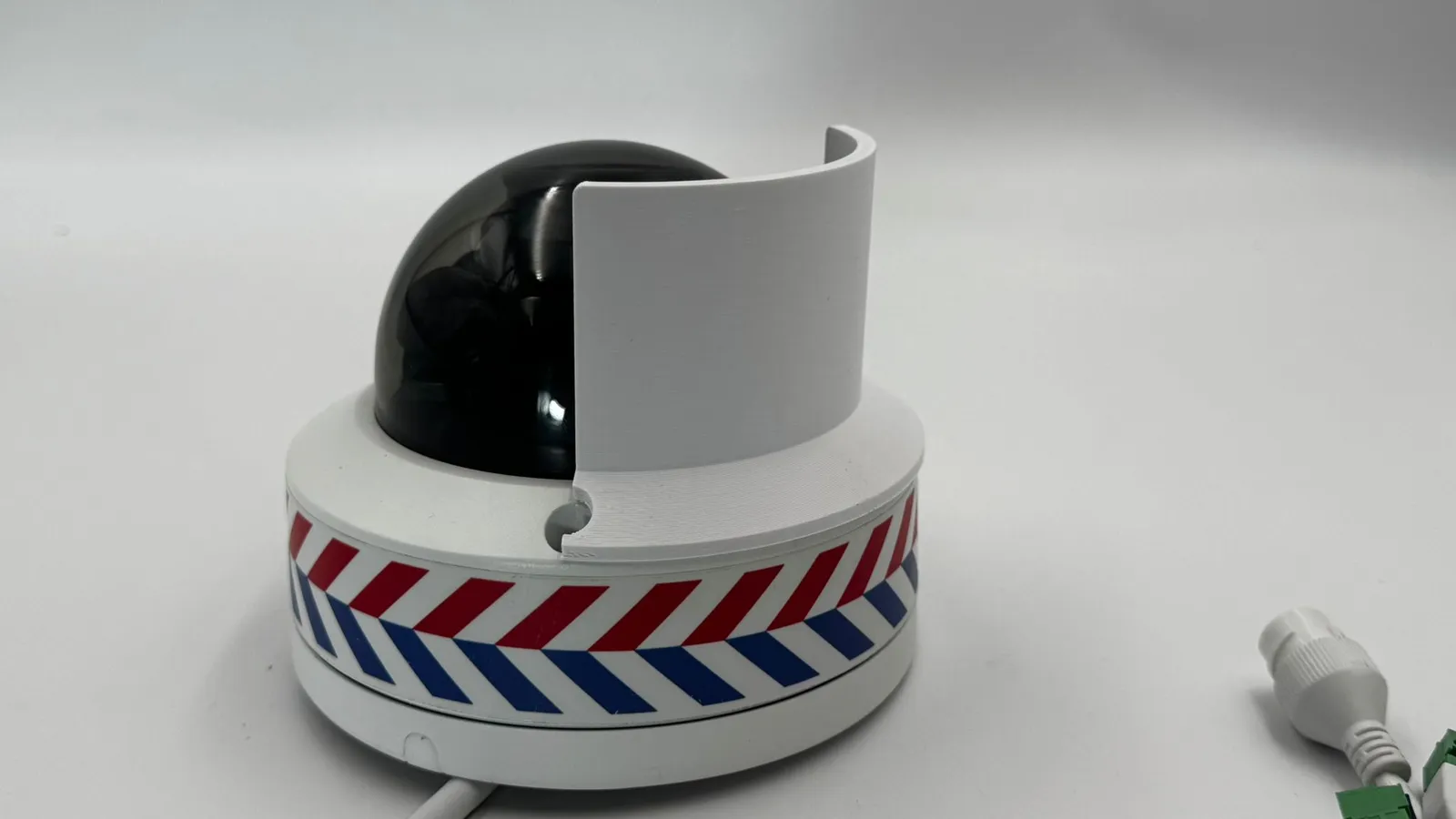

Build & assemblyFitted, with the screw hole clear.
-

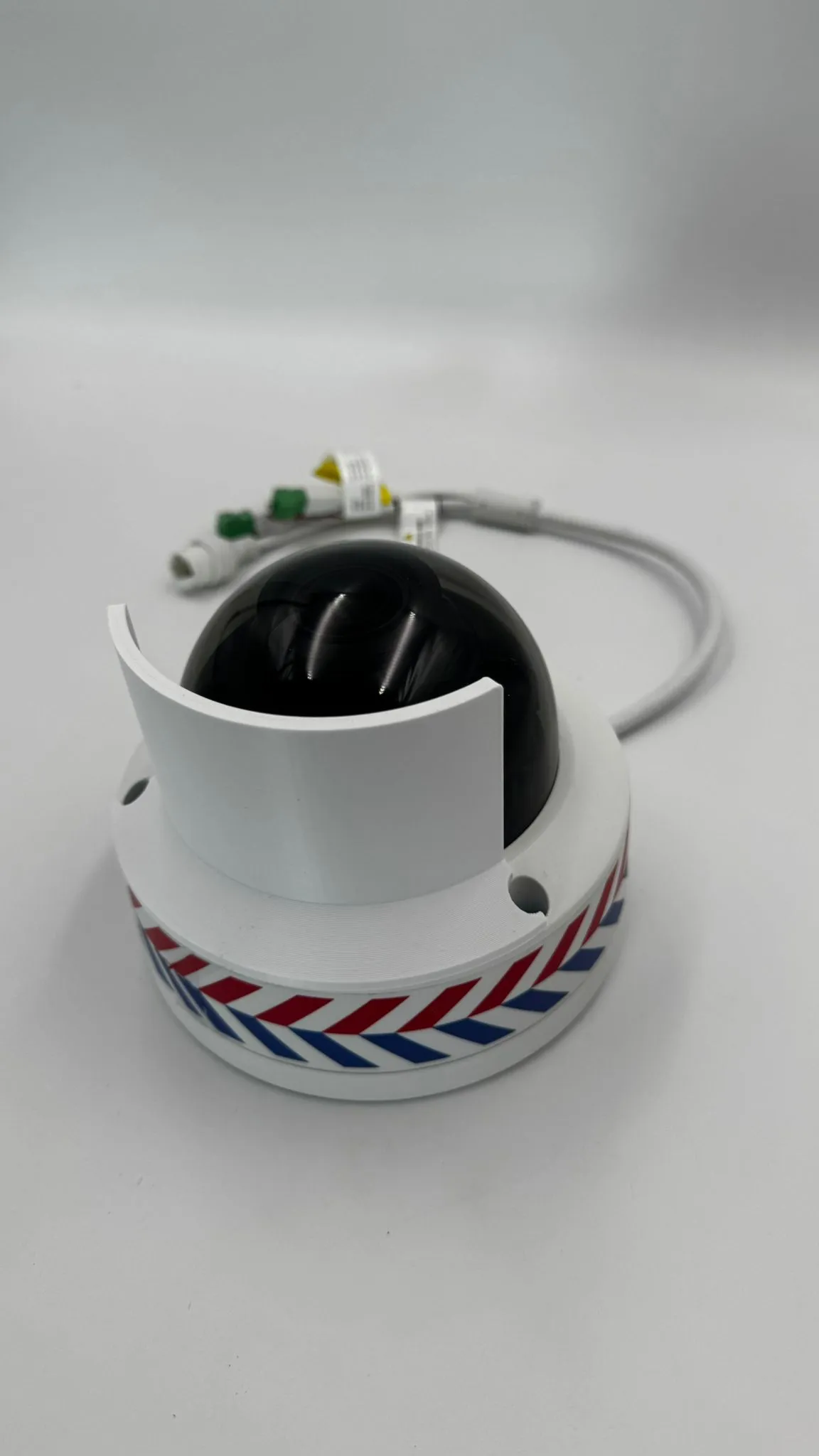

The shield wrapped round one side.
The build
How we built it
6 steps, from the brief to the finished piece. Pick a step to jump to it.
The brief
Step 1 of 6 · 19/03/2026
- Starting point
- The camera itself, with no drawings
- Scope
- A 3D design made for manufacturing, with two rounds of changes
- Sample
- One printed sample to try on the camera
At Additive Inn, our 3D printing studio in Singapore, we designed a privacy shield for a dome security camera for Fonda Global Engineering. Fonda brought the camera to our studio and needed a cover that blocks part of its view.
Concept
Step 2 of 6 · 26/03/2026
After meeting Fonda's team at our studio on 24/03/2026, we modelled the camera and a first idea: a curved wall standing on a ring that sits on the camera's base.
Design & prototyping
Step 3 of 6 · 31/03/2026
We drew the shield 66 mm tall around the dome, fixed with industrial double-sided tape so the camera needs no new holes. Fonda reviewed each round.
-

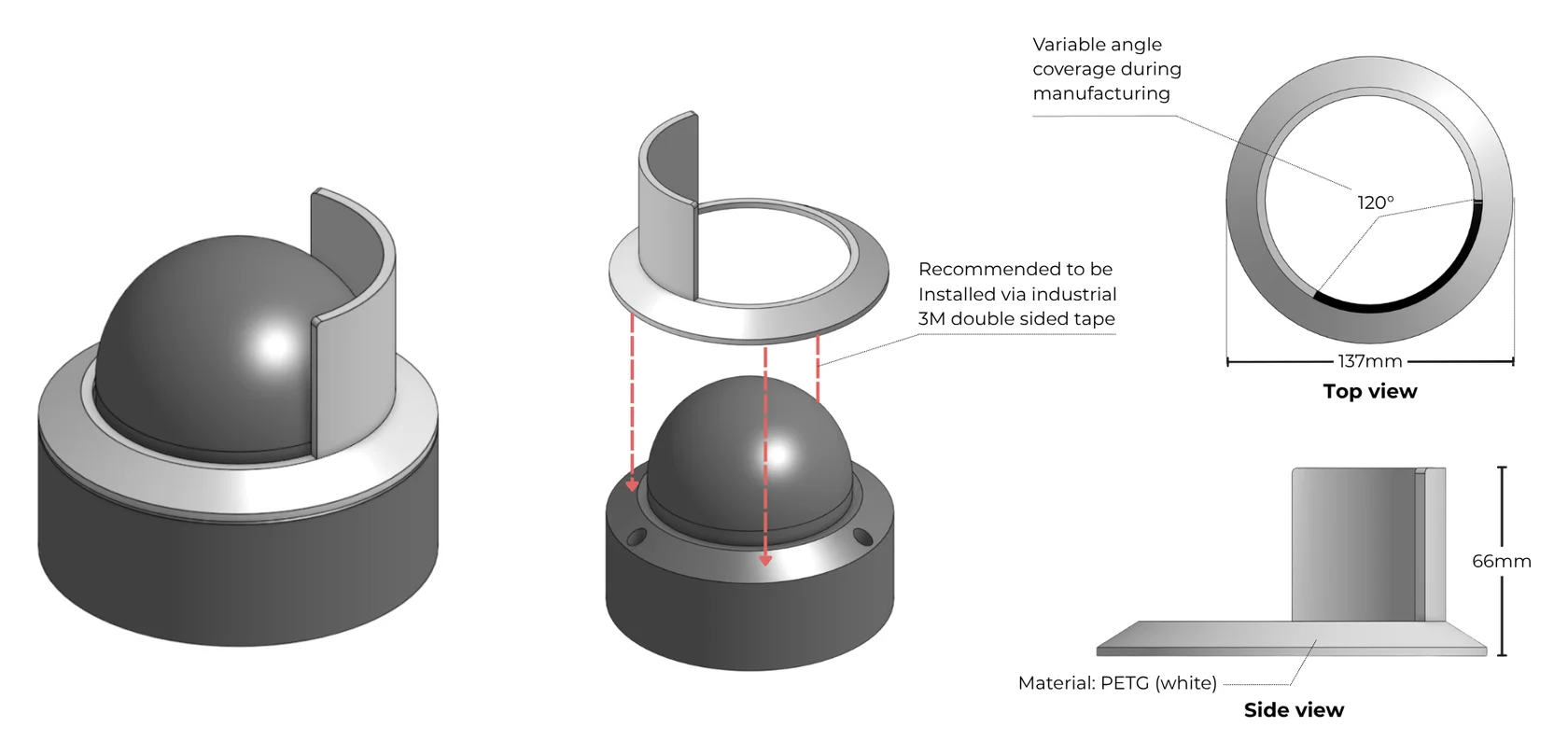

First design · 31/03/2026
A 137 mm ring under one 120° wall, taped to the camera's base.
Render
-

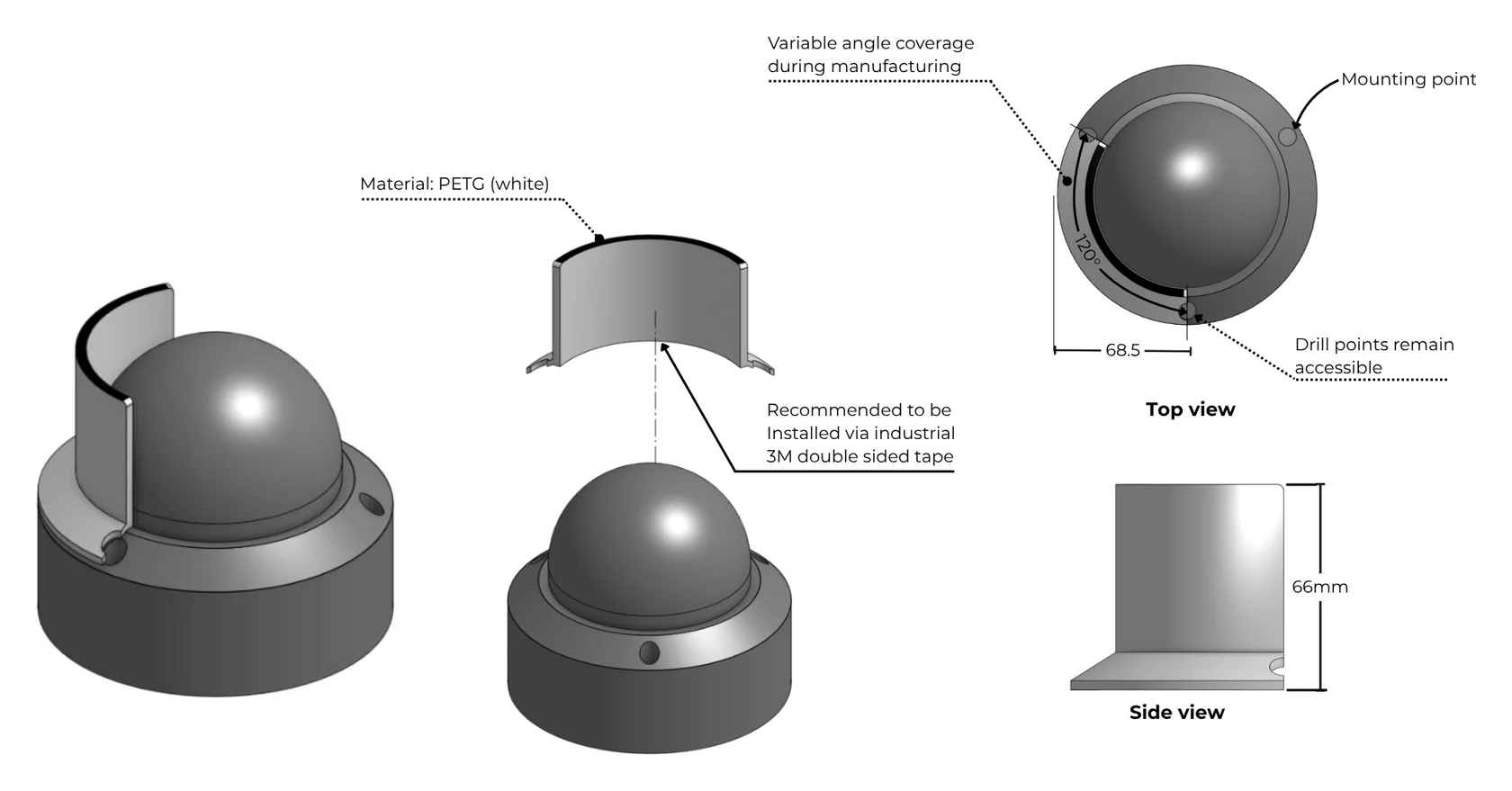

Second design
Separate 120° segments, one to three per camera, with notches that keep the screw holes clear.
RenderDrawing +2 more
Production
Step 4 of 6 · 20/04/2026
We 3D printed the sample segment in white PETG in our studio, with the foot angled at 45° so the joint between foot and wall prints cleanly.
Build & assembly
Step 5 of 6
We fitted the segment on Fonda's camera with its notch lined up on the camera's screw hole, so installers can still reach it. On site it fixes with industrial double-sided tape.
The final build
Step 6 of 6 · 27/04/2026
Fonda reviewed the printed sample on the camera at our studio on 27/04/2026. One segment shades 120° of the view; two or three cover more, from the same printed part.
More product development
See all product development →-

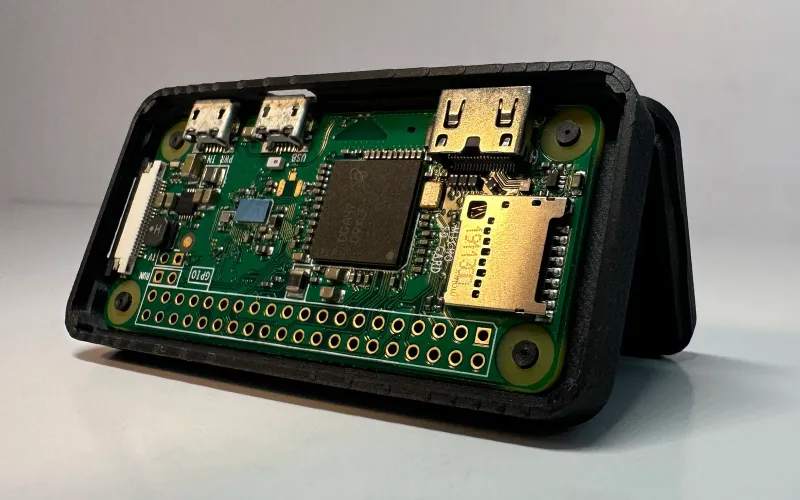

SMARTER AI Raspberry Pi Zero Enclosure for SMARTER AI A slim, close-fitting case for SMARTER AI's Raspberry Pi Zero, 3D printed in black with the company's name across the lid. -

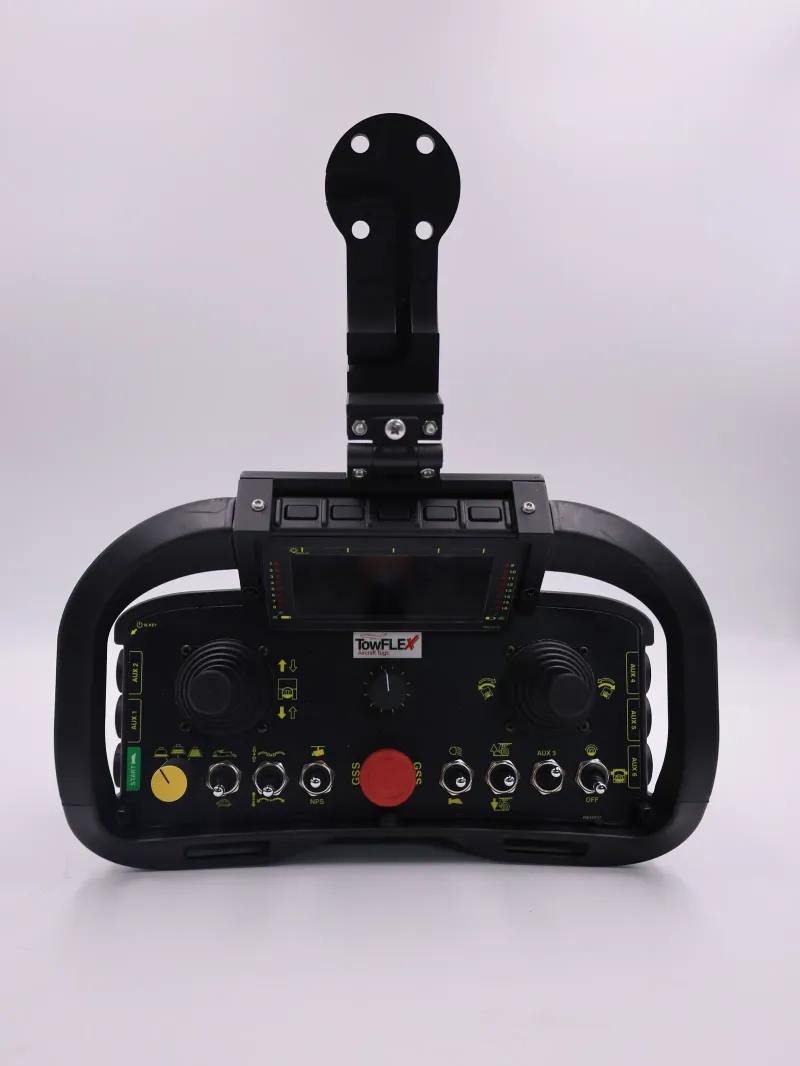

Sanxing Quick-Release Tablet Mount for a Remote Controller A quick-release mount that carries a tablet screen above Sanxing's handheld remote controller, designed around the real controller and 3D printed in carbon-fibre PETG. -
