Custom 3D printed brackets and fittings
Small made-to-order parts from separate jobs: a wall bracket and clip, a flanged pipe elbow, a bent bracket, a support arm and a tray.
- Service
- Industrial 3D Printing
- What it is
- A handful of small jobs, shown together
- How they were made
- FDM 3D printing, one part at a time
- Photographed
- In our studio on 01/03/2023
What we brought
What we can do
One-off parts, printed to shape
We printed a wall bracket and clip, a flanged pipe elbow, a bent bracket, a support arm and a tray.
How we look after you
Holes and flanges in the print
Bolt holes, the elbow's two-hole flange and the clip's centre hole are all part of the printed shape.
What you get
Small jobs, made with the same care
Each part was printed in our studio, however small the order.
Gallery
The whole project at a glance. Drag or swipe to browse; tap a picture to enlarge it.
1 / 16
-
The finished piece
-

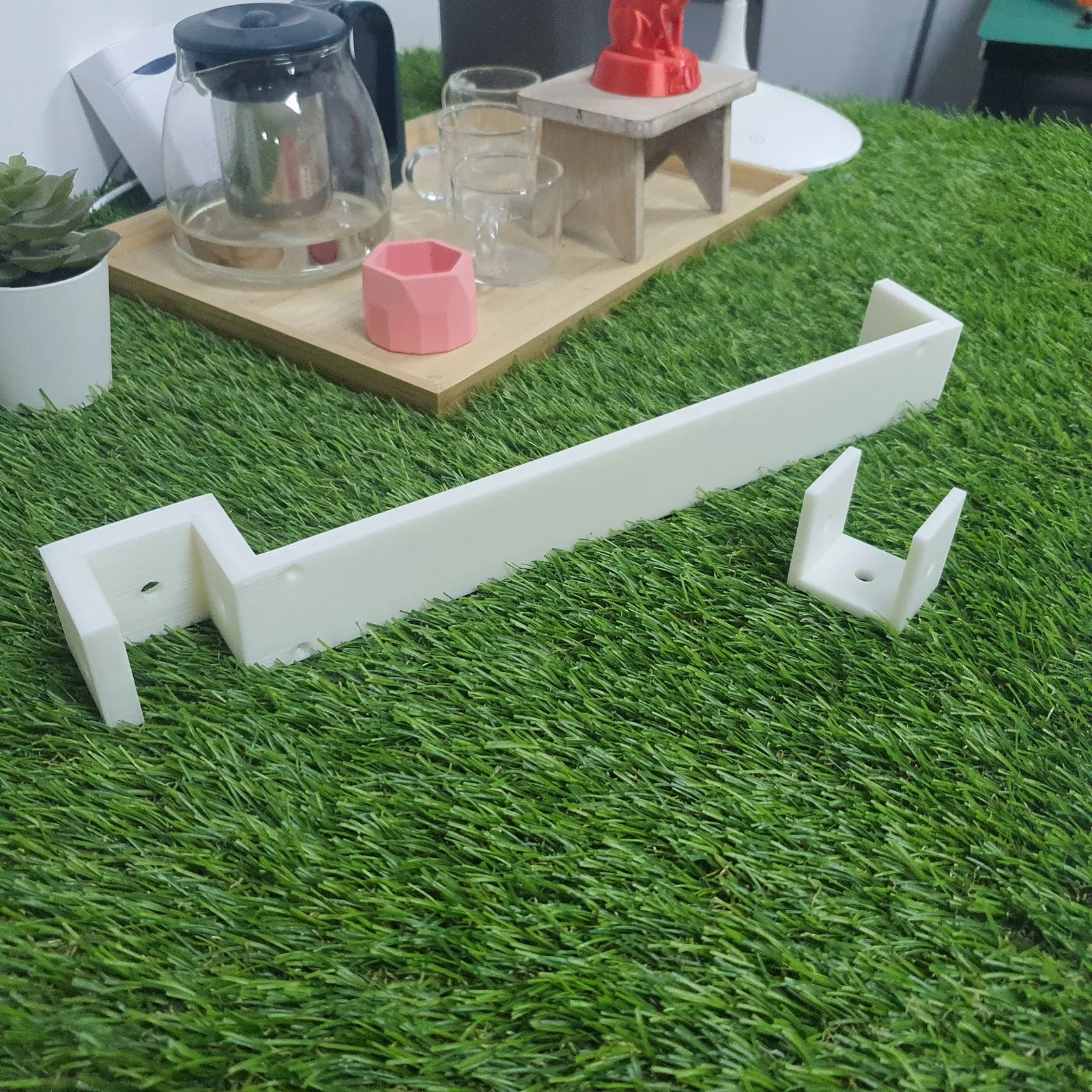

A long wall bracket and its clip.
-
A bracket on the grass.
-
The microphone, shock mount and rings.
-
The knurled ring holds it from below.
-
Back in its shock mount.
-
The print paused, the first two nuts in.
-
All four nuts seated before printing resumes.
-
Finished frames, the nuts hidden inside.
-
The dome beside the ring it fits.
-
Seated inside the cage.
-
From below, filling the ring.
-
The housing and the dome.
-

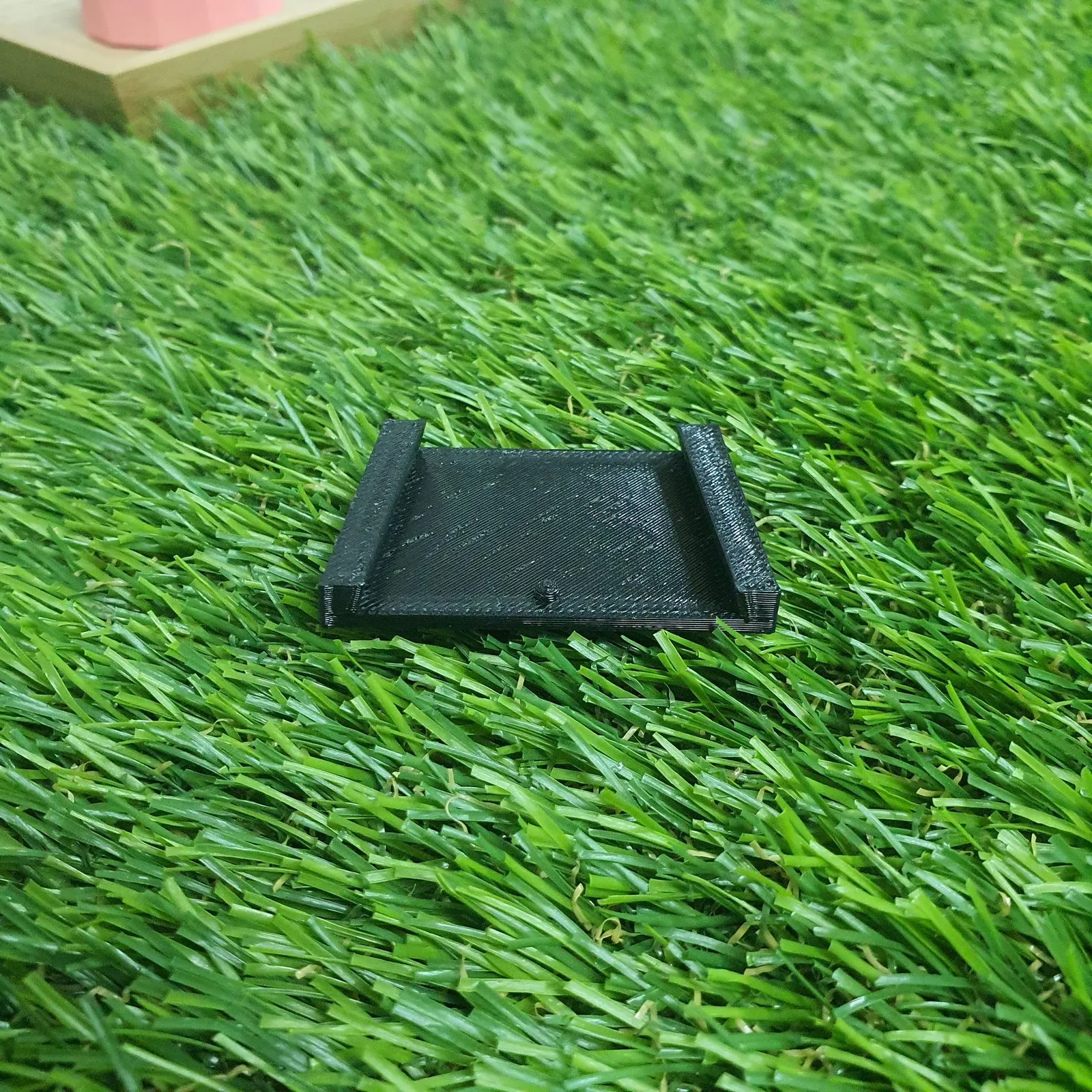

ProductionA small black tray with raised edges.
-

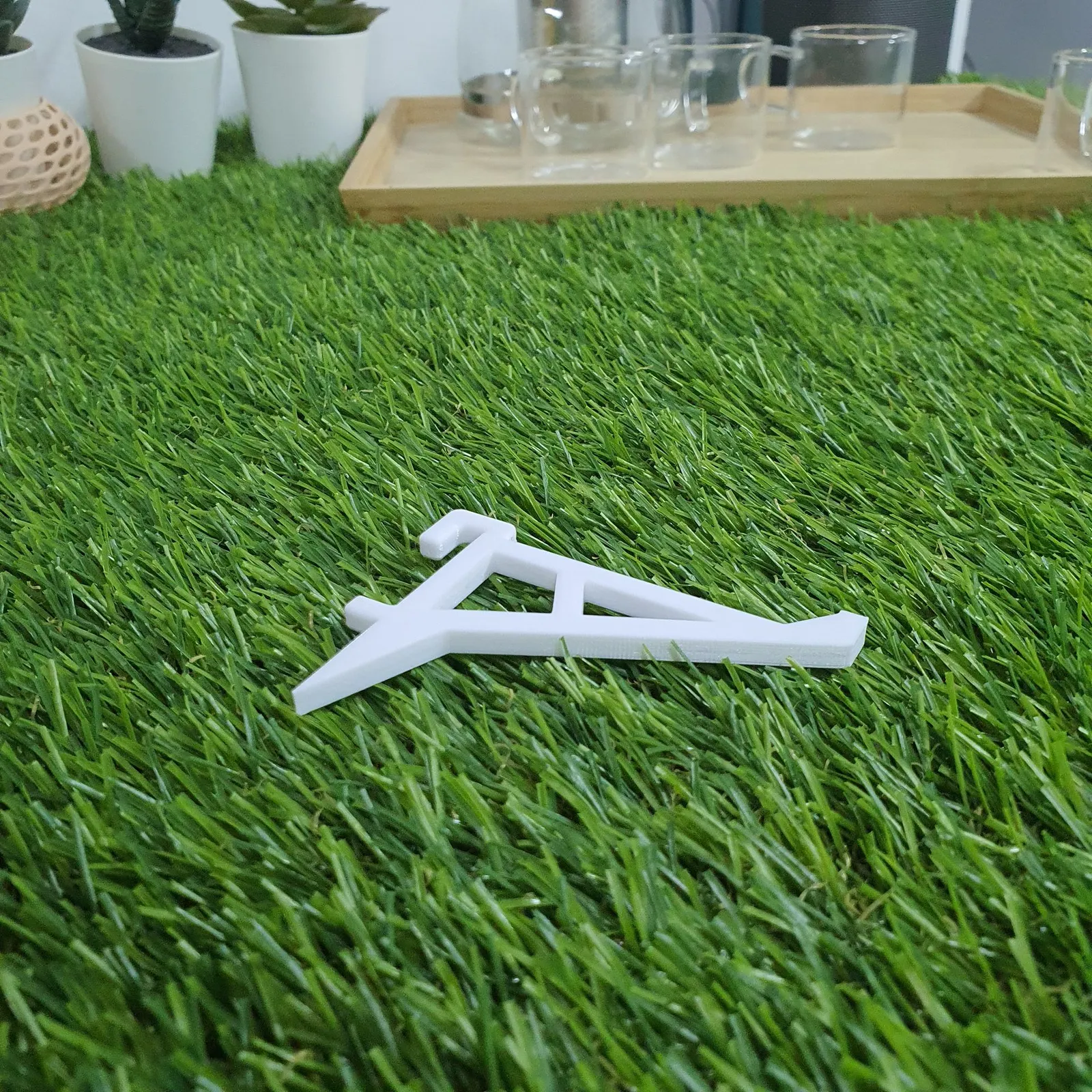

A white braced support arm.
-

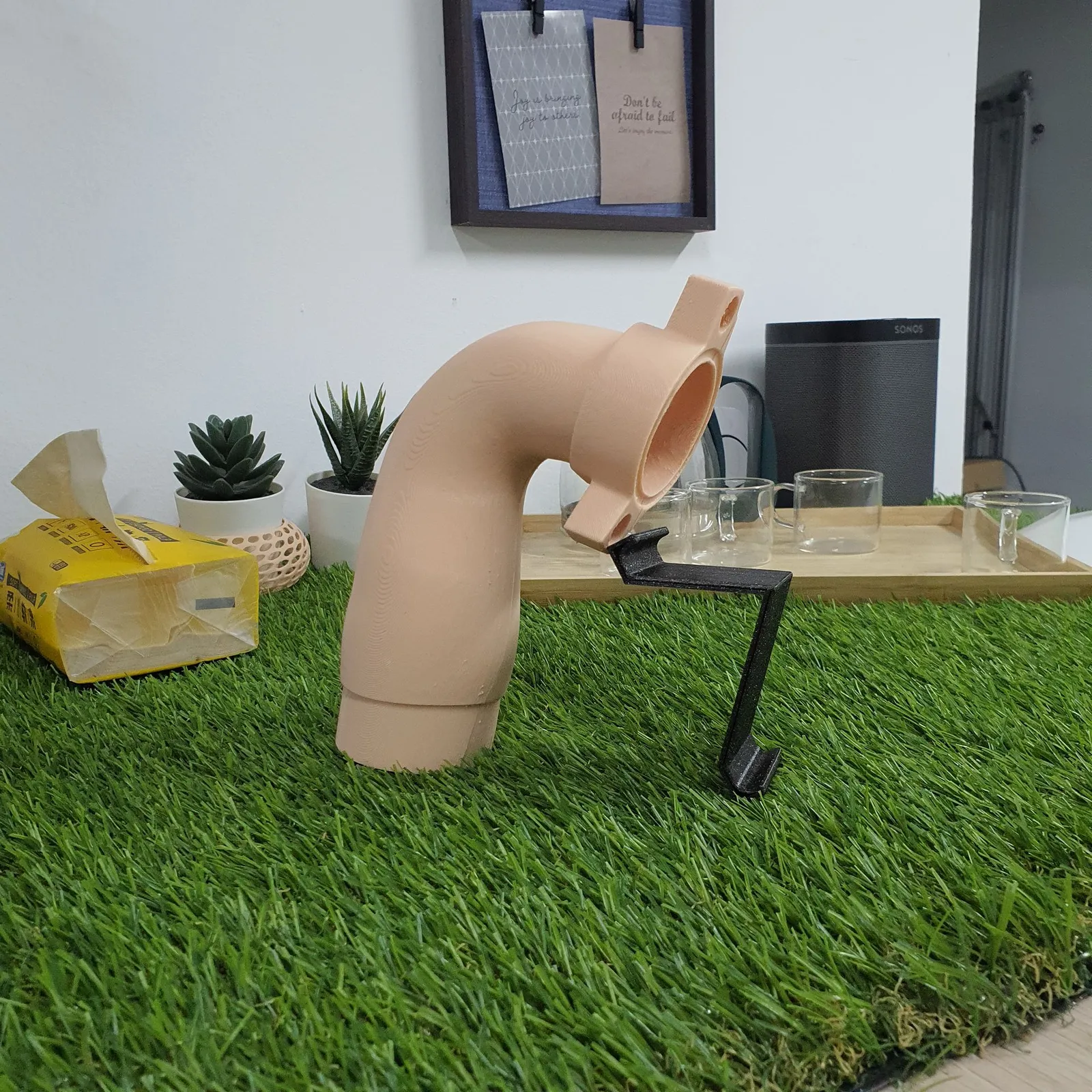

In the studioThe elbow resting on the black bracket.
The build
How we built it
4 steps, from the brief to the finished piece. Pick a step to jump to it.
The brief
Step 1 of 4
At Additive Inn, our 3D printing studio in Singapore, we make small functional parts to order. This page brings together several separate jobs from early 2023, each for a client who needed one part shaped to fit.
Production
Step 2 of 4
We 3D printed each part by FDM, layer by layer, in black, white or beige plastic. The holes, slots and flanges were printed as part of each shape.
In the studio
Step 3 of 4
We photographed the parts in our studio. Here the beige elbow rests on the bent black bracket.
The final build
Step 4 of 4
Each client received a finished part, ready to fit. The long white wall bracket and its matching clip show the kind of simple, sturdy part we print to order.
Microphone mount ring
- Part
- A threaded ring for a microphone shock mount
- Replacing
- The original metal ring, which was lost
- Material
- Black PLA
A private client lost the metal threaded ring that held their microphone in its shock mount, and sent us a photo of it on 31/08/2022. We designed a ring around the microphone's thread and printed it in black PLA on our FDM printers on 01/09/2022. The microphone's threaded base passes down through the shock mount and the knurled ring screws on from below to hold it. On 02/09/2022, two days after the enquiry, the microphone stood upright in its mount again.
Frames with embedded nuts
- The part
- A flat black frame with a rectangular opening
- Hardware
- Four metal nuts per frame, sealed in during the print
Flat black frames with a rectangular opening, each needing four metal threads for screws, two at each end. From 15/05/2023 we printed each frame with pockets sized for the nuts. Part way up, the print paused on the bed, the nuts went in one end at a time, and the print carried on to close the top layers over them. The finished frames, done on 08/06/2023, show only the screw holes: the nuts are locked inside, ready for screws, with nothing to glue or press in later.
Translucent yellow lens dome
- The part
- A translucent yellow lens dome
- Fits into
- A black housing with a ring and a cage
A translucent yellow dome to seat in a black housing, through its round ring and into its cage. The dome is open at one end and rounded at the other to match the opening. On 03/06/2025 we pushed it through the ring and into the cage, then turned the housing over to check it from the side and from below.
