3D Printed Bagel Mould and Cookie Stamper

A new mid-size bagel mould and four clear cookie stamps for Commonwealth Culinary Creations, designed from their line and 3D printed in Singapore.

Client
Commonwealth Culinary Creations
Made of
White PLA moulds; clear acrylic stamps with black printed handles and feet
Held together by
316 stainless steel M5 screws into nuts set inside the print
Started with
A visit to their bagel line on 06/02/2026
Start a prototype
Height of the bagel mould as designed, printed in two halves
478 mm
Bagel mould sets printed, medium and large
2
Cookie stamps made
4

What we brought

  1. What we can do

    Parts too tall for one print

    The 478 mm mould is printed in two halves and joined with stainless screws into nuts set inside the walls.

  2. How we look after you

    We start on your line

    We visited Commonwealth's bagel line before drawing, then reworked the stamp through four designs on their feedback.

  3. What you get

    A new size for the same machine

    A medium mould for the machine that runs their small and large ones, plus four clear cookie stamps.

The build

How we built it

5 steps, from the brief to the finished piece. Pick a step to jump to it.

The brief

Step 1 of 5

Machine
The same bagel line as their small and large moulds
Material
Their moulds are food-grade PE100. 3D prints are not food grade, so a food-contact mould would be vacuum cast or CNC machined
Site visit
On their bagel line, 06/02/2026
Also asked for
A cookie stamper with a clear acrylic disc

At Additive Inn, our 3D printing studio in Singapore, we designed a mid-size bagel mould and a cookie stamper for Commonwealth Culinary Creations. Their bagel line ran small and large moulds; they needed a medium one for the same machine.

Design & prototyping

Step 2 of 5

We modelled the mould from Commonwealth's measurements and our site visit. At 478 mm it is split down the middle so it can be printed, with nuts set into the walls. The stamp began as a 150 mm acrylic disc under a printed handle.

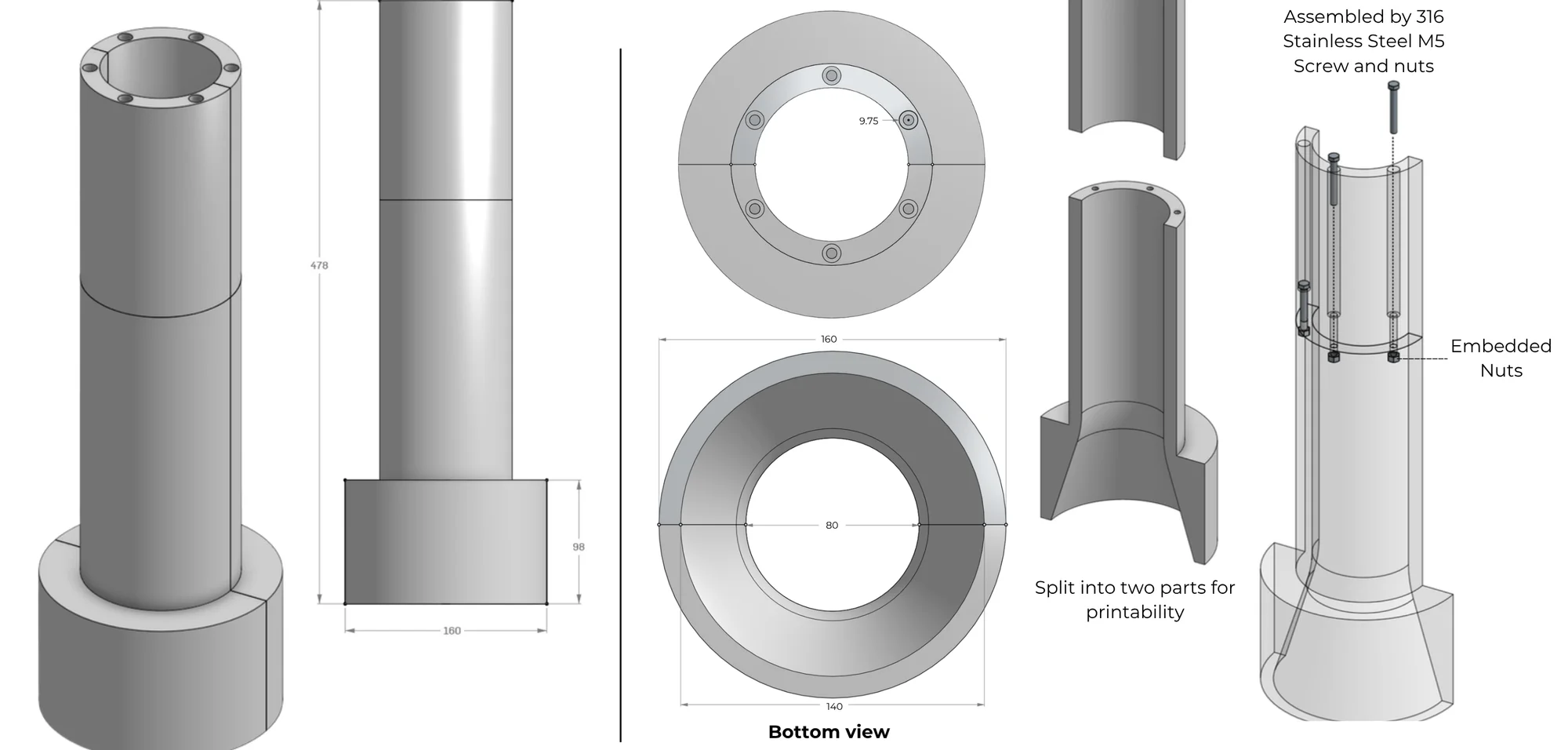

  1. First design

    The first mould design, split for printing.

    Render +1 more

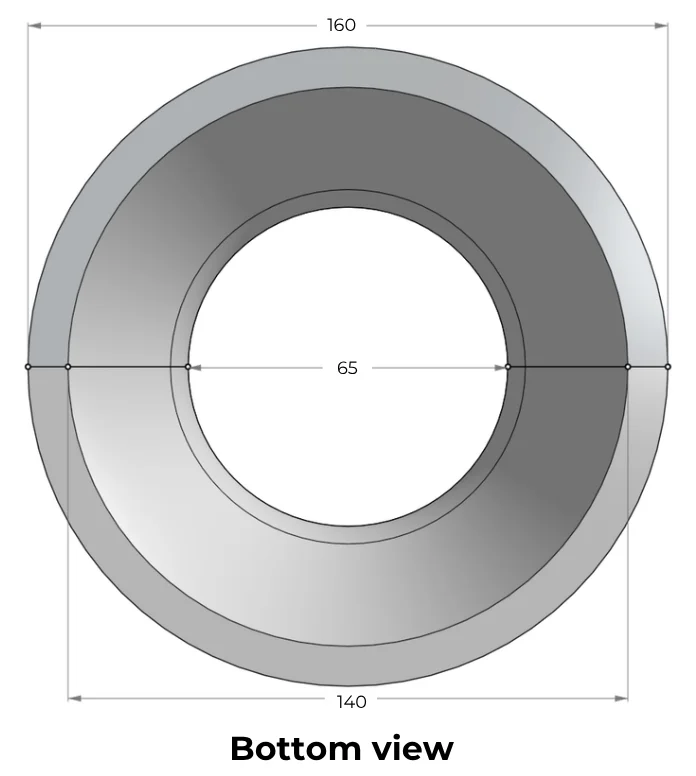

  2. Bagel mould, second design

    The opening at the base of the mould narrowed from 80 mm to 65 mm.

    Drawing

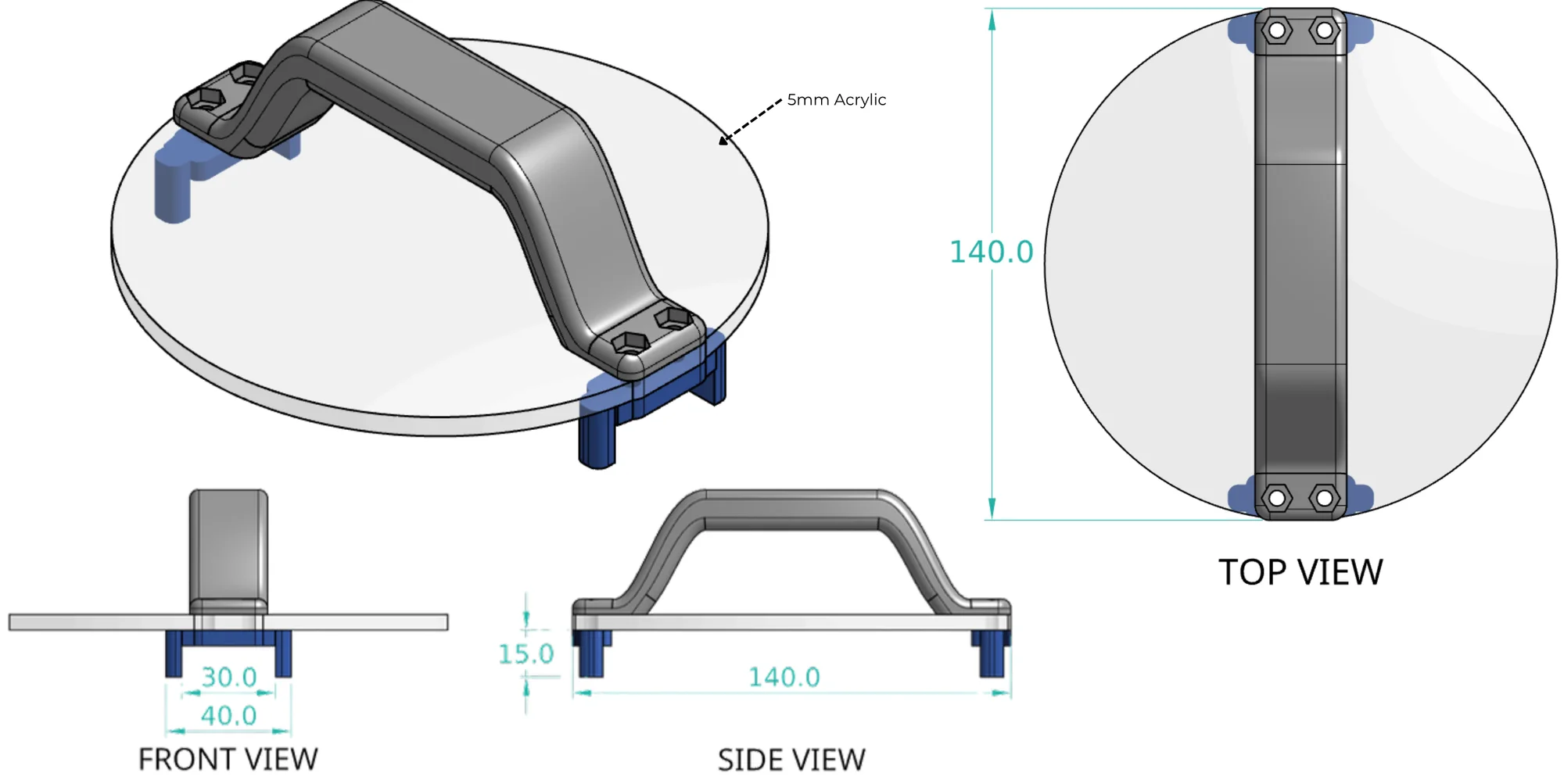

  3. Cookie stamp, second design · 25/03/2026

    The disc came down to 140 mm across, as Commonwealth marked up, on four short printed feet.

    Render

  4. Cookie stamp, final design · 27/03/2026

    Curved printed feet now follow the rim, and the handle screws through the acrylic into them.

    Render

Production

Step 3 of 5

The mould halves were printed in white PLA at 90% infill, one medium set and one large. The stamp handles and feet were printed in black, and the 5 mm discs cut from clear acrylic.

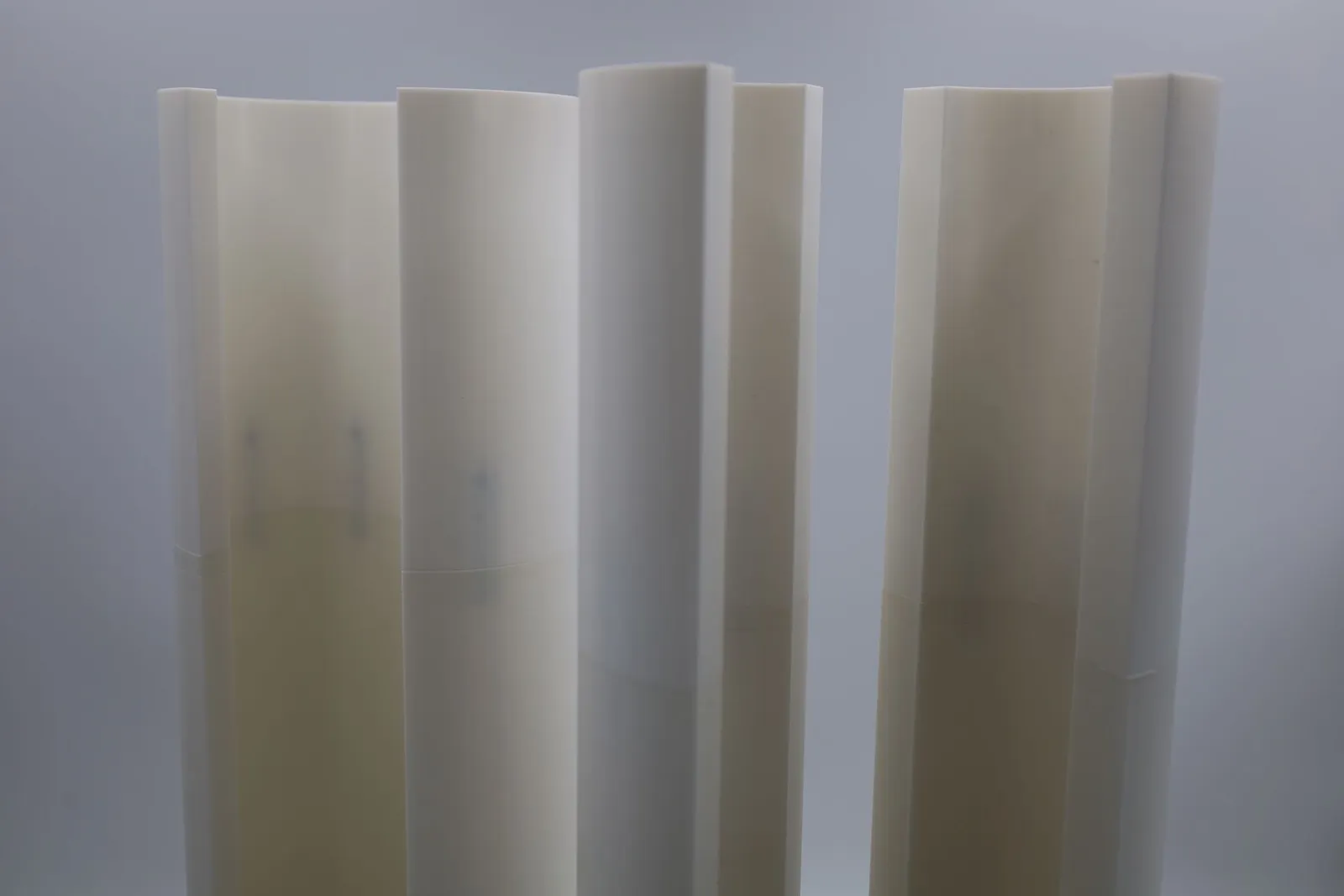

The printed halves before joining.

Build & assembly

Step 4 of 5

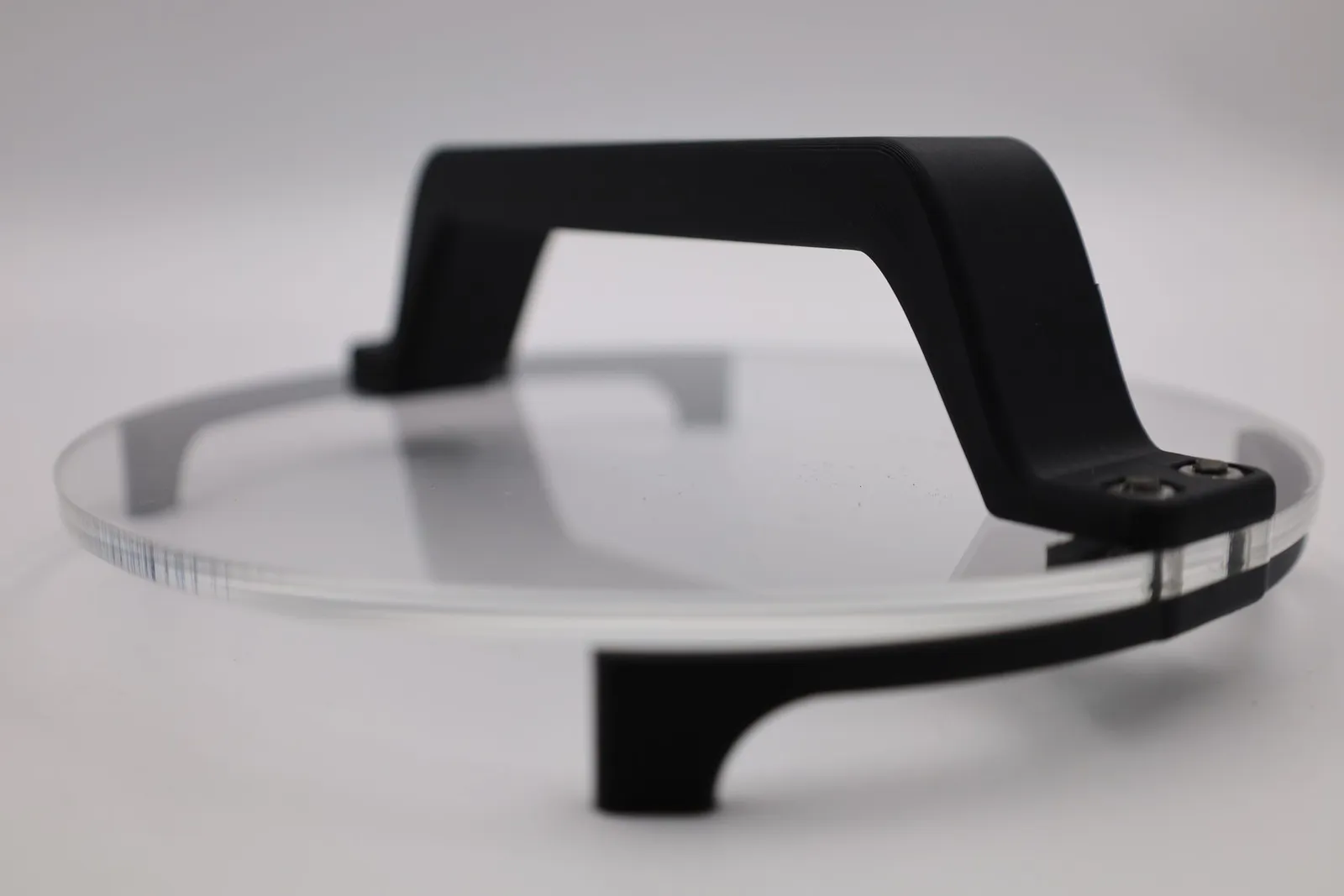

Each pair of halves was joined with 316 stainless steel M5 screws into nuts set in the print. On the stamps, the handle screws through the acrylic into the curved feet below.

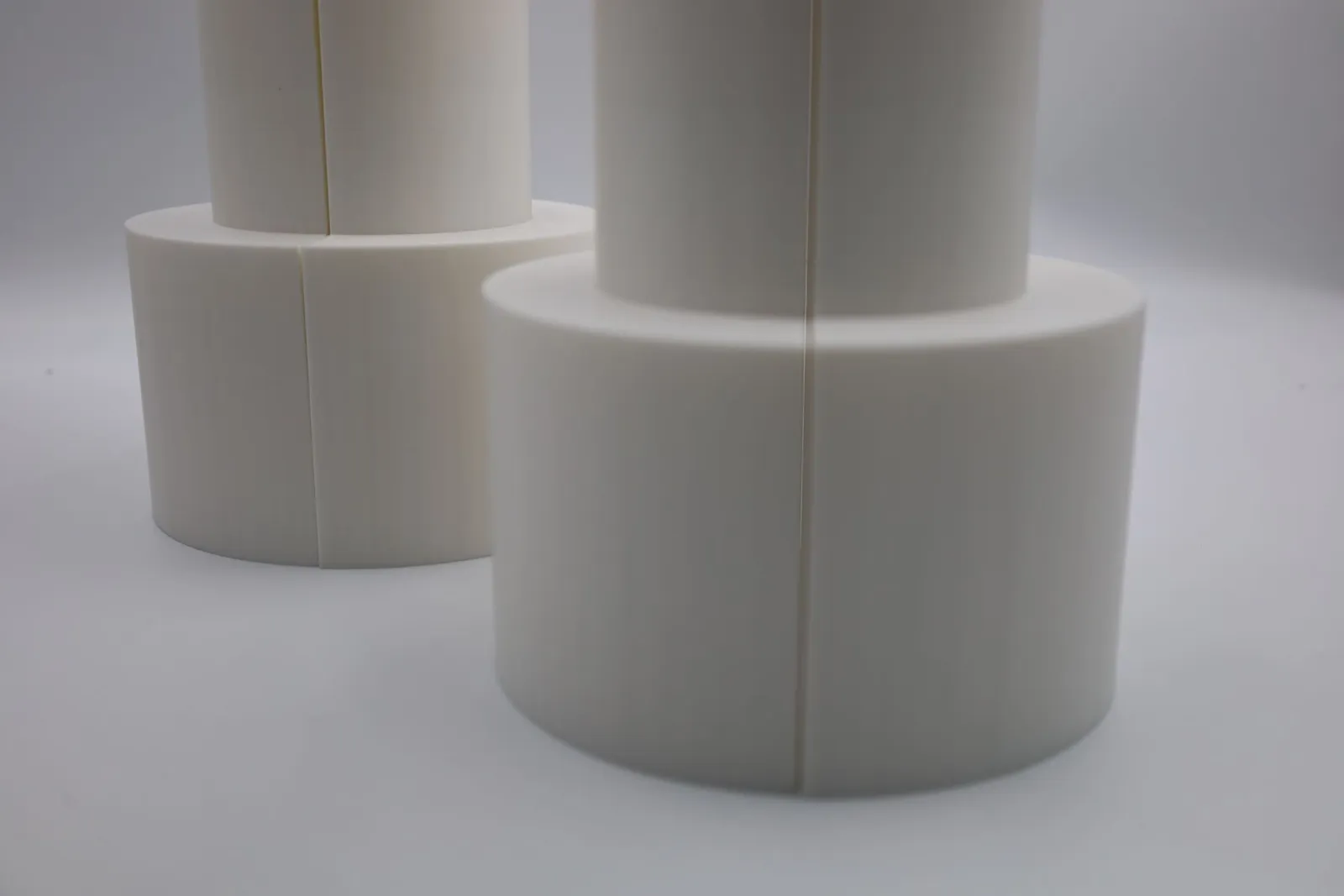

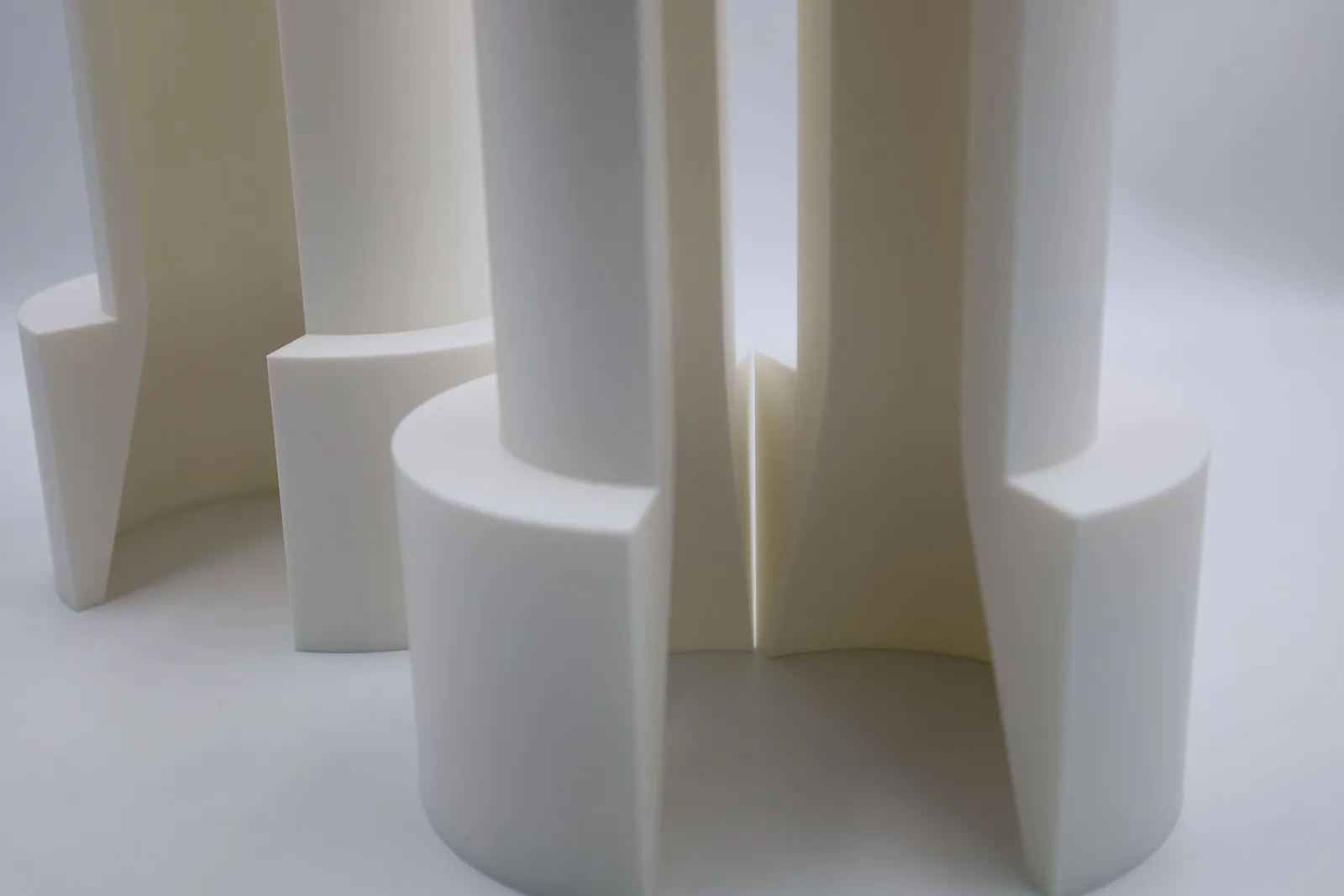

The funnel inside each base.

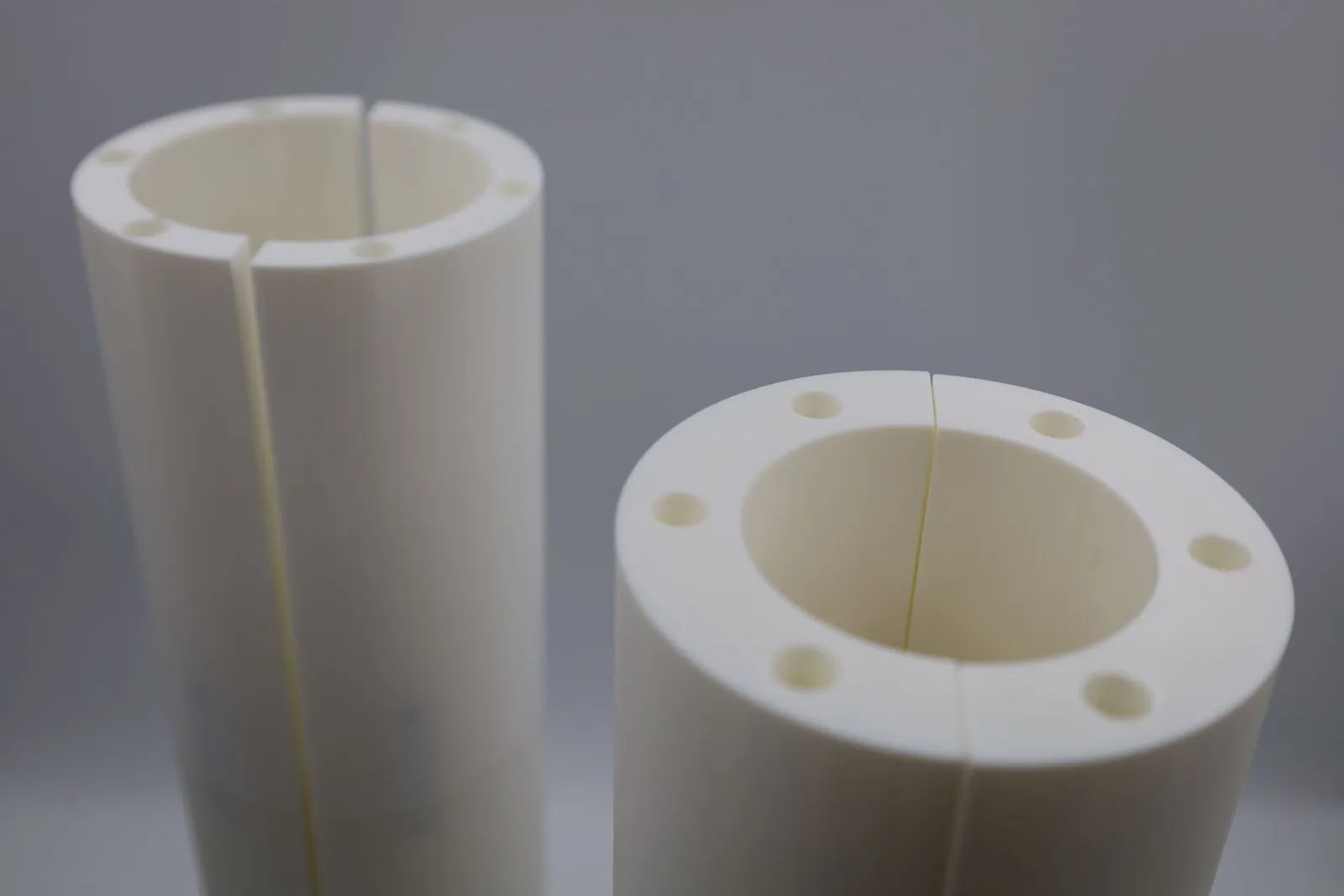

Screw holes around the top of each mould.

The final build

Step 5 of 5

Commonwealth Culinary Creations collected a medium and a large bagel mould and four cookie stamps, each a clear acrylic disc under a matte black handle.

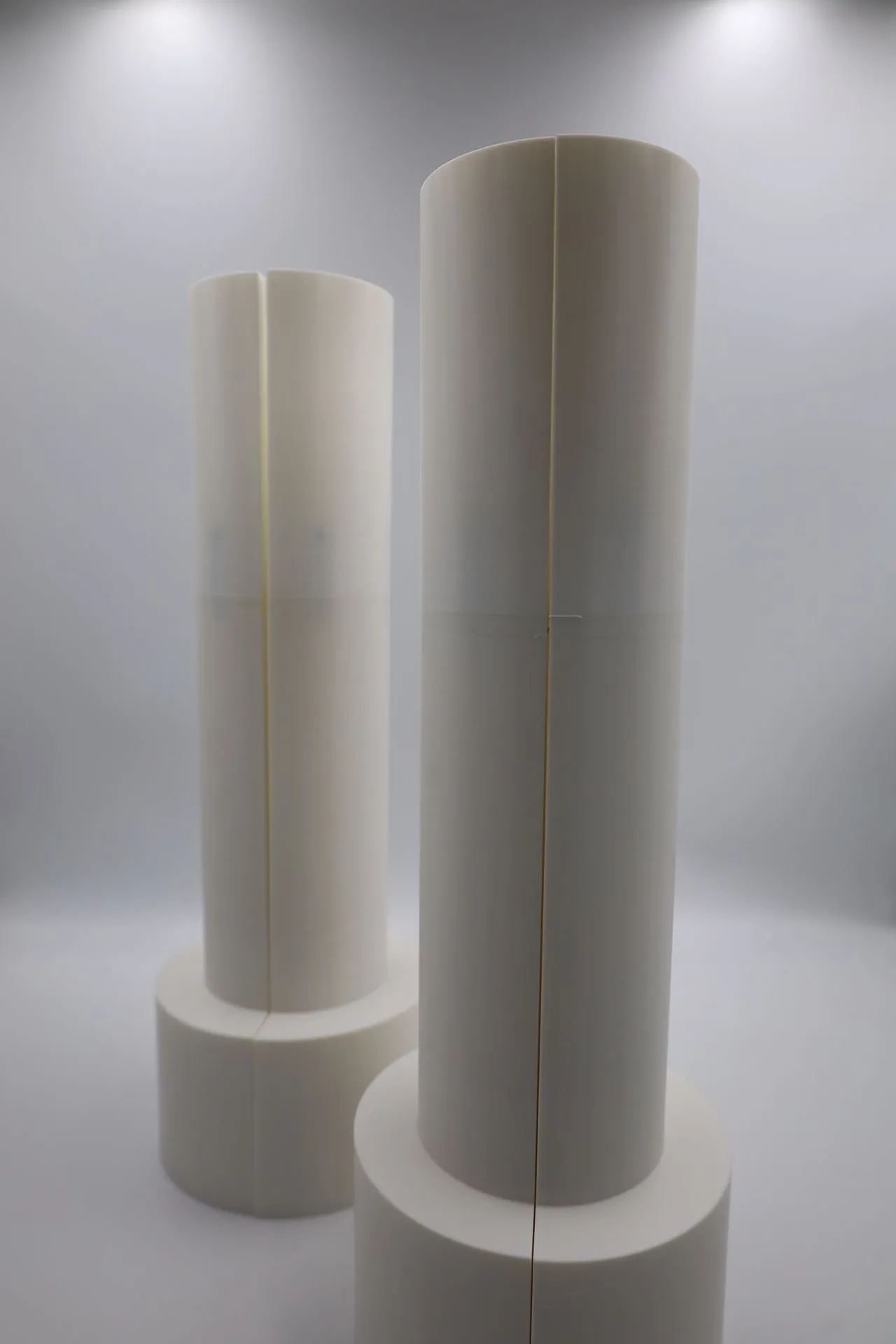

The two moulds, side by side.
