3D printed vertical wind turbine for an NUS student
A working vertical-axis wind turbine, modelled in 3D from a student's references and 3D printed, with a generator built into the hub.
- Client
- NUS student
- Started from
- The student's 2D references, modelled by us in 3D
- Moving parts
- Two bearings and a generator in the hub
- Made in
- PLA and PETG, printed on our FDM printers
- From the order on 14/03/2021 to the turbine turning on 05/04/2021
- 3 weeks
- Sets of blades, the second printed in PLA+
- 2
What we brought
What we can do
From a student's references to a working model
We modelled the turbine from their 2D references, designing in the generator, the bearings and a telescopic shaft.
How we look after you
Printed parts that fit real hardware
Every blade, arm and housing was printed on our FDM printers, sized to seat real bearings on a steel shaft.
What you get
Built to turn in real wind
The finished turbine went out to sea and turned in the wind, with a test meter held beside it.
Gallery
The whole project at a glance. Drag or swipe to browse; tap a picture to enlarge it.
1 / 11
-
The finished piece
-
Tested in the wind, out at sea.
-

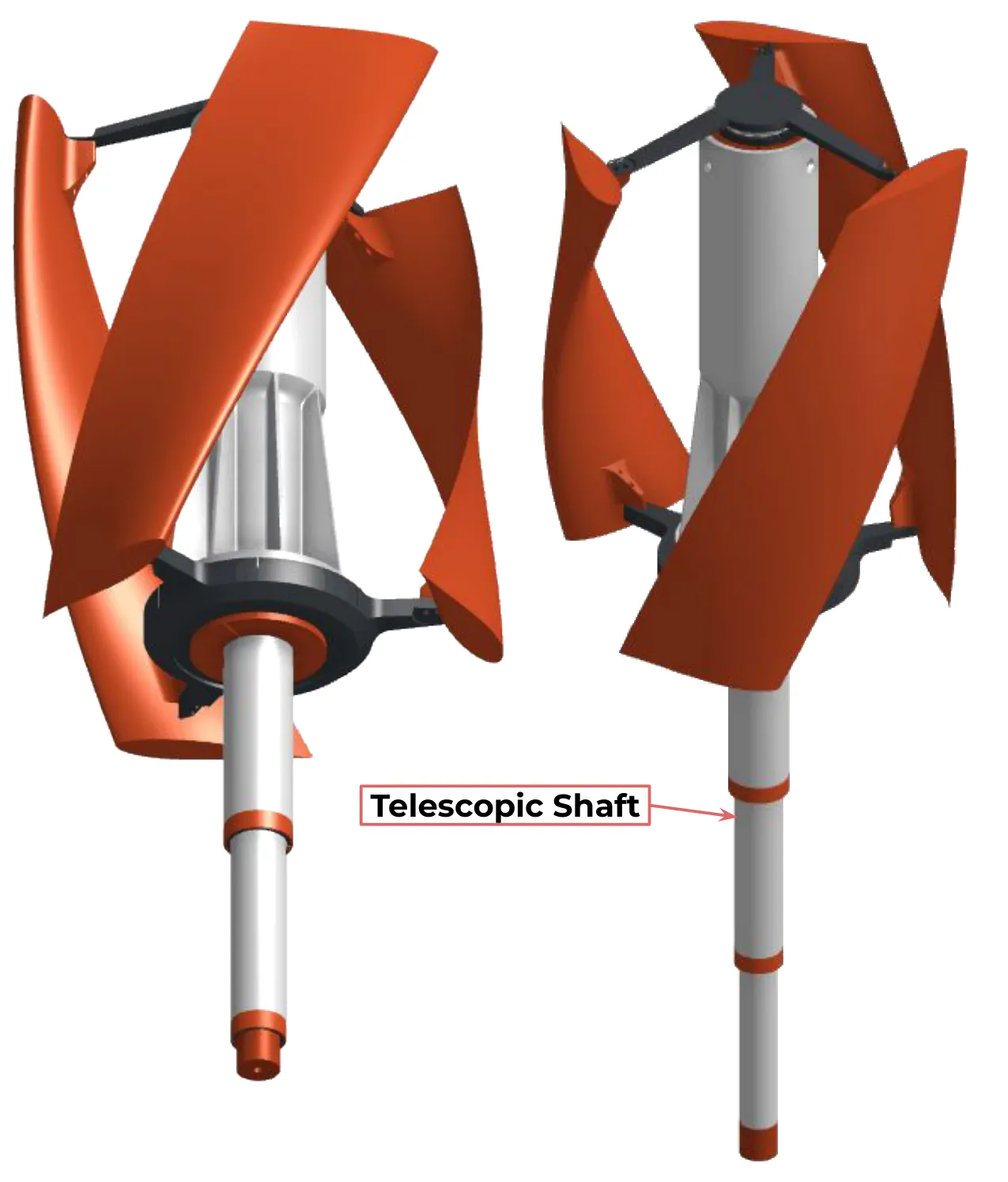

Design and prototyping · Revision 0RenderThe first design, from two sides.
-

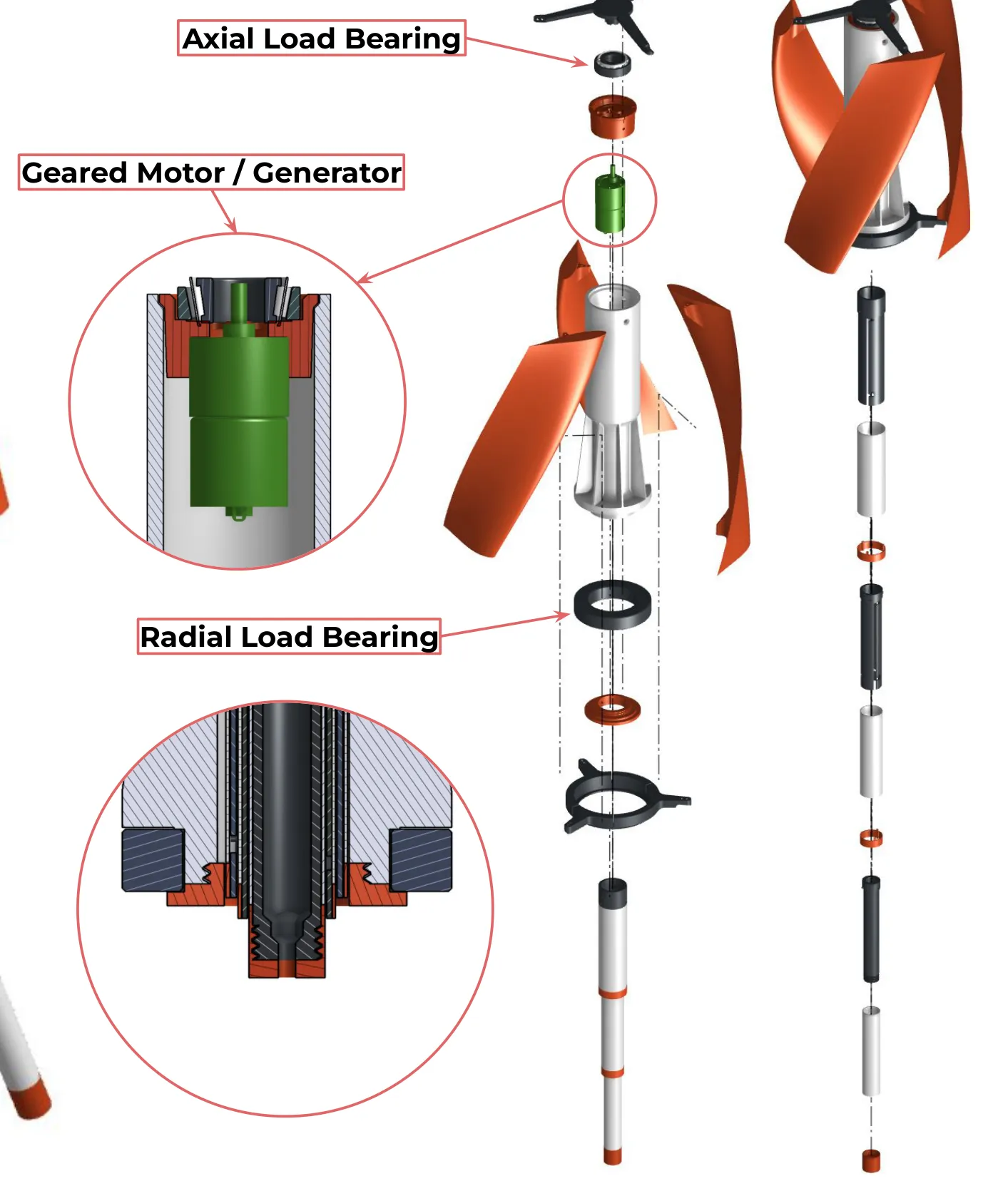

RenderInside, the generator and the base bearing.
-
RenderThree twisted blades around the hub.
-
ProductionThe hub body printing in one piece.
-
Telescopic shaft sections, fresh off the printer.
-
Build and assemblyFitting the generator into its housing.
-

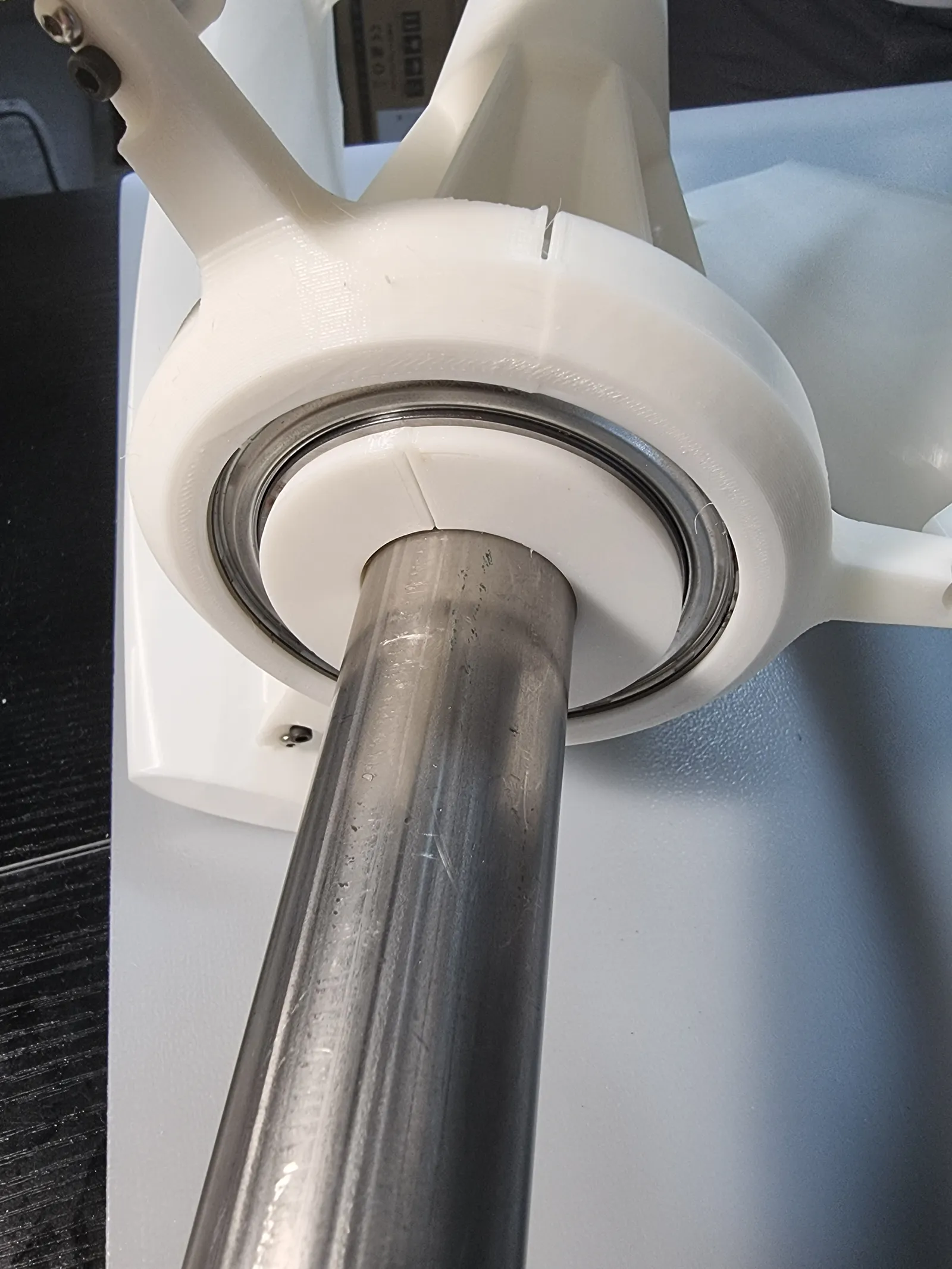

The base bearing on the steel shaft.
-

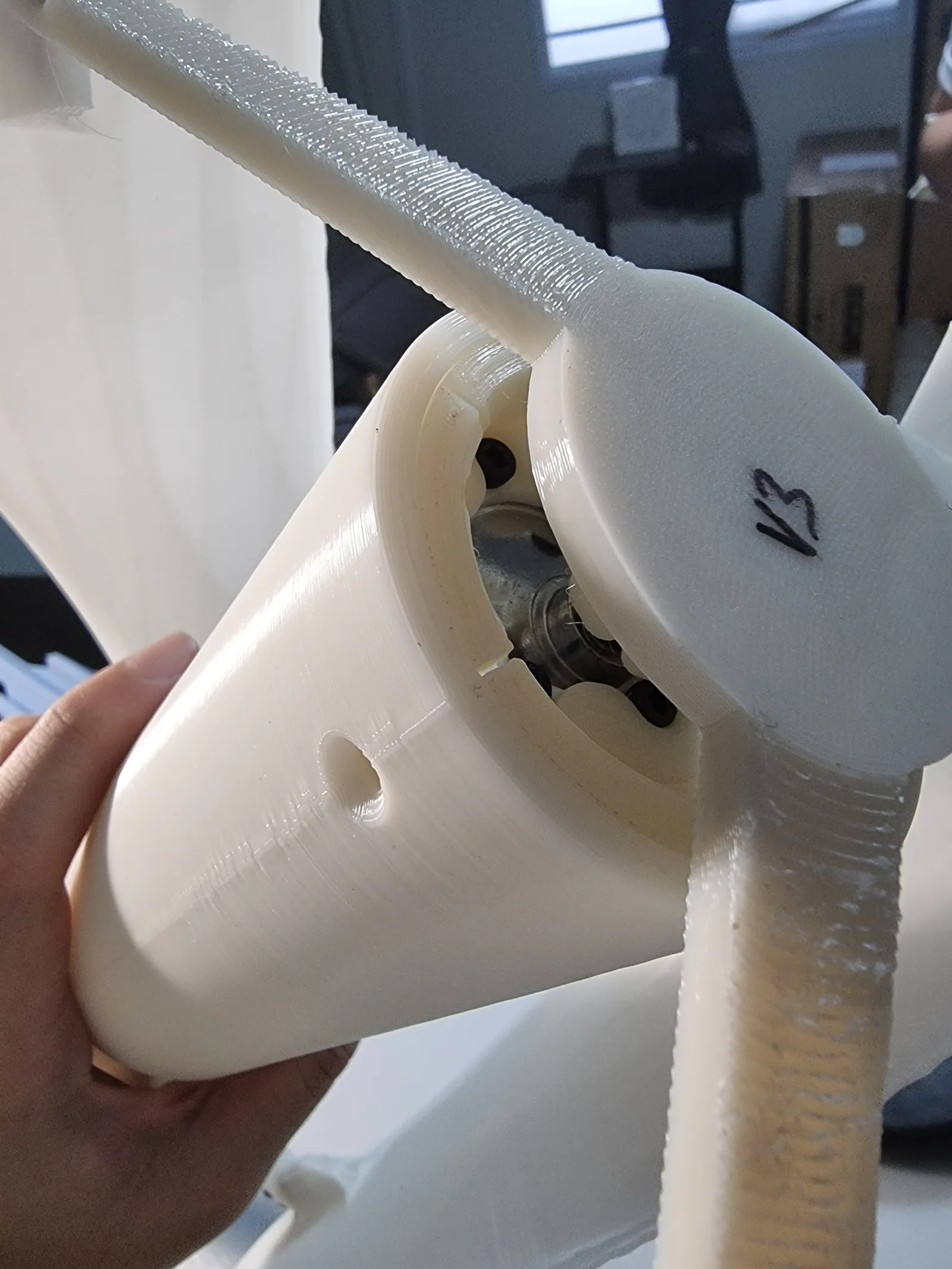

The hub cap, marked V3, with two arms.
-
Fully assembled, standing on the bench.
The build
How we built it
5 steps, from the brief to the finished piece. Pick a step to jump to it.
The brief
Step 1 of 5
At Additive Inn, our 3D printing studio in Singapore, we designed and 3D printed a working vertical-axis wind turbine for a student at NUS. The student brought 2D references and needed a model that turns in the wind and drives a small generator.
Design and prototyping
Step 2 of 5
We modelled the turbine in 3D: three twisted blades on arms, a geared motor in the hub as the generator, an axial bearing on top, a radial bearing below and a telescopic shaft.
-
Revision 0
The first design, from two sides.
Render
-
Revision 0
Cut-away views show the generator in the hub and how each bearing seats on the shaft.
Render +1 more
-
Blade revision · 02/04/2021
After the first build, we revised the blades and printed a new set in PLA+.
Production
Step 3 of 5
The hub, blades, arms and bearing housings were printed in PLA and PETG on our FDM printers, and the telescopic shaft sections in black. The tall hub body printed as one piece.
Build and assembly
Step 4 of 5
We pressed the bearings into their printed housings, fitted the geared motor inside the hub and slid the turbine onto a steel shaft.
The final build
Step 5 of 5

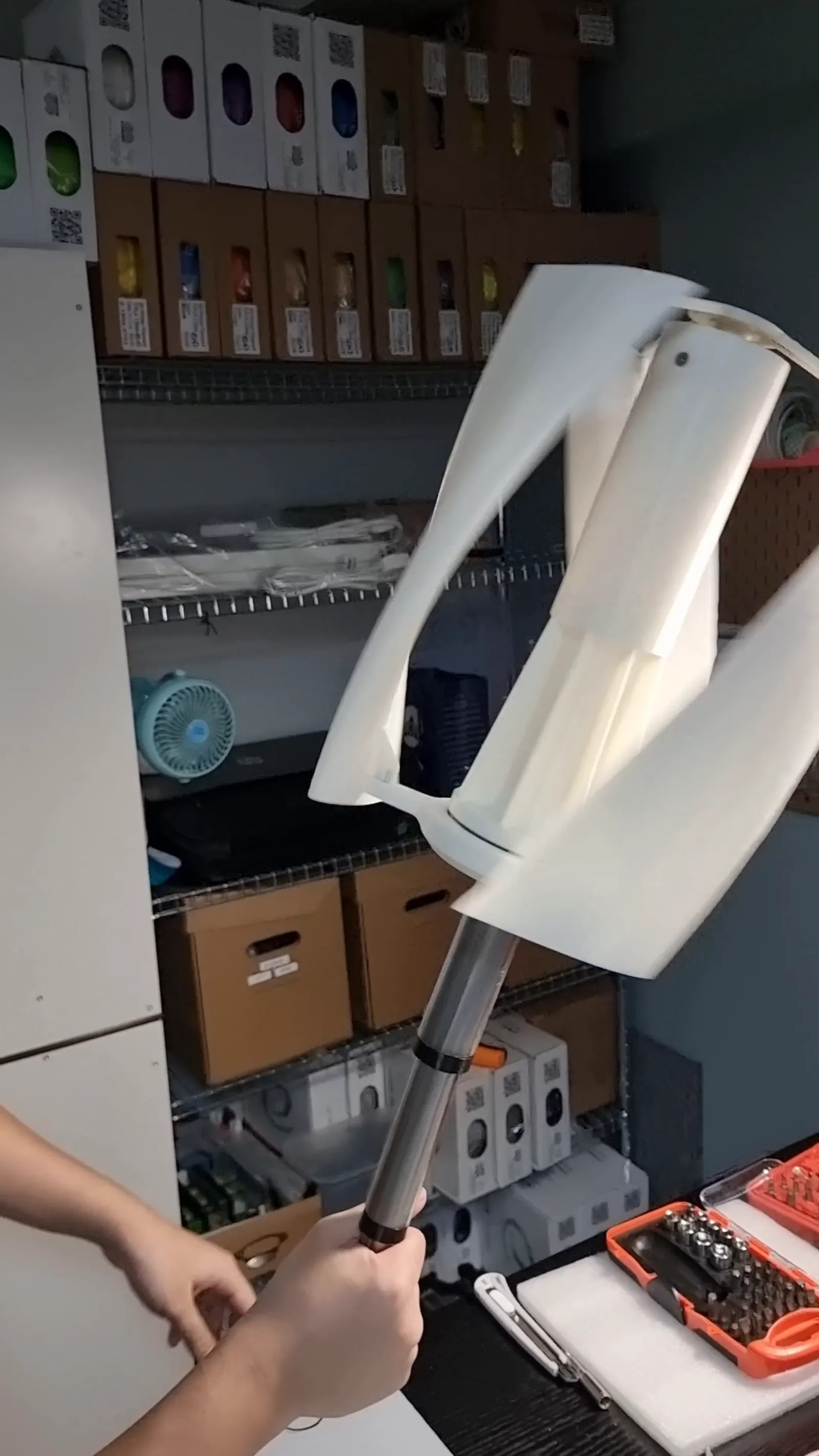

The finished turbine turned freely on its bearings in our studio. Out at sea, it was held up in real wind with a test meter beside it.
