CNC machined fuel filling lids for JFD
Fuel filling lids machined to JFD's own file, with a sample tested by their team before we made the batch.
- Client
- JFD
- Service
- CNC Machining
- What it is
- The top lid of a fuel filling funnel
- Cut into each lid
- A threaded centre bore, two side ports and four bolt holes
- Made in
- Black POM-C, left as machined
- A sample lid for JFD to test, then six production lids
- 1 + 6
- How much smaller than its tube the O-ring lip is cut, confirmed with JFD
- 0.10 to 0.13 mm
What we brought
What we can do
Made to your file, as drawn
We machined the lid from JFD's STEP file and drawing as supplied, with no design changes, in black POM-C.
How we look after you
A sample to test before the batch
JFD's team tested one lid on their side and judged it serviceable before we machined the other six.
What you get
Checked before it left us
We confirmed the O-ring lip tolerance with JFD, test-fitted the side ports and held the batch for a fitting check.
Gallery
The whole project at a glance. Drag or swipe to browse; tap a picture to enlarge it.
1 / 24
-
The finished piece
-

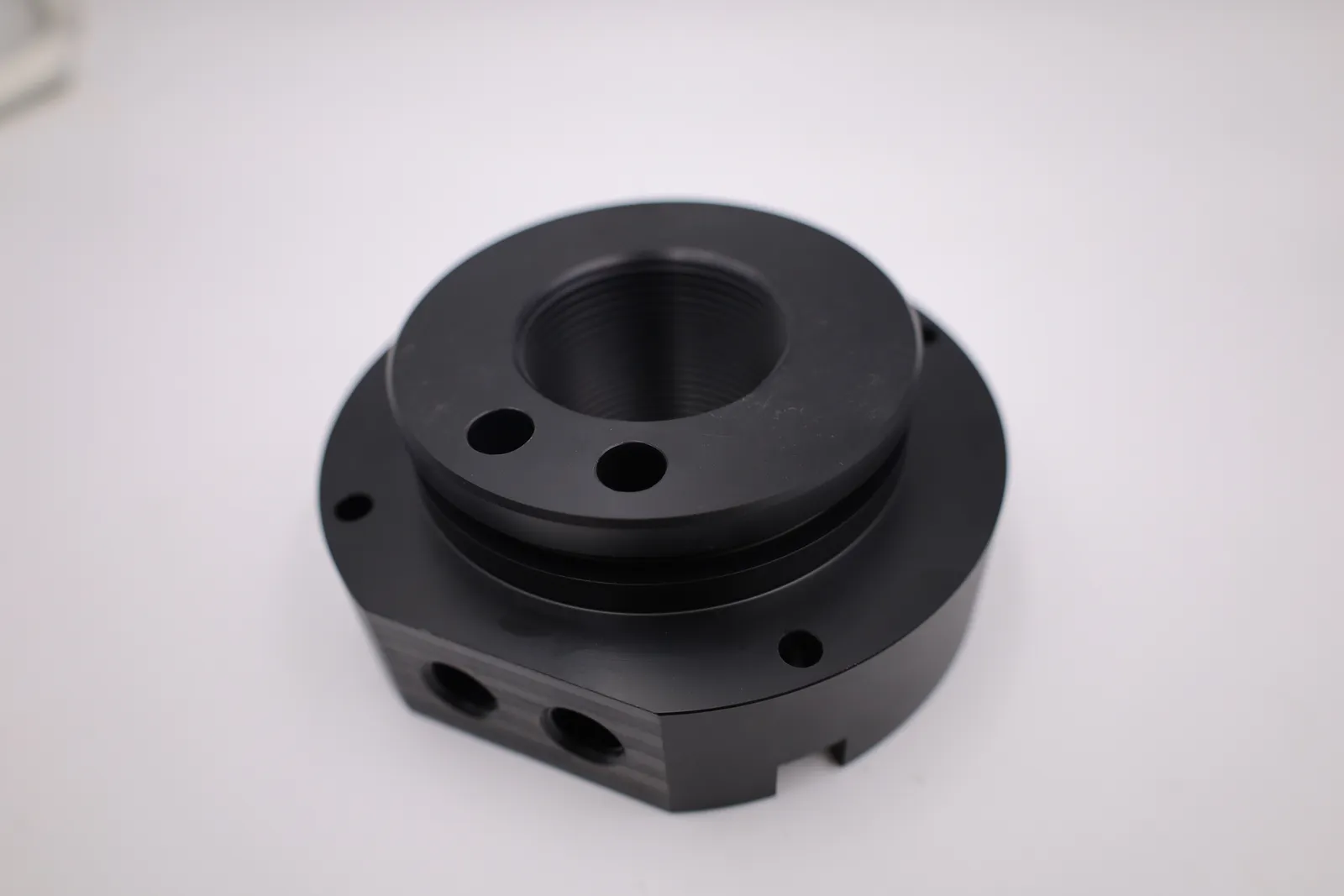

The collar, groove and side ports.
-

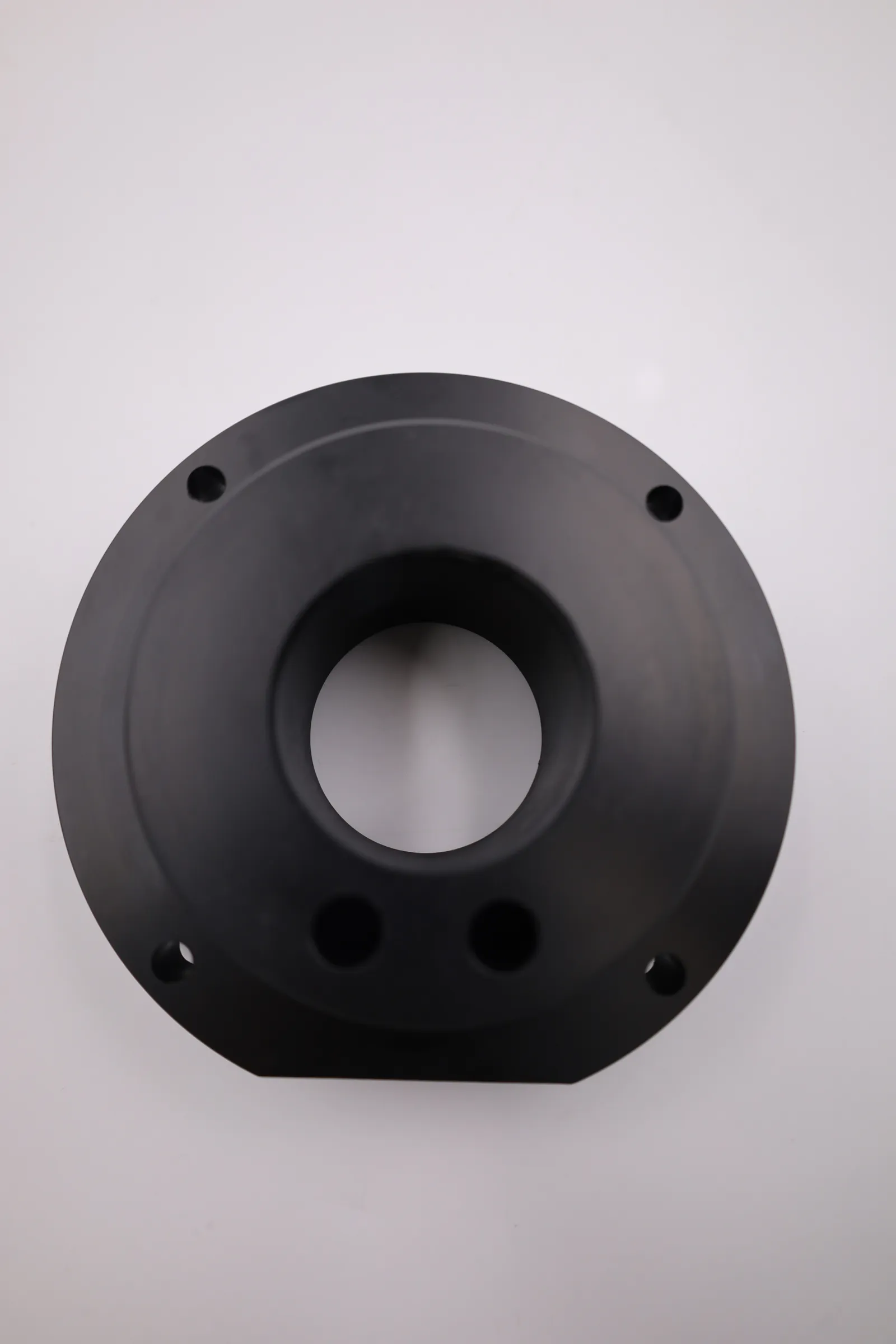

Face-on, the bore and bolt holes.
-

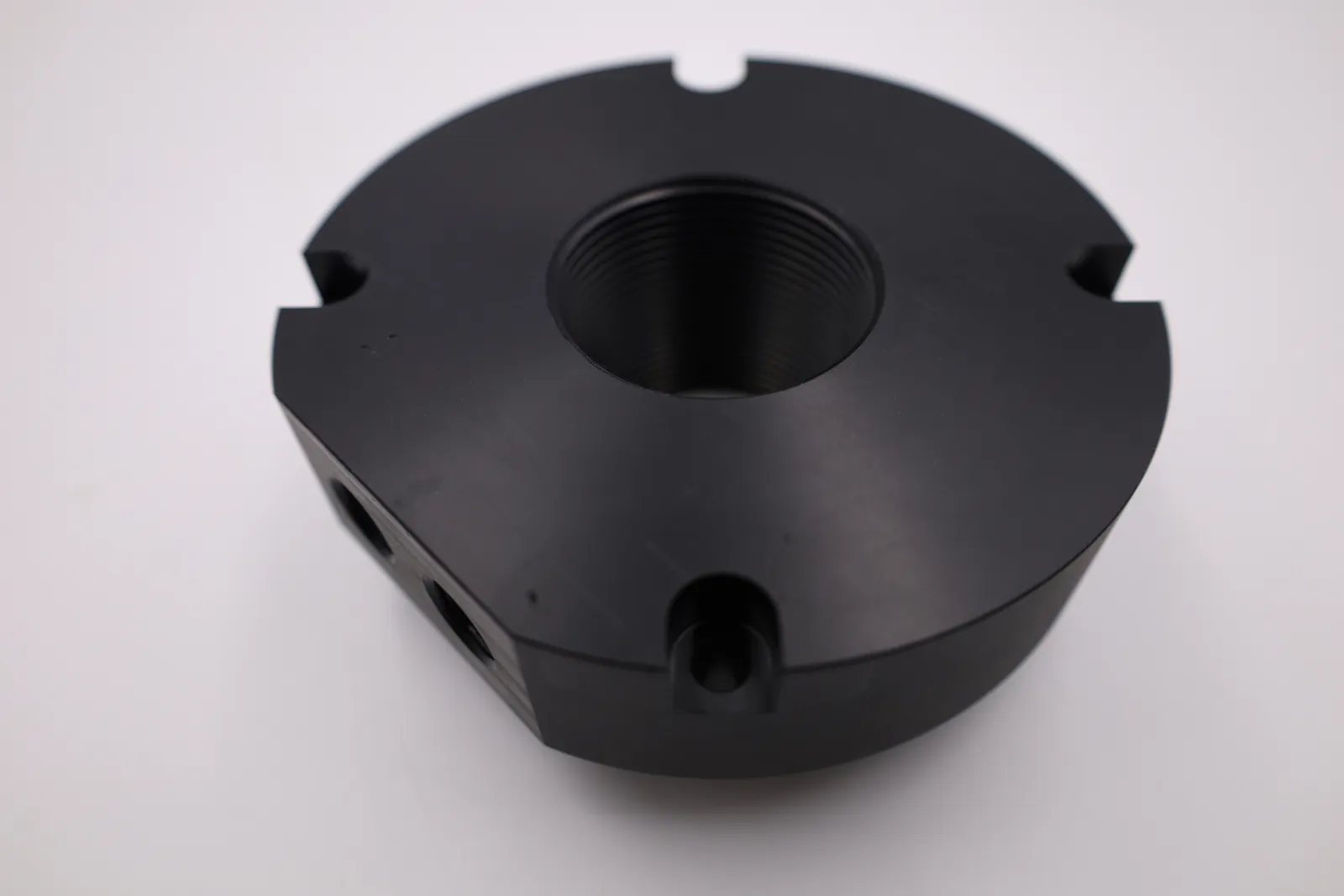

The underside, with its rim notches.
-

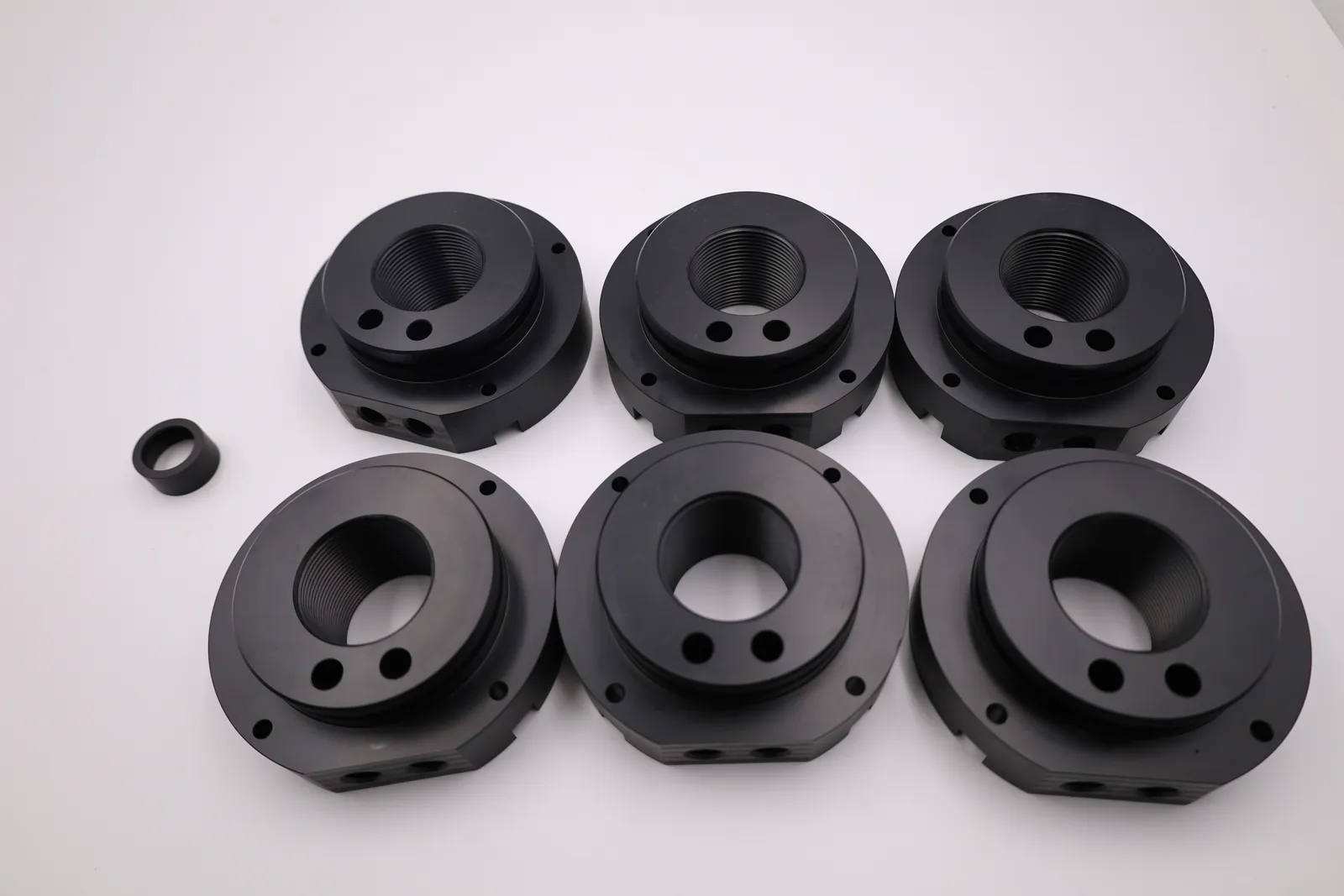

The set and a spare ring.
-
Underneath, on white.
-
The spare ring.
-
Drawing check and sampleThe sample lid, ready for JFD.
-
The thread through the centre bore.
-
The sample's underside and rim notches.
-
Measuring the sample's holes for JFD.
-
DrawingOur drawing of the lid.
-
RenderA design note on the bore.
-
DrawingThe tube fit, marked on the section.
-
ProductionLids halfway through the batch.
-
Six lids, machined.
-
The bore and ports, close.
-
The batch from above.
-
One lid, collar up.
-
The rim notches.
-
The full set.
-
From the side.
-
Stacked up.
-
Checks and fittingThe six production lids, ready for checks.
The build
How we built it
5 steps, from the brief to the finished piece. Pick a step to jump to it.
The brief
Step 1 of 5 · 22/07/2026
- Quantity
- One sample, then six production lids
- Material
- Black POM-C
- Finish
- As machined
- Scope
- Machining only, with no design changes
At Additive Inn, our 3D printing studio in Singapore, we machine parts to our clients' own files. JFD needed seven fuel filling lids made in black POM-C to their STEP file and drawing, with one sample to test before the rest.
Drawing check and sample
Step 2 of 5 · 04/08/2026
We read JFD's drawing for machining, then cut one sample lid. We photographed and measured its holes for JFD's engineer, who collected it on 06/08/2026 and tested it with his team. On 13/08/2026 they judged it serviceable.
Production
Step 3 of 5 · 24/08/2026
We machined the six production lids to the approved sample, watching the thread alignment JFD asked us to check. Before we cut the batch, we confirmed with JFD that the lip for the O-ring is 0.10 to 0.13 mm smaller than its tube.
Checks and fitting
Step 4 of 5 · 01/09/2026
With the batch done, we tried a fitting in the two side ports, and it went in. We held the lids until JFD's engineer came to our studio on 18/09/2026 for a fitting check.
The final build
Step 5 of 5 · 22/09/2026
We delivered the six lids to JFD's team on 22/09/2026. Each is black POM-C, left as machined, with a threaded centre bore, two side ports, four bolt holes in the flange and a groove around the raised collar.
