3D printed revolver mic stand

A prop revolver for Rezilienz that holds a wireless microphone in its cylinder, with a chrome-plated frame and a textured grip.

Client
Rezilienz
What it is
A prop only. It does not fire; it holds a microphone
Design rounds
Two, in January 2024
The microphone
Clips into the open ring and lifts back out
Start a prototype (opens WhatsApp) Send a brief

What we brought

  1. What we can do

    We design around the real object

    From Rezilienz's references, we modelled the ring to the microphone's handle, open at the top so it clips in.

  2. How we look after you

    You see it in 3D before we print

    Two rounds of renders, first in gold and then in silver, settled the look before printing.

  3. What you get

    A printed part that looks like metal

    The white ABS print was sanded, primed and electroplated to a mirror chrome; the grip went textured black.

The build

How we built it

5 steps, from the brief to the finished piece. Pick a step to jump to it.

The brief

Step 1 of 5

Holds
A handheld wireless microphone, as the barrel
Look
A revolver frame, cylinder and trigger guard
In the hand
A grip that sits like a revolver's

At Additive Inn, our 3D printing studio in Singapore, we made a revolver-shaped microphone holder for Rezilienz. They sent references and asked us to design and 3D print a prop that holds a handheld wireless mic as its barrel.

Design and prototyping

Step 2 of 5

We modelled the holder as a revolver frame, with an open ring shaped like the cylinder so the mic clips in. The renders show it from every side, with a stand-in mic, before any printing.

  1. First design

    The final frame and grip, without the mic.

    Render

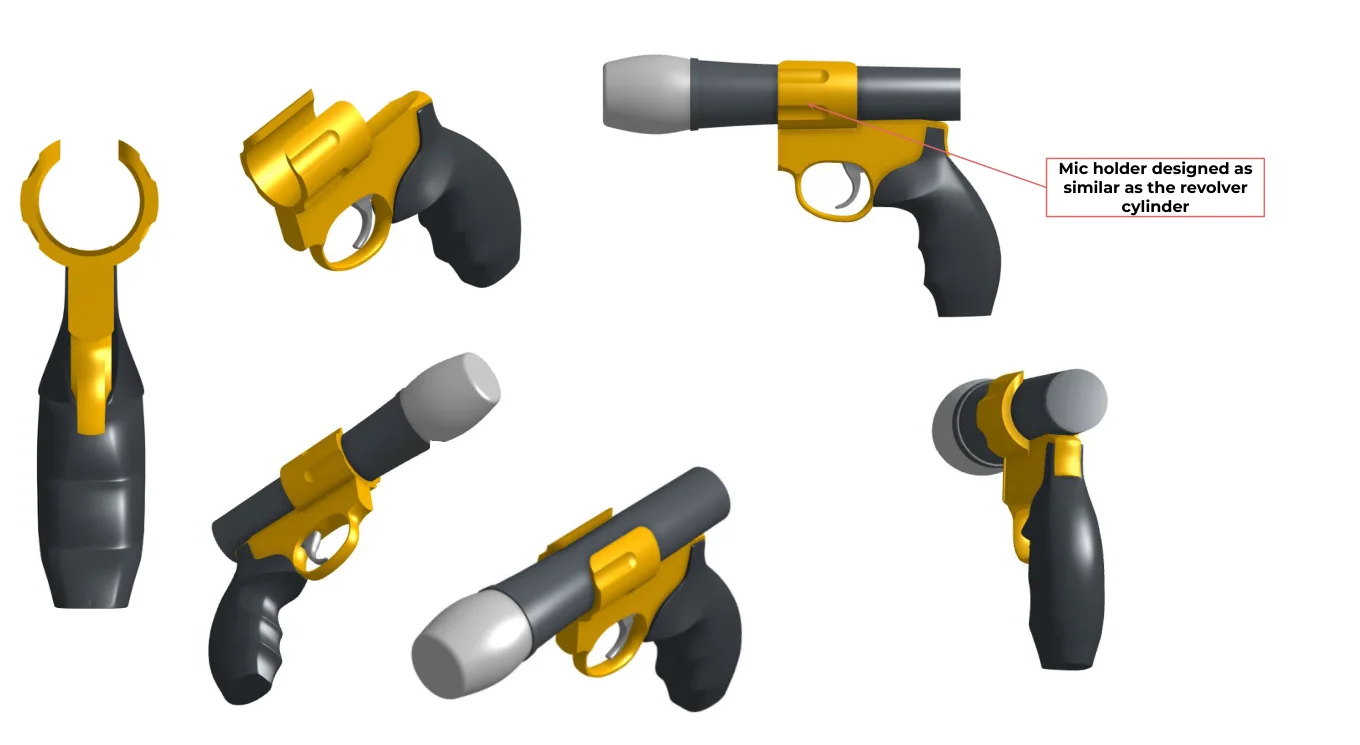

  2. First design · 04/01/2024

    A gold frame and cylinder ring on a black grip, shown with a stand-in microphone.

    Render

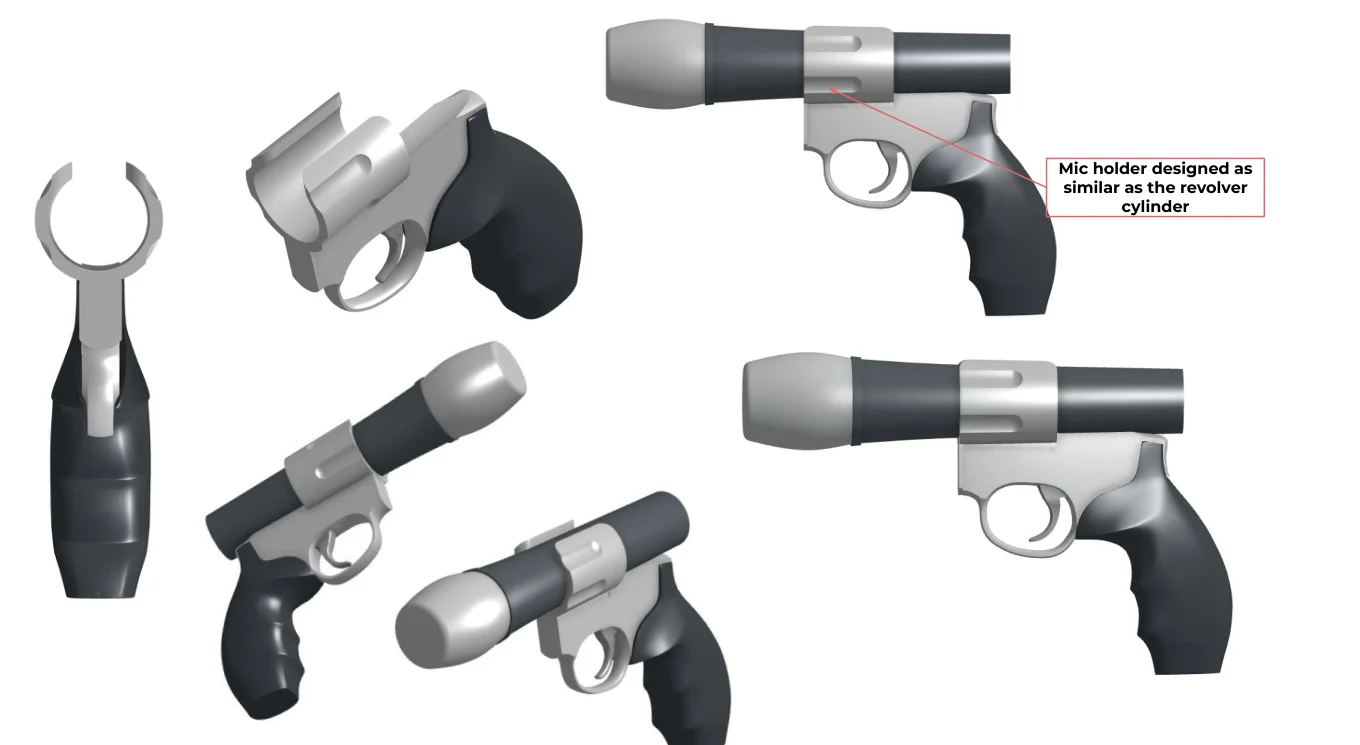

  3. Final design · 08/01/2024

    The frame and ring moved to silver, the look the chrome plating would give.

    Render

Production

Step 3 of 5

The holder was 3D printed in white ABS, then its supports were cleaned off ready for finishing.

Build and assembly

Step 4 of 5

We deburred, sanded, filled, primed and buffed the print. The frame and cylinder ring were electroplated to a mirror chrome and the grip finished in textured matt black for a sure hold.

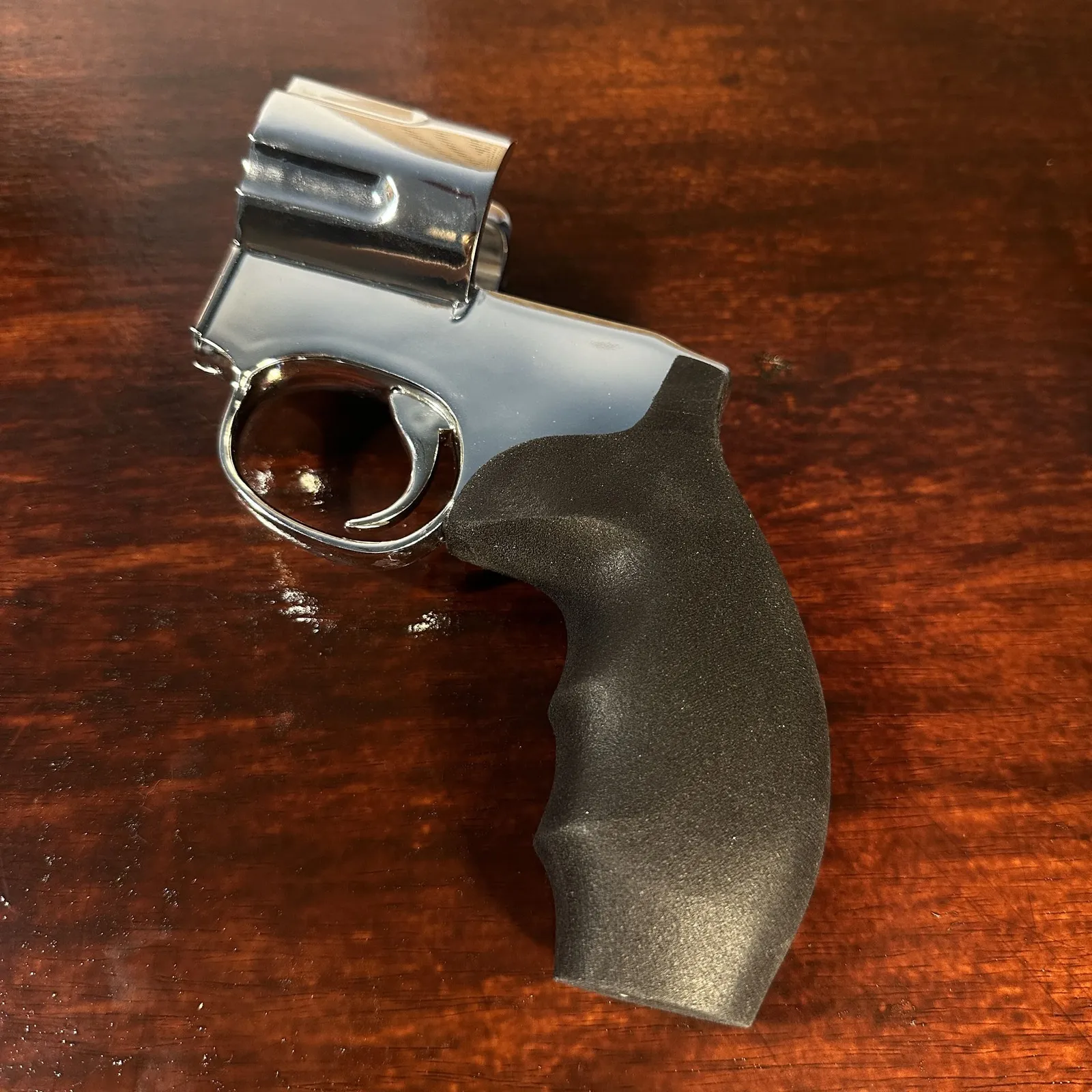

The plated frame and grip, before the mic.

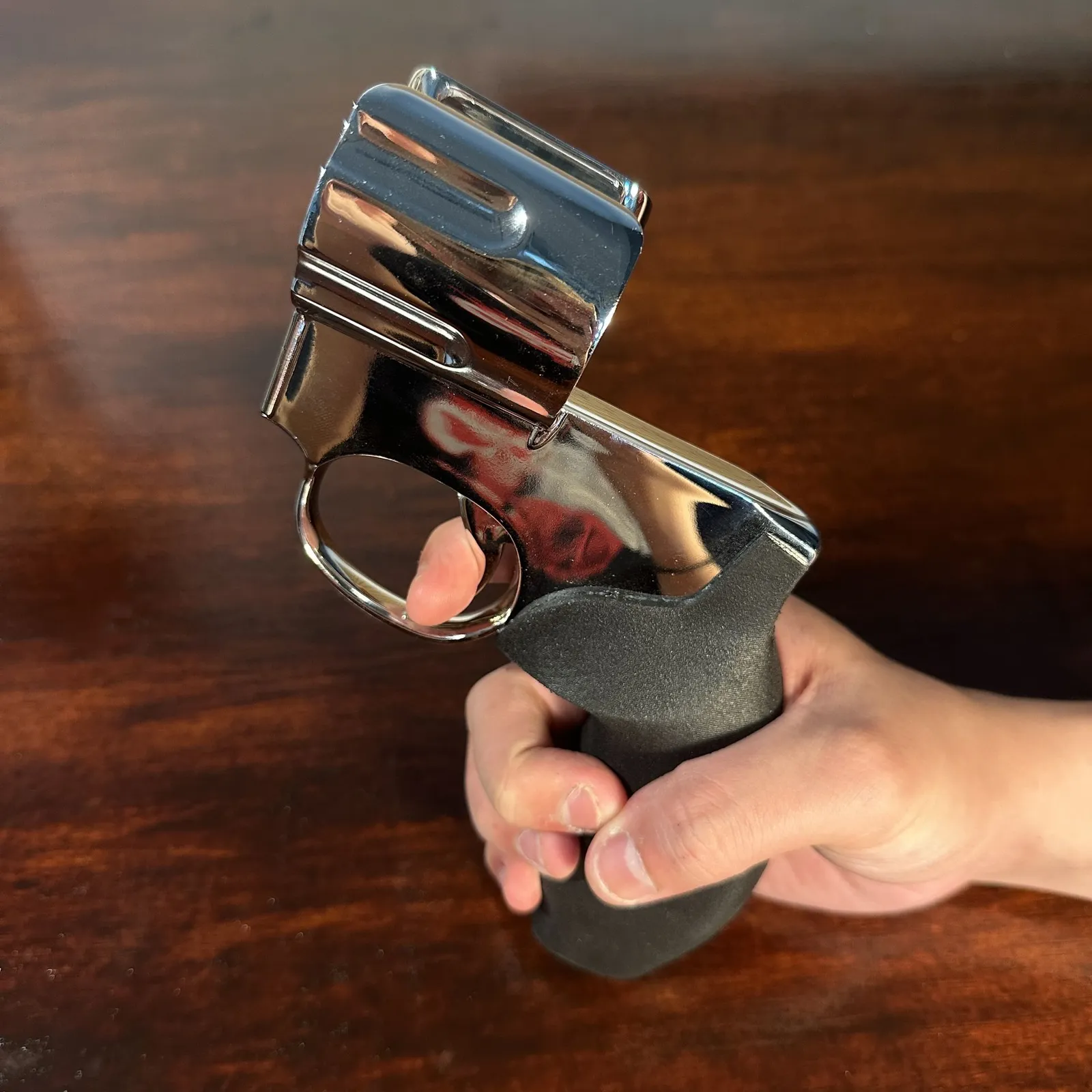

The open ring that takes the mic.

The final build

Step 5 of 5

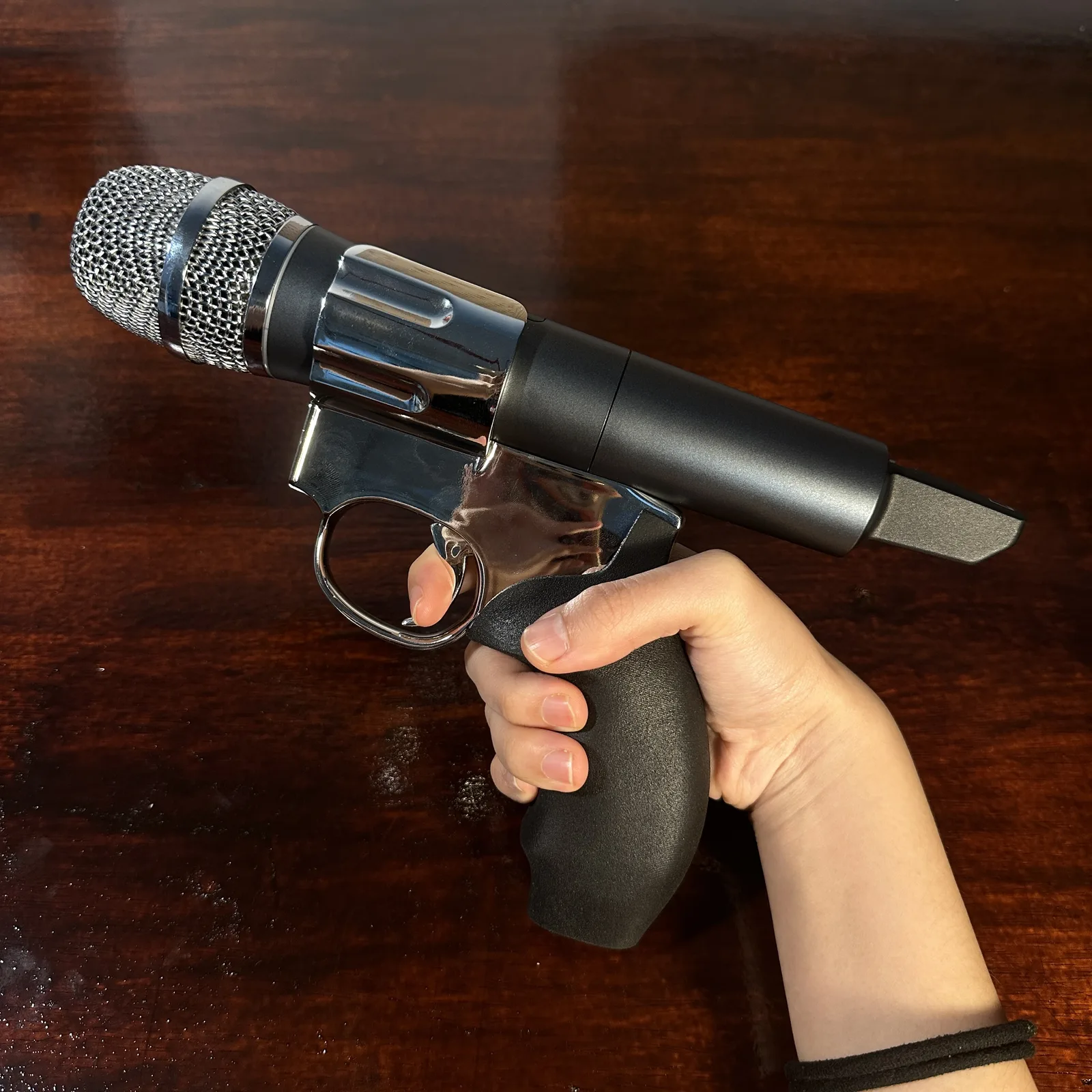

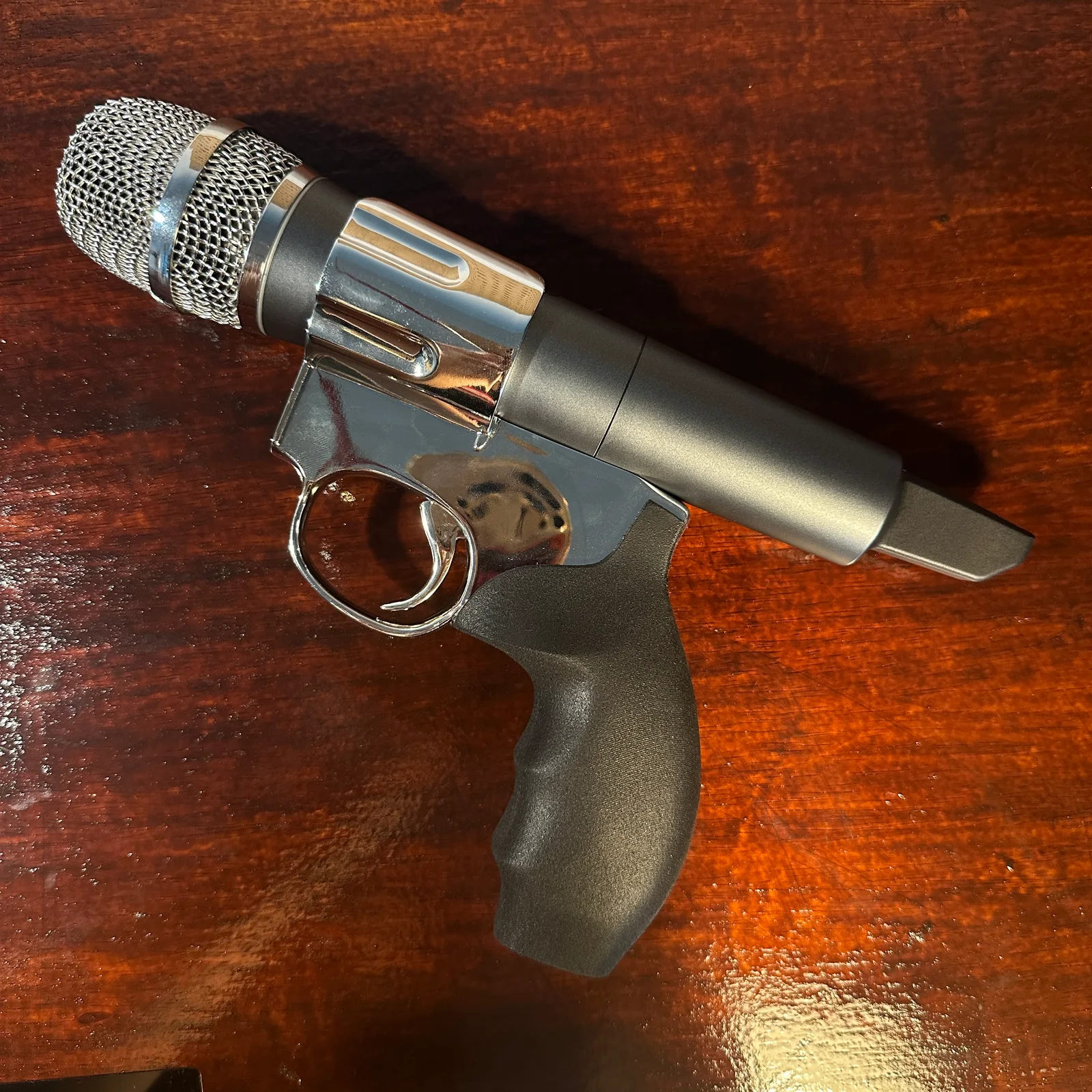

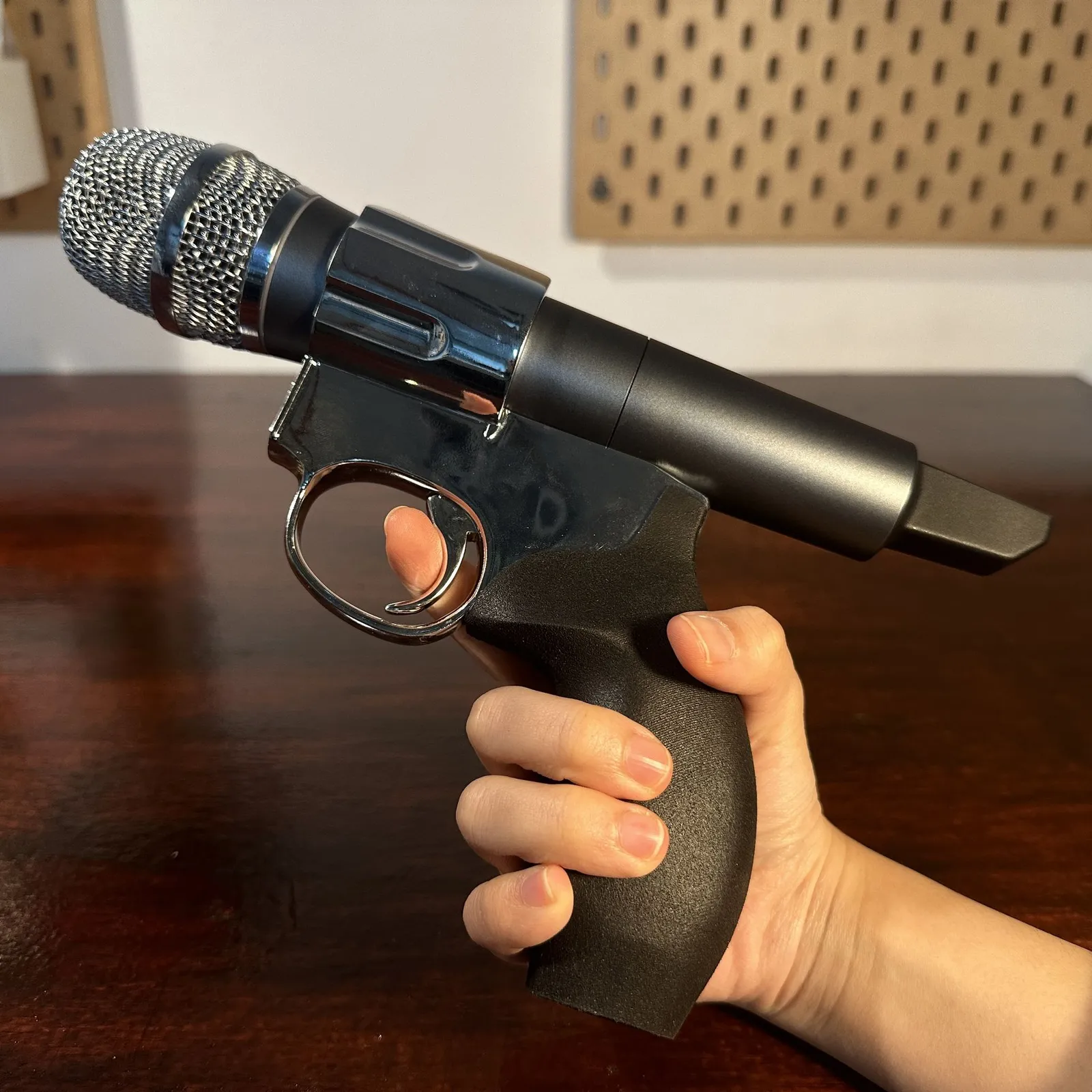

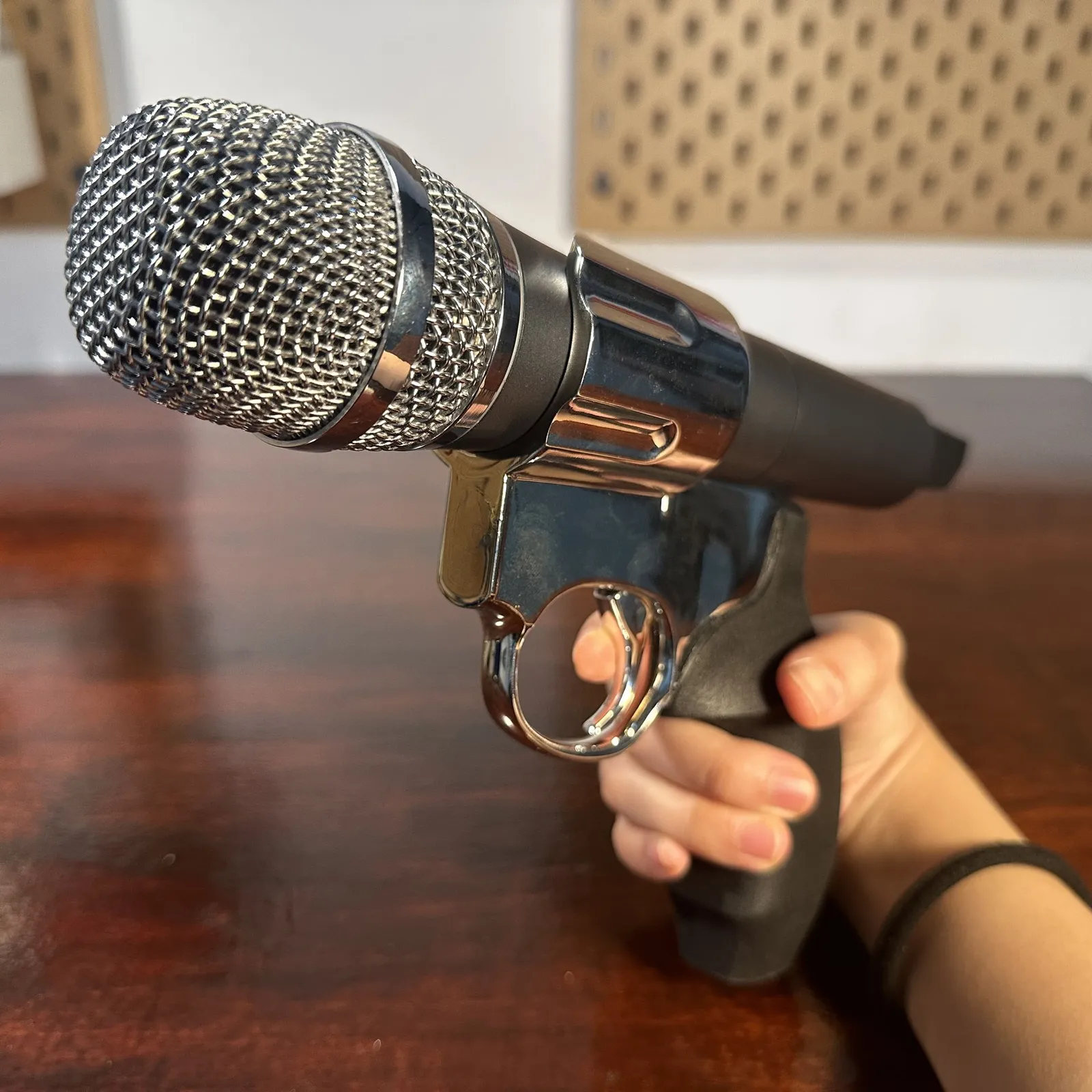

Rezilienz got a prop that holds their wireless mic as its barrel, the chrome ring round its handle and a finger resting in the trigger guard.

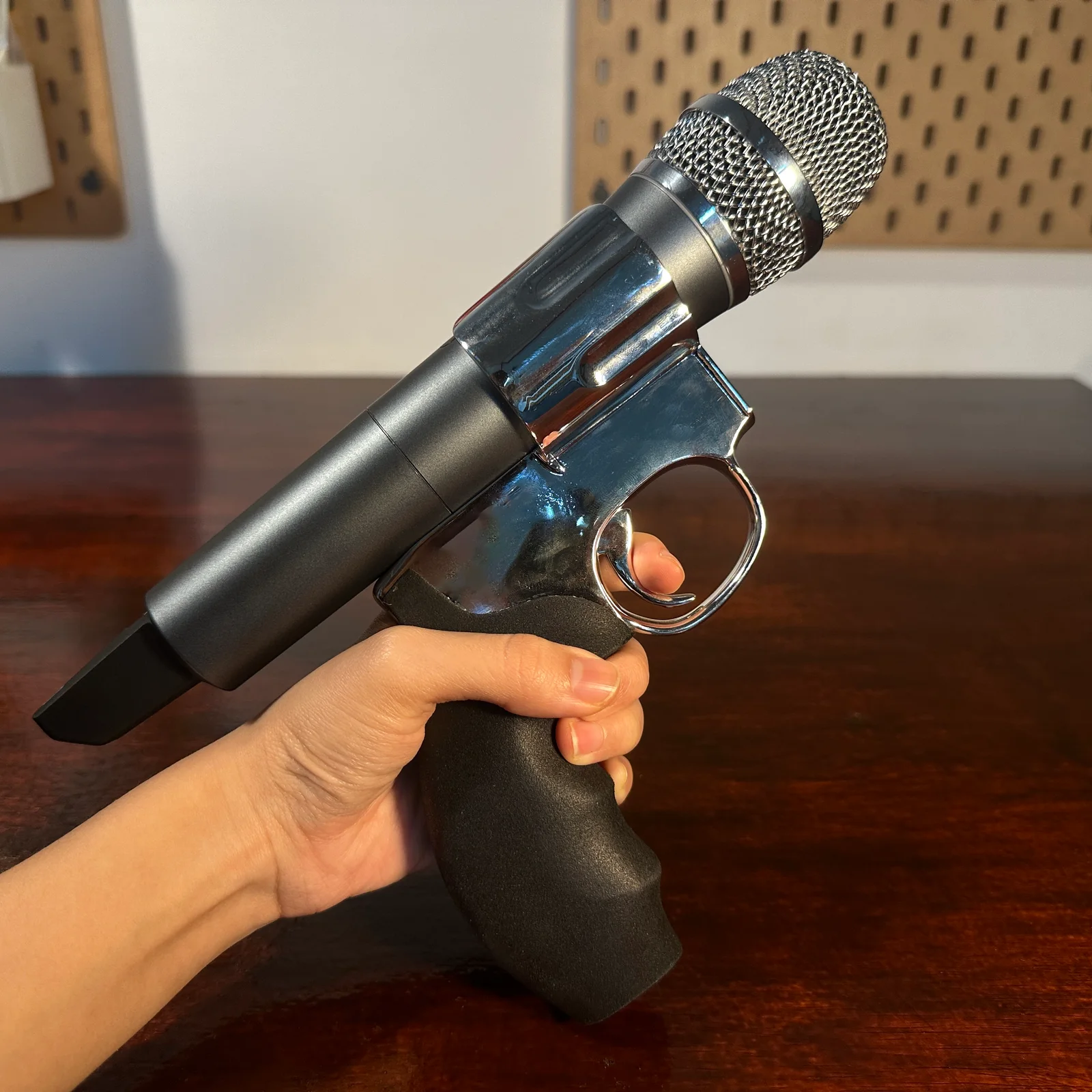

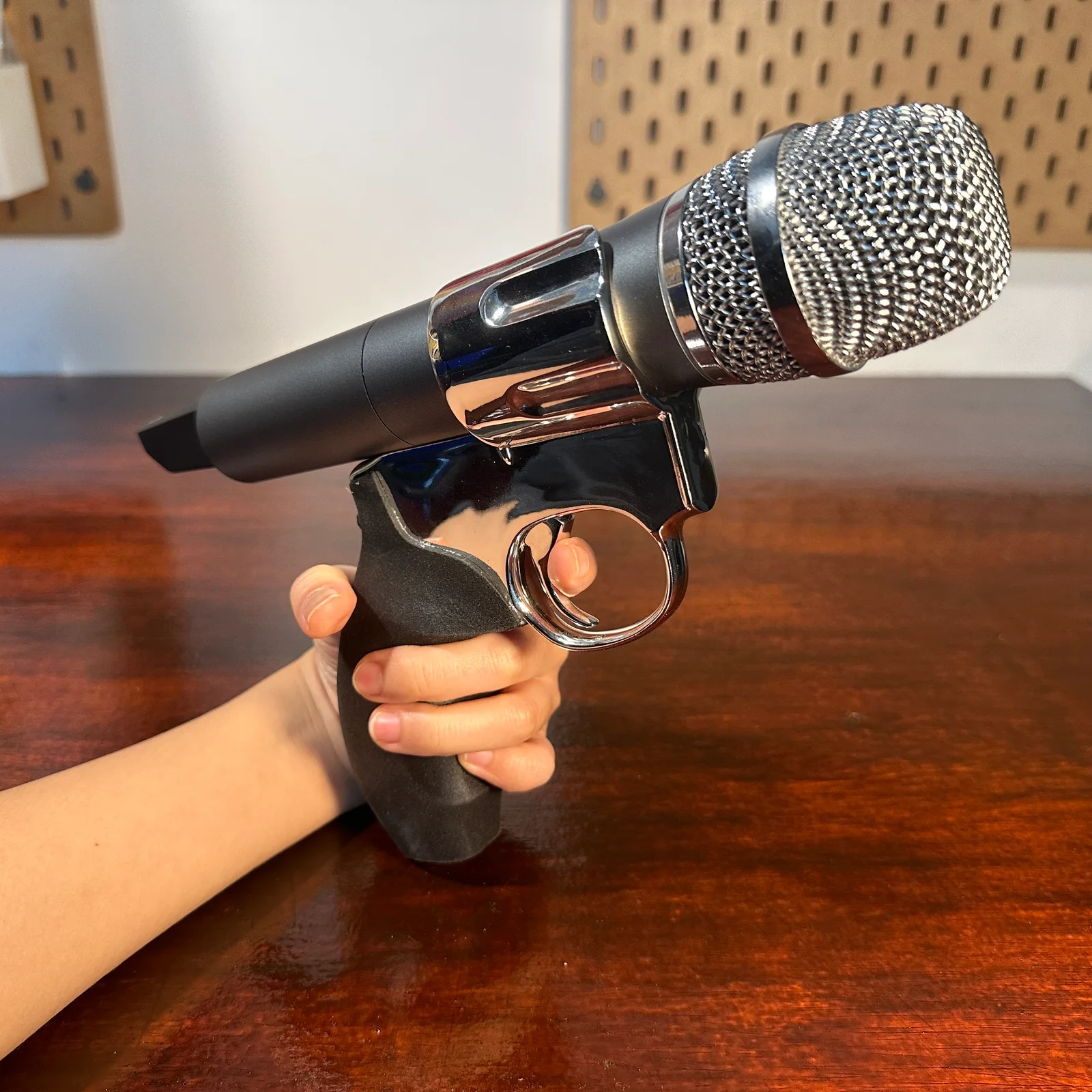

Held by the grip, mic pointing forward.
