3D Printed Hand Press Injection Moulds for Sea Almond

Two 3D printed injection moulds for Sea Almond's hand press, a cup mould and a dice mould, with an aluminium plate taking the nozzle's heat.

Client
Sea Almond Investments
Sized from
Sea Almond's own cup and dice
Opens with
Bolts and guide pins, by hand
Plan a mould with us
Moulds designed, one for a cup and one for dice
2
Dice from every shot of the dice mould
5
Plates in each mould, including the aluminium heat plate
3
Design rounds approved by Sea Almond
2

What we brought

  1. What we can do

    We design moulds that open cleanly

    Two parting lines release the runner, then the five dice. Guide pins align the plates; vents stop air traps.

  2. How we look after you

    You approve each round before we print

    Sea Almond approved the scope, the first design and the refined second design in our deck before fabrication.

  3. What you get

    Your team can run it themselves

    We filmed how to bolt the mould together and take it apart, and supplied the aluminium plate design to mill.

The build

How we built it

5 steps, from the brief to the finished piece. Pick a step to jump to it.

The brief

Step 1 of 5

Quantity
Two moulds, one cup and one dice
Reference
Sea Almond's physical cup and dice
Final moulds
High-temperature resin, for injection use
Aluminium plate
Milled by Sea Almond to our design
Not included
Production runs and finishing the moulded parts

At Additive Inn, our 3D printing studio in Singapore, we designed and 3D printed injection moulds for Sea Almond's hand press, one for a cup and one for dice. Sea Almond sent the real cup and dice, and needed moulds their own team could run.

Design & prototyping

Step 2 of 5

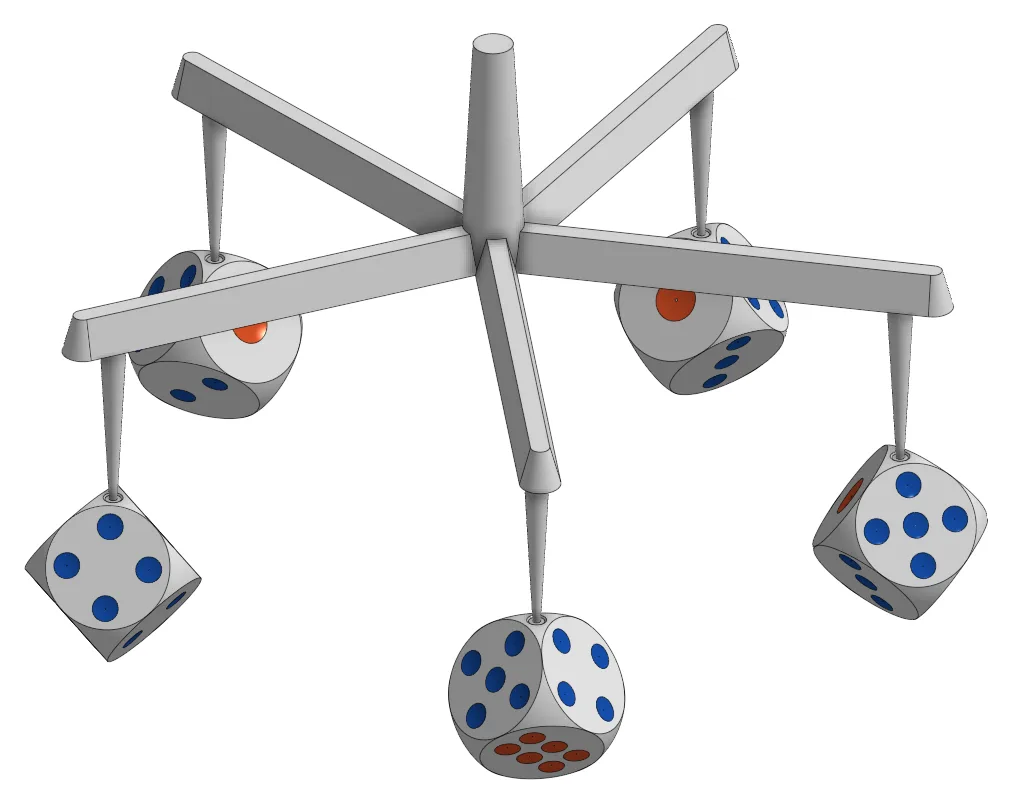

Each mould is a three-part stack: a cavity plate, a plate carrying the sprue and runners, and an aluminium plate on top that takes the nozzle's heat and force. The dice mould fills five dice per shot through a runner spider.

  1. First design

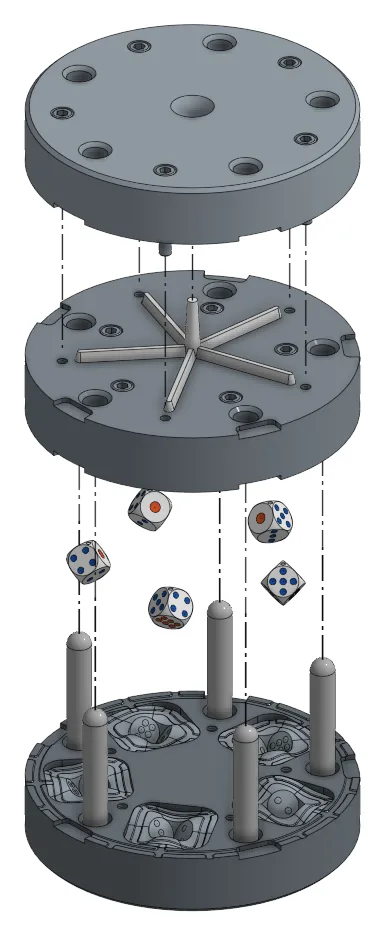

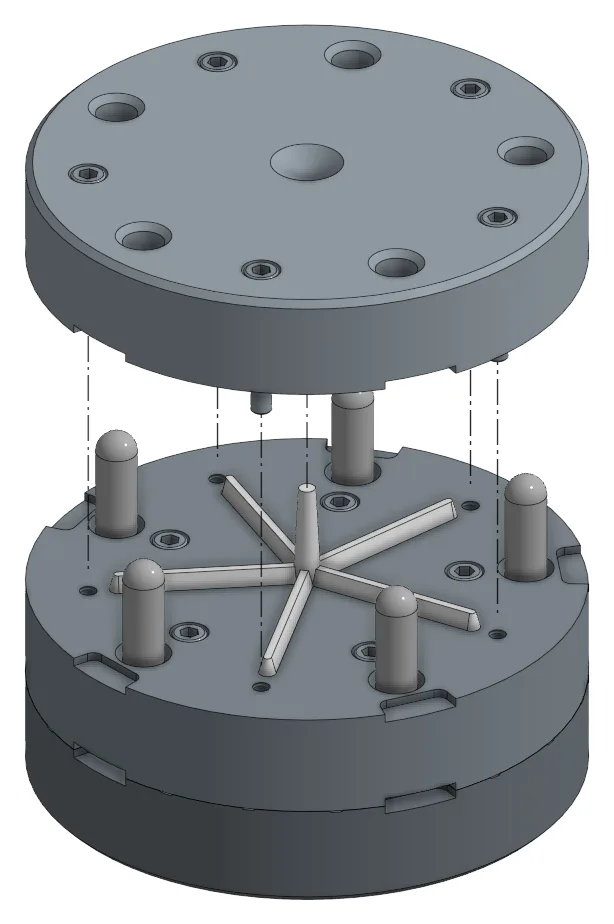

    The dice mould opening, step by step.

    Render +2 more

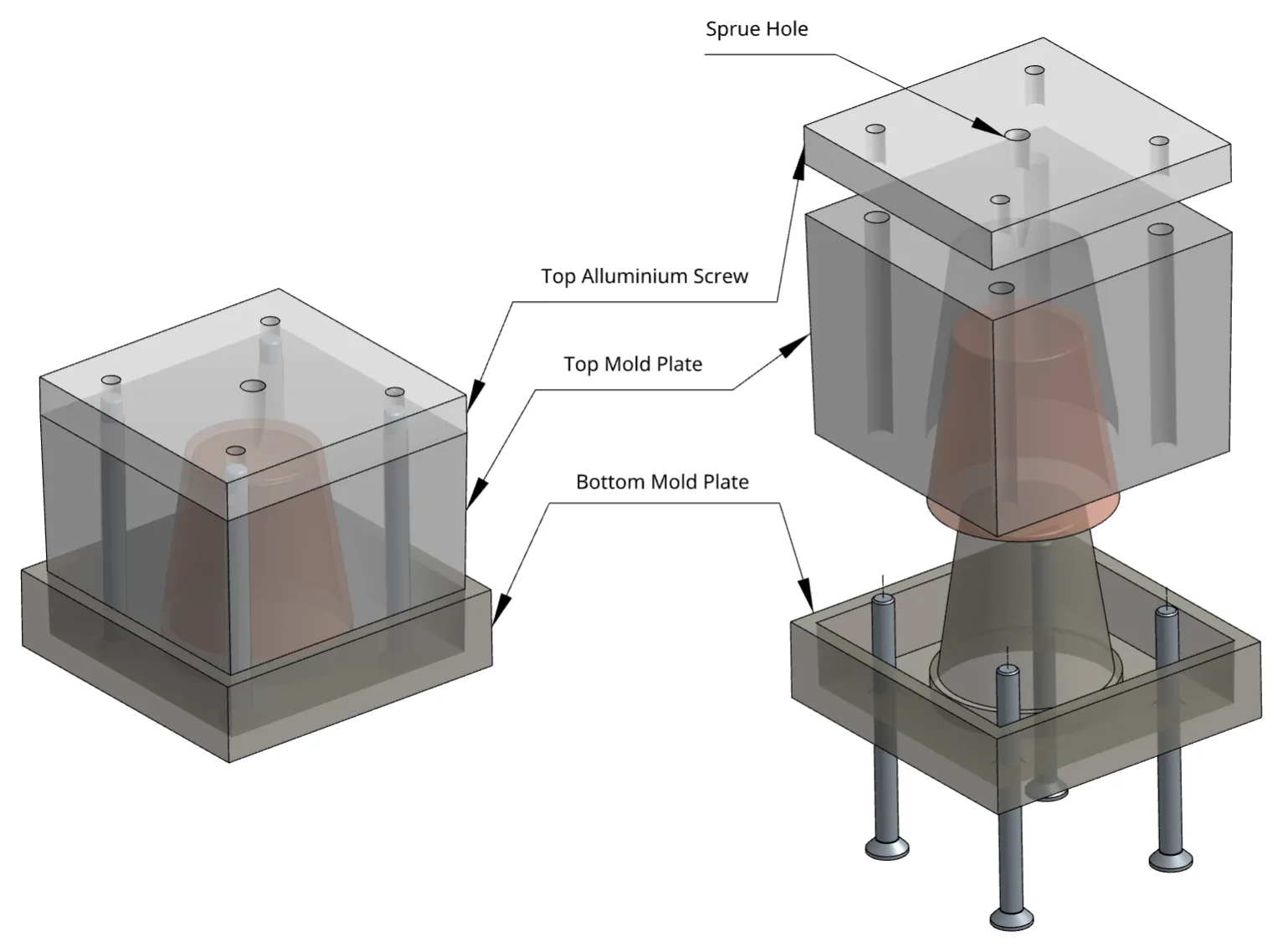

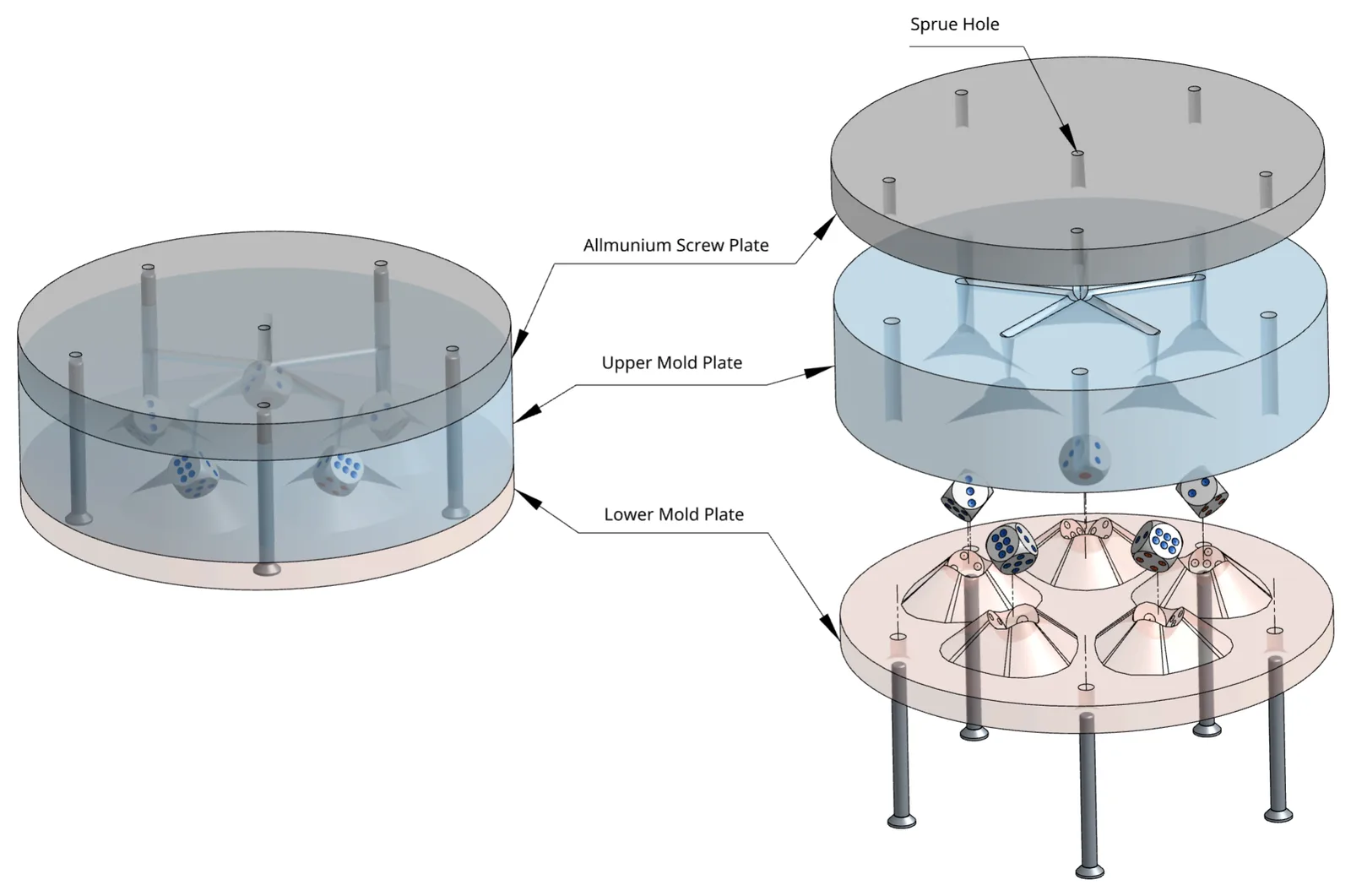

  2. First design · 11/07/2026

    Bolts replaced the clamps, and Sea Almond's idea of an aluminium plate was built into both moulds.

    Render +1 more

  3. Second design · 31/08/2026

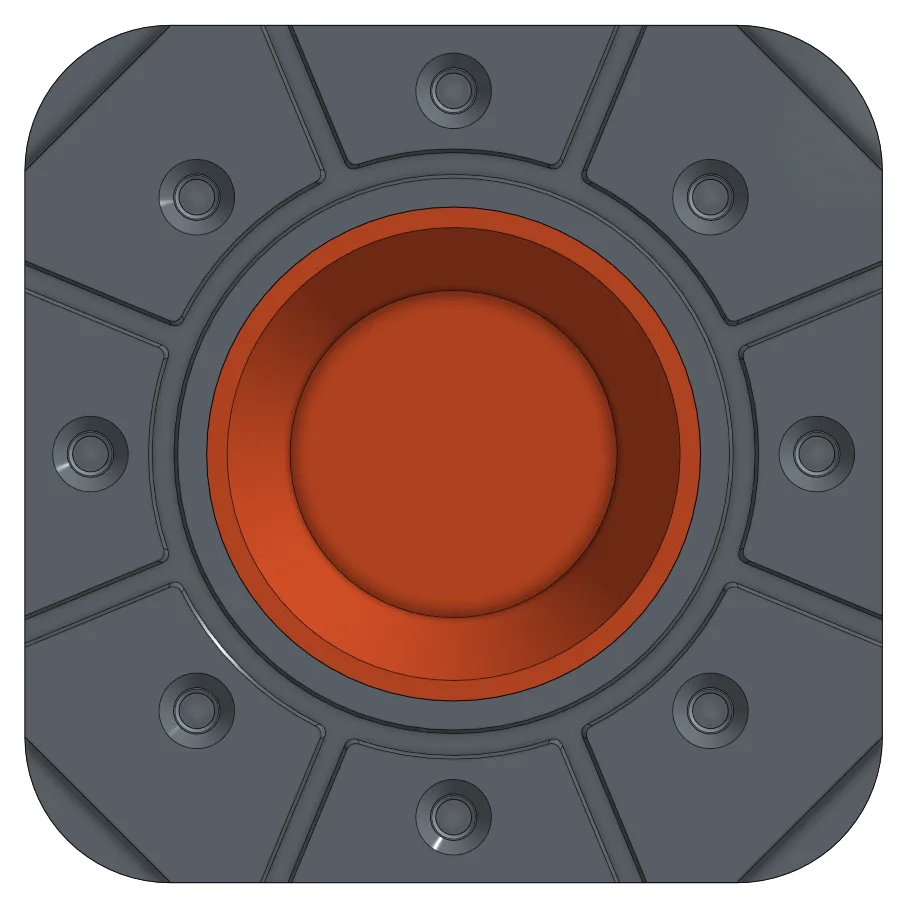

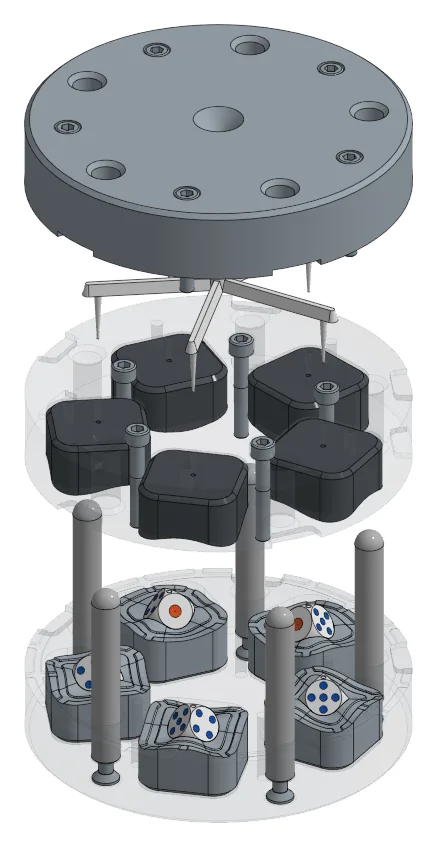

    We split each mould into inserts and added guide pins, air vents and two parting lines so parts release cleanly.

    Render +3 more

Production

Step 3 of 5

We 3D printed the cup mould's plates in matte black, with the cavity and sprue as smooth resin inserts, so the parts are easier to make and assemble.

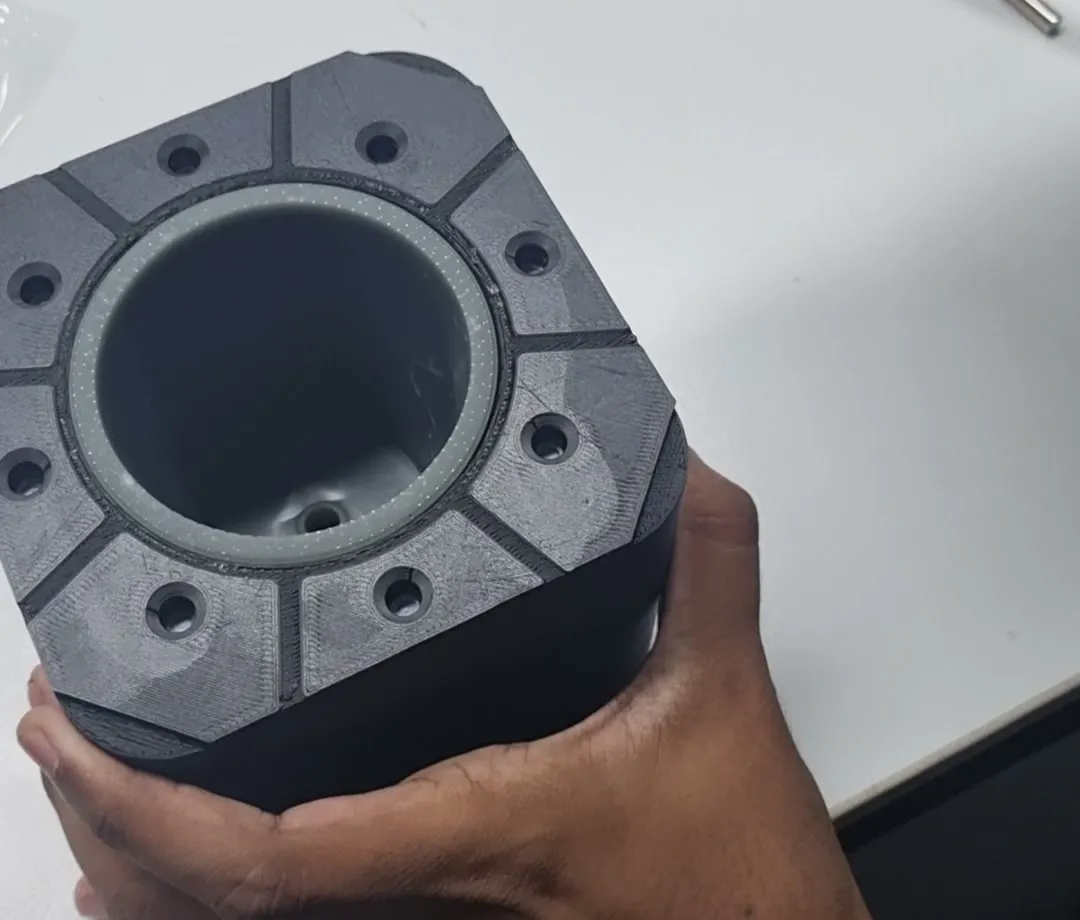

The printed plate around the resin cavity.

Build & assembly

Step 4 of 5

We bolted the cup mould together on its guide pins and filmed how to take it apart and close it again, so Sea Almond's team can do it themselves.

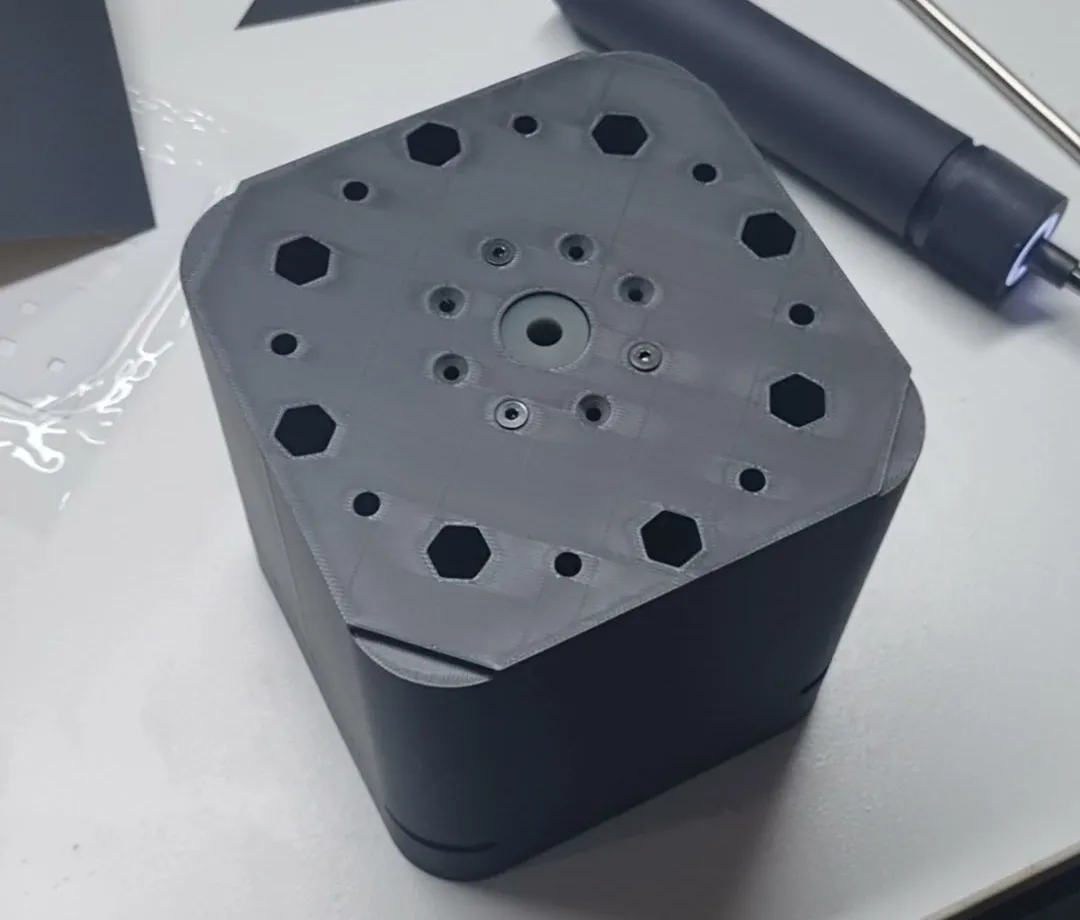

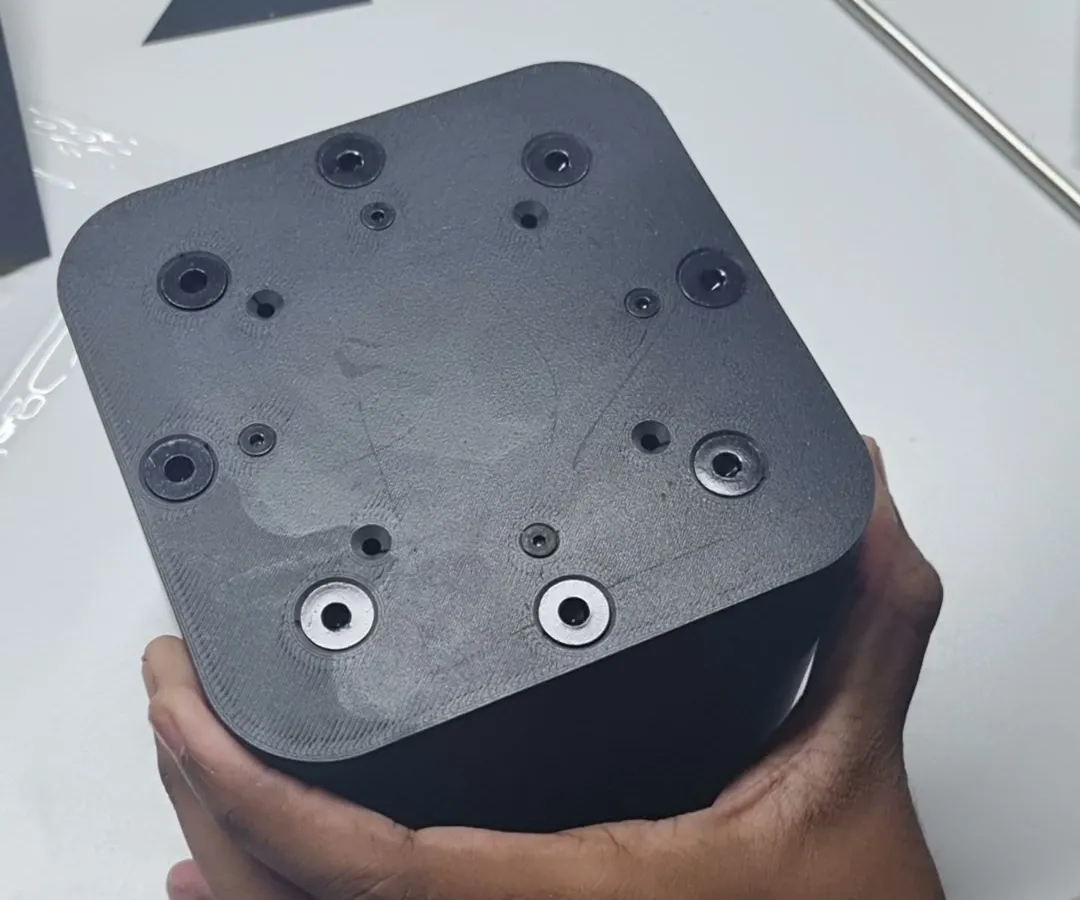

The bolted face of the closed mould.
Opening the mould by hand.

The final build

Step 5 of 5

Sea Almond has a cup mould that bolts together on guide pins and opens by hand, sized from their own cup. The aluminium plate is milled on their side to our design.

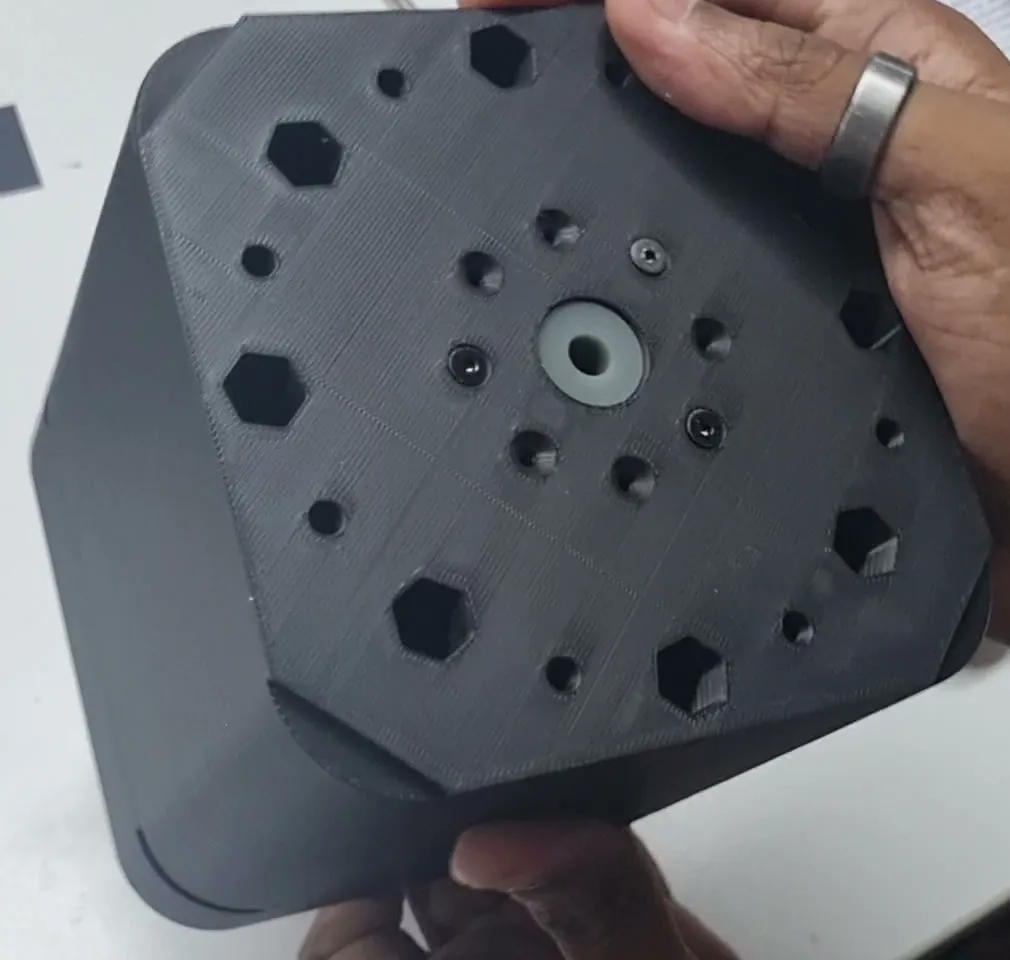

The sprue face, where the nozzle meets it.
