CO2 Rail concept train scale model

The CO2 Rail concept train: a locomotive in wave livery and a solar-panelled carbon-capture tank car, resin printed, primed and painted by hand.

Service: Scale Models
Delivered: A primed, painted and assembled concept train, ready for display

Brief us on a model Send a brief

Vehicles, a locomotive and a tank car: 2
Separate parts laid out before assembly: 10
Sets of running gear, each its own print: 4
Fabrication time, after design approval: 6 weeks

What we brought

Small parts, printed apart
The small parts a model train depends on, printed apart
Bogies, wheel sets, end platforms with handrails, steps and the front pilot were each printed separately, so fine detail holds.
Start to finish
From 3D model to finished train
Every part printed, the bodies primed and painted by hand, both vehicles assembled in our studio.
Easy to read
Your concept, clear to anyone who sees it
Wave livery, solar panels, twin pods and the CO2 Rail name carry the idea before anyone explains it.

Gallery

The whole project at a glance. Drag or swipe to browse; tap a picture to enlarge it.

1 / 12

The finished piece
The finished tank car, solar panels and all.

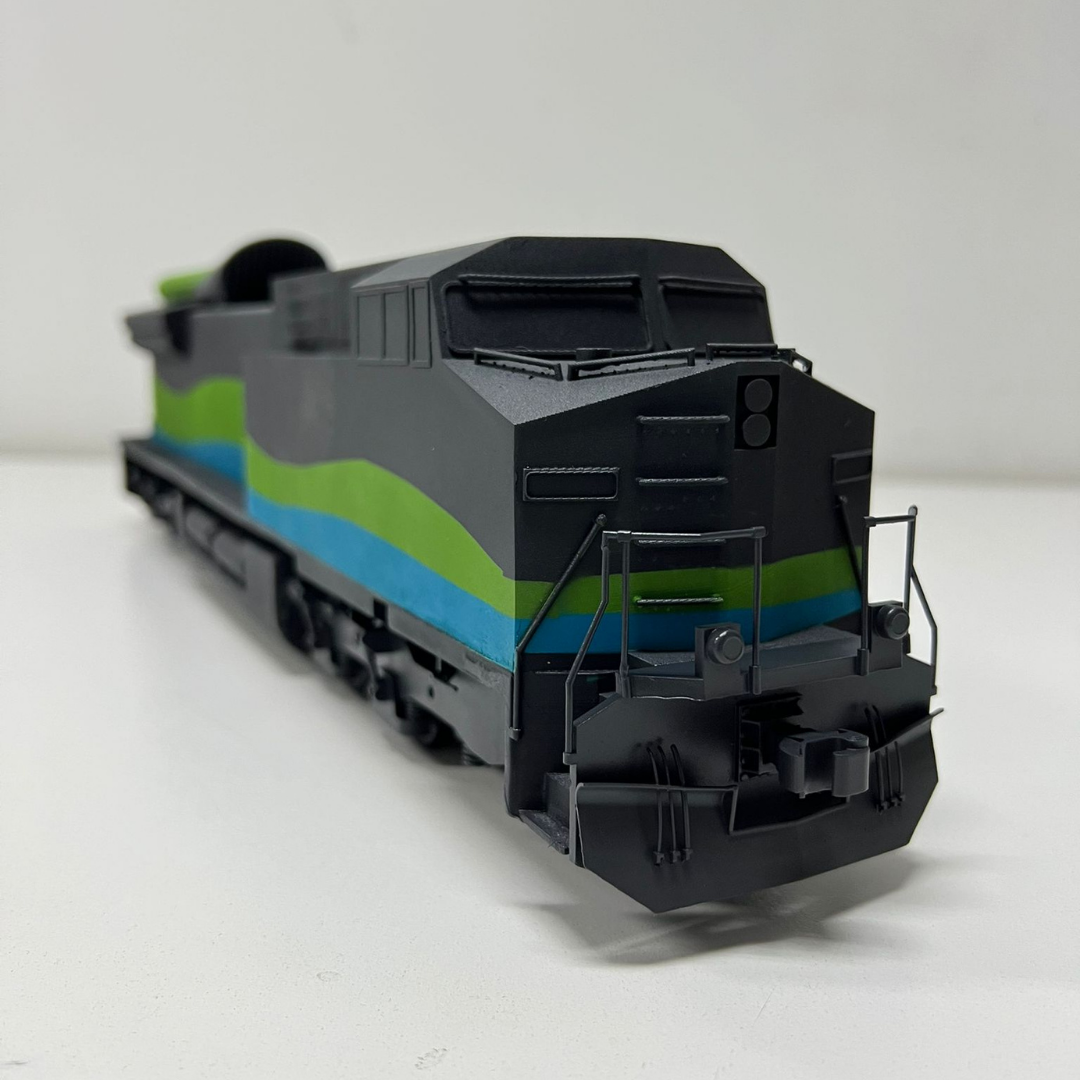

The locomotive's cab end and wave livery.
The locomotive's rear, with its roof pipe.
A locomotive bogie, printed as one detailed part.
The tank car's end platform, handrail and placard.
The front pilot, with its thin grab rails.
The briefRenderThe locomotive as a 3D model, before printing.
FabricationTwo small tanks, each printed on its own.
The twin horn, one of the smallest parts.
Build and assemblyPainted bodies and printed running gear, before assembly.
The tank car body, painted, before its wheels.

The build

How we built it

4 steps, from the brief to the finished piece. Pick a step to jump to it.

The brief

Step 1 of 4

Starting point: A full 3D model of the locomotive

At Additive Inn, our 3D printing studio in Singapore, we built a model of the CO2 Rail concept train, printed in SLA resin, then primed and painted by hand. The locomotive started as a full 3D model.

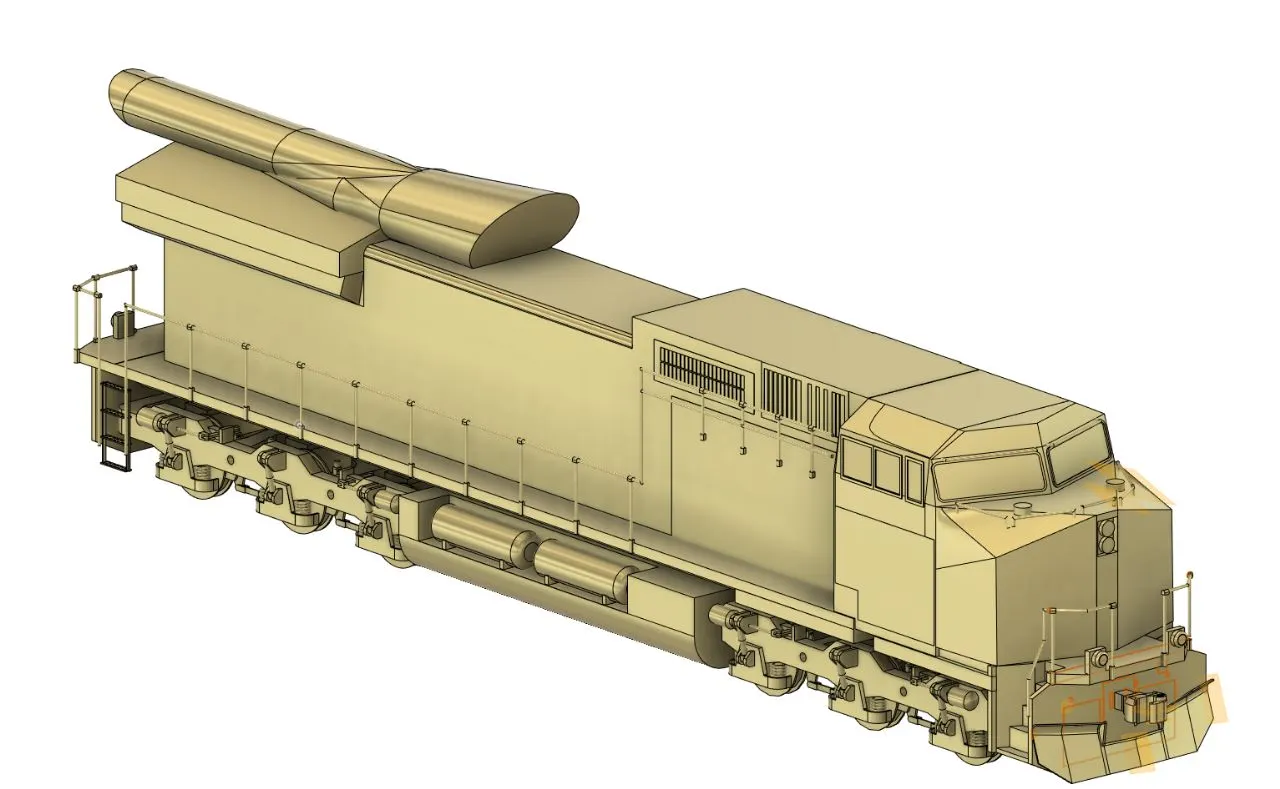

Render of the locomotive's 3D model in plain beige, showing its body panels, handrails, steps and the pipe running along its roof — RenderThe locomotive as a 3D model, before printing.

Fabrication

Step 2 of 4

Each vehicle was printed as separate parts rather than one solid block: two bodies, four sets of running gear, the front pilot, two small tanks and a horn. Small parts printed on their own keep their fine detail.

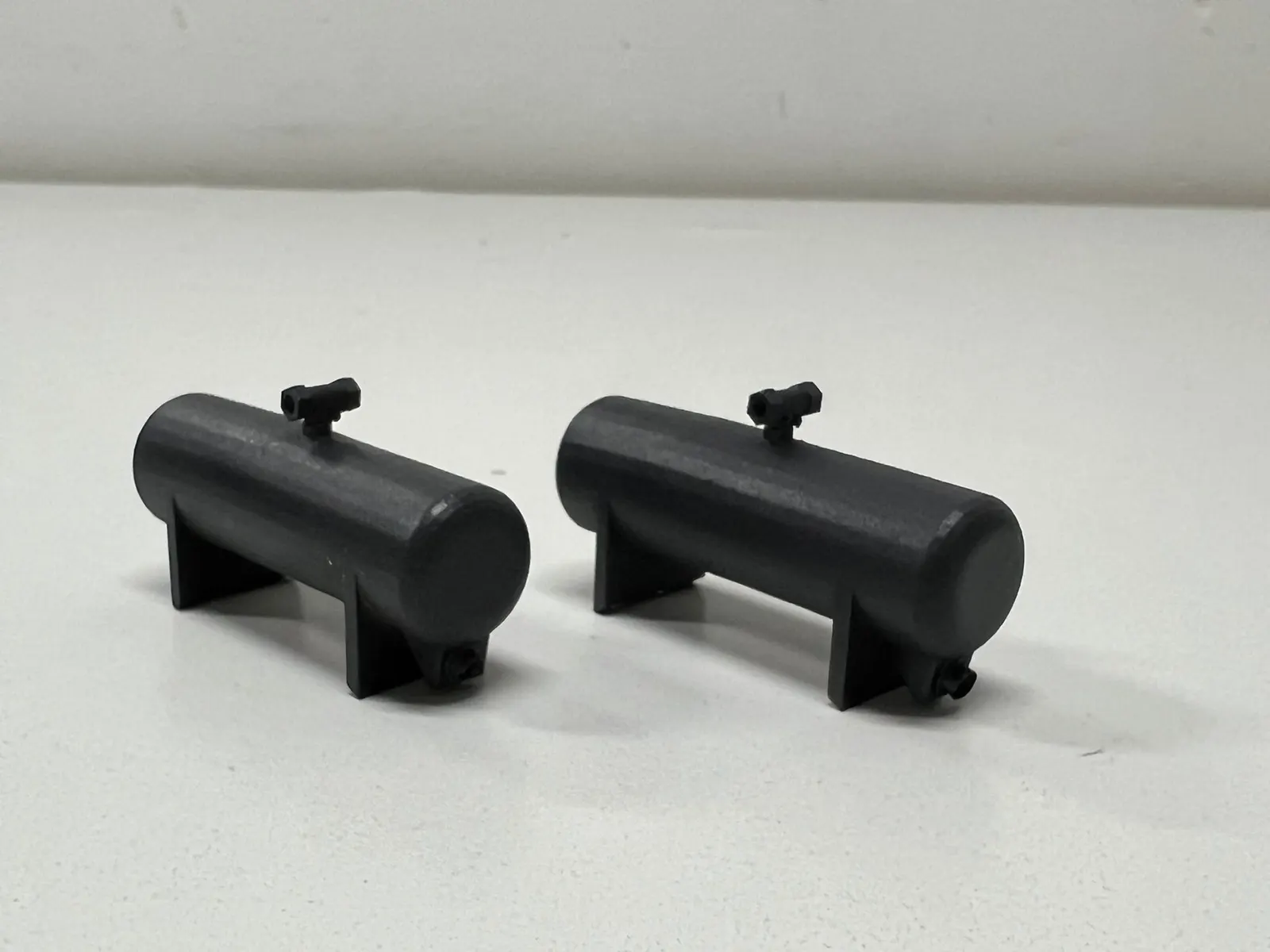

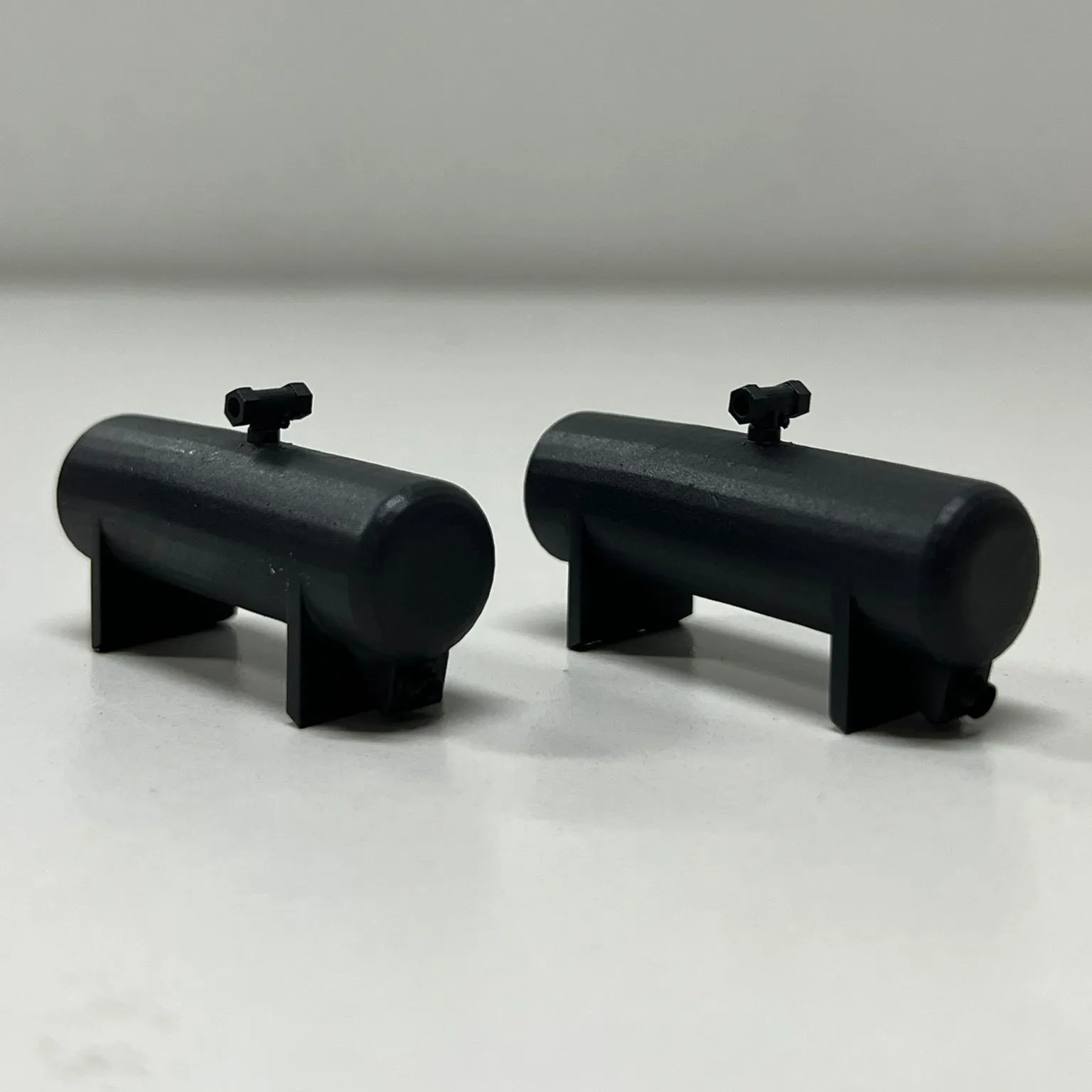

Two small printed tanks in dark grey, each a separate part, standing side by side on a white table — Two small tanks, each printed on its own.

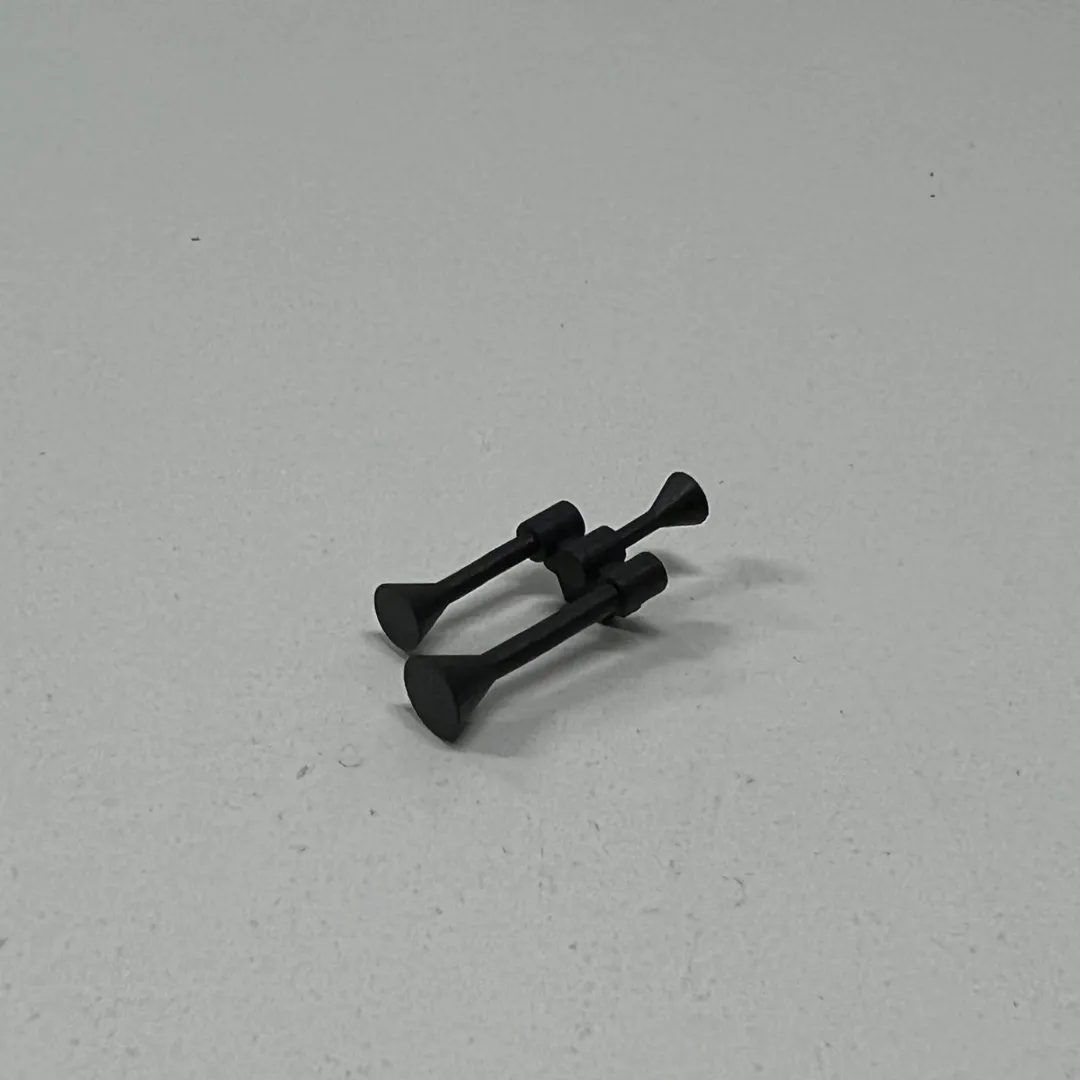

A tiny printed twin horn in dark grey, lying on its own on a white table — The twin horn, one of the smallest parts.

Build and assembly

Step 3 of 4

The bodies were primed and painted by hand, with the solar panels picked out in black and white. Then the running gear, the pilot and the small fittings went on under each body.

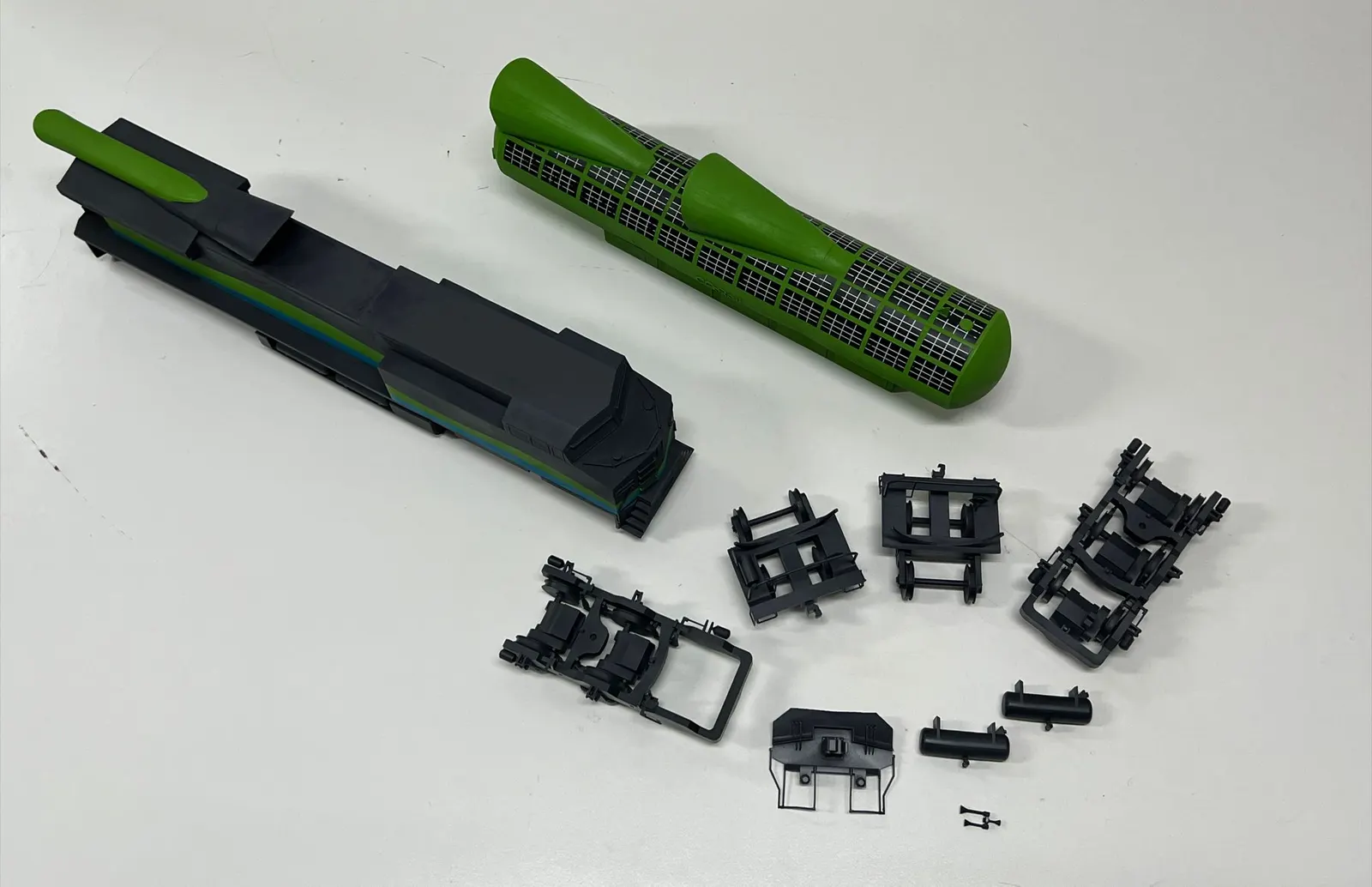

The two painted bodies behind their printed running gear, laid out as separate parts before assembly: bogies, end platforms, the front pilot and small fittings — Painted bodies and printed running gear, before assembly.

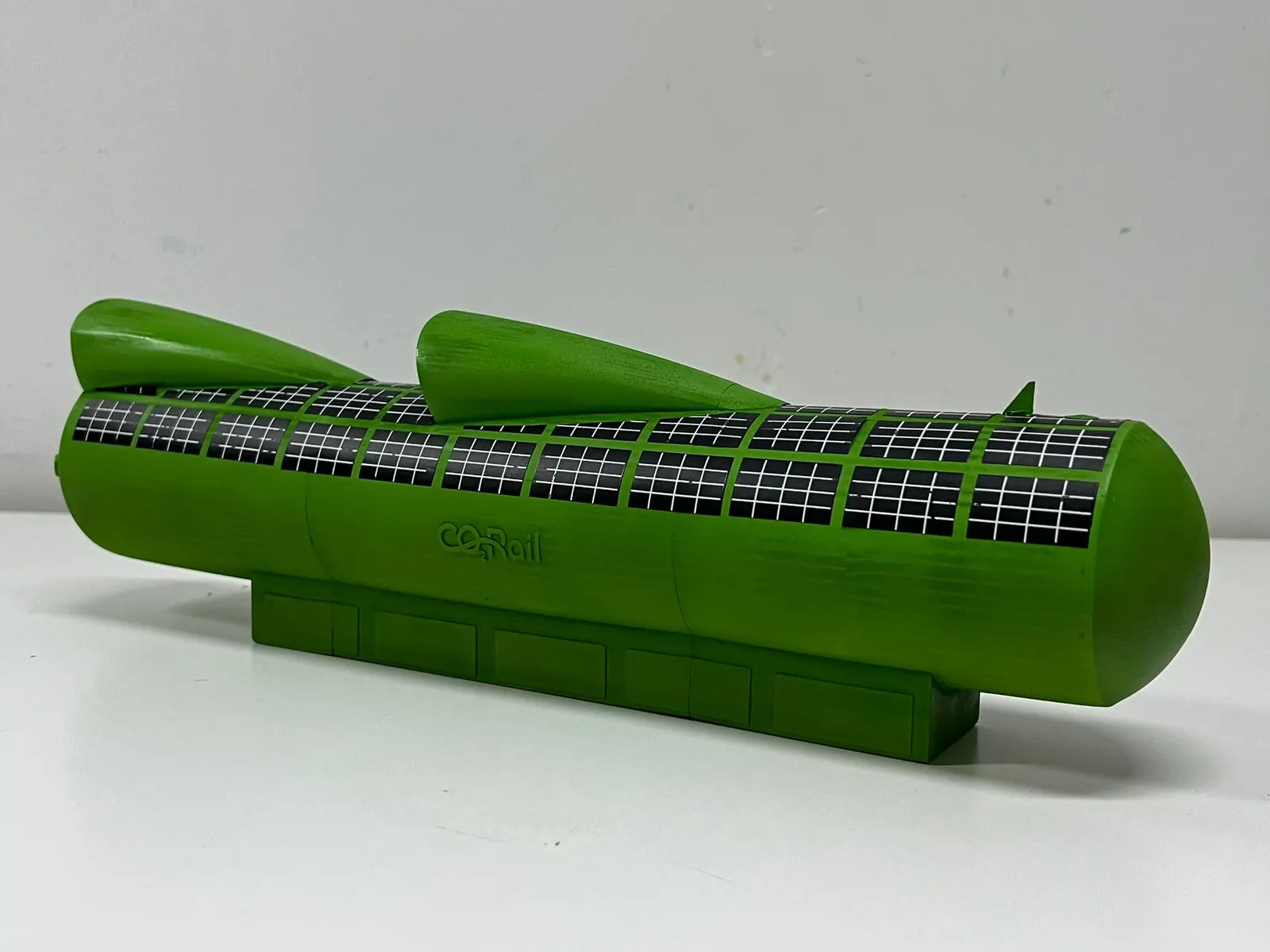

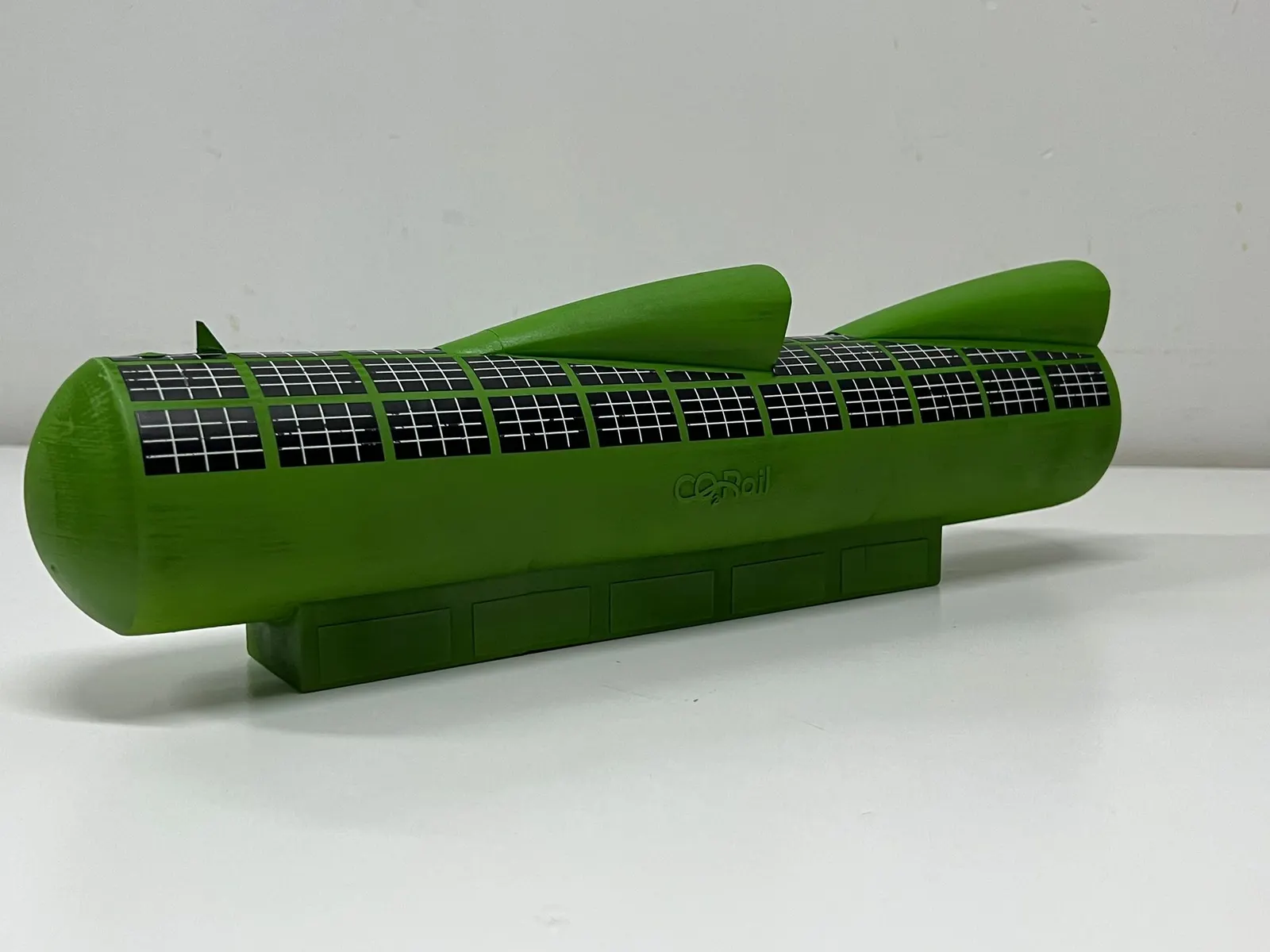

The tank car's green body on its own, painted, with black and white solar panels and two pods on top, before its running gear was fitted — The tank car body, painted, before its wheels.

The final build

Step 4 of 4

Two finished vehicles, ready for display: the grey locomotive with green and blue waves, and the green tank car under its solar panels.

The finished tank car at an angle: a green tank covered in black and white solar panels, two pods on top, the CO2 Rail name on its side and dark grey running gear with handrails at the end — The finished tank car, solar panels and all.

The details

The realism lives in the running gear: bogies, end platforms with handrails and a placard, and the front pilot, each a separate print.

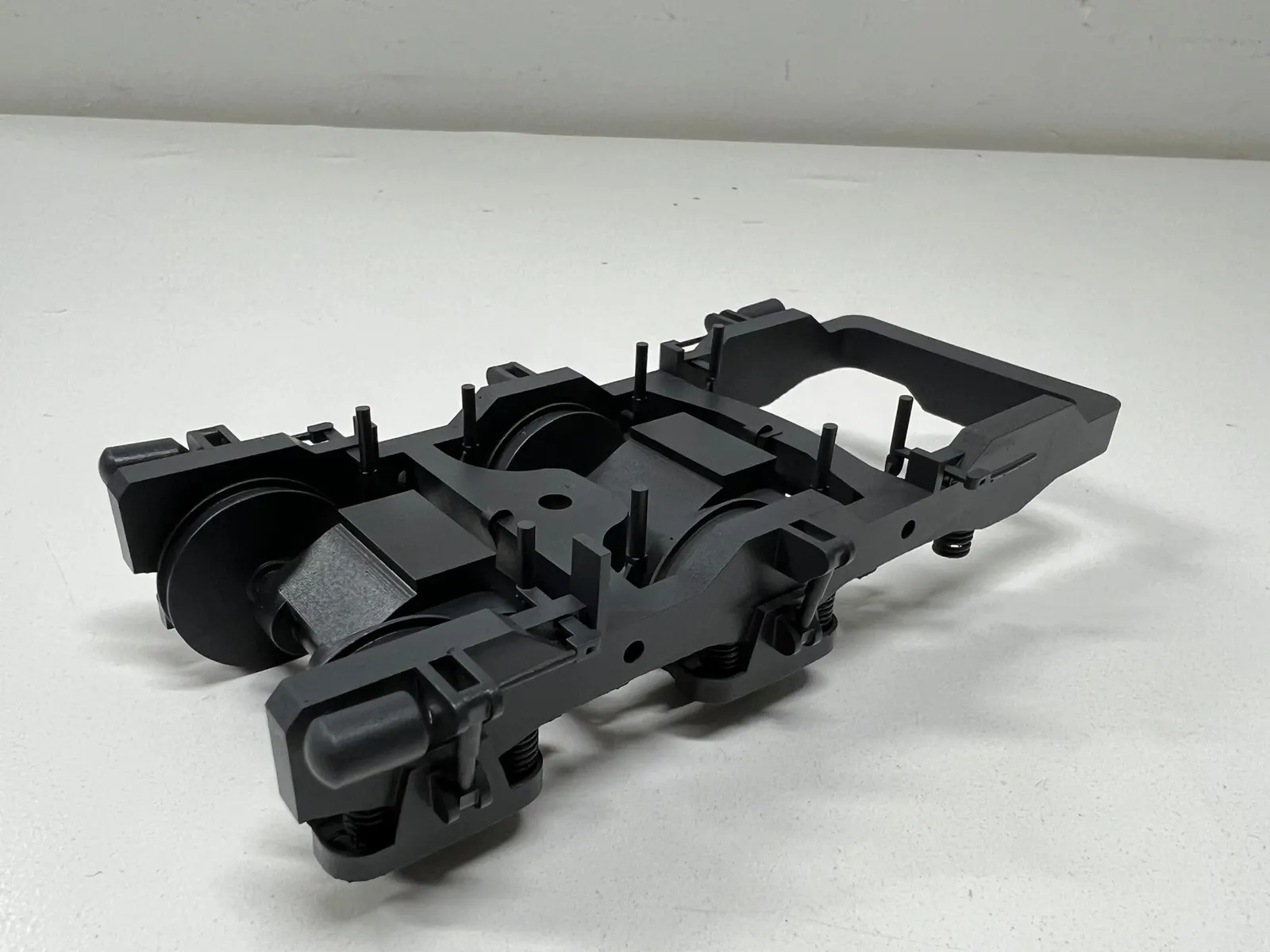

Close-up of one of the locomotive's printed bogies in dark grey, showing the wheels, side frames and fine underframe detail — A locomotive bogie, printed as one detailed part.

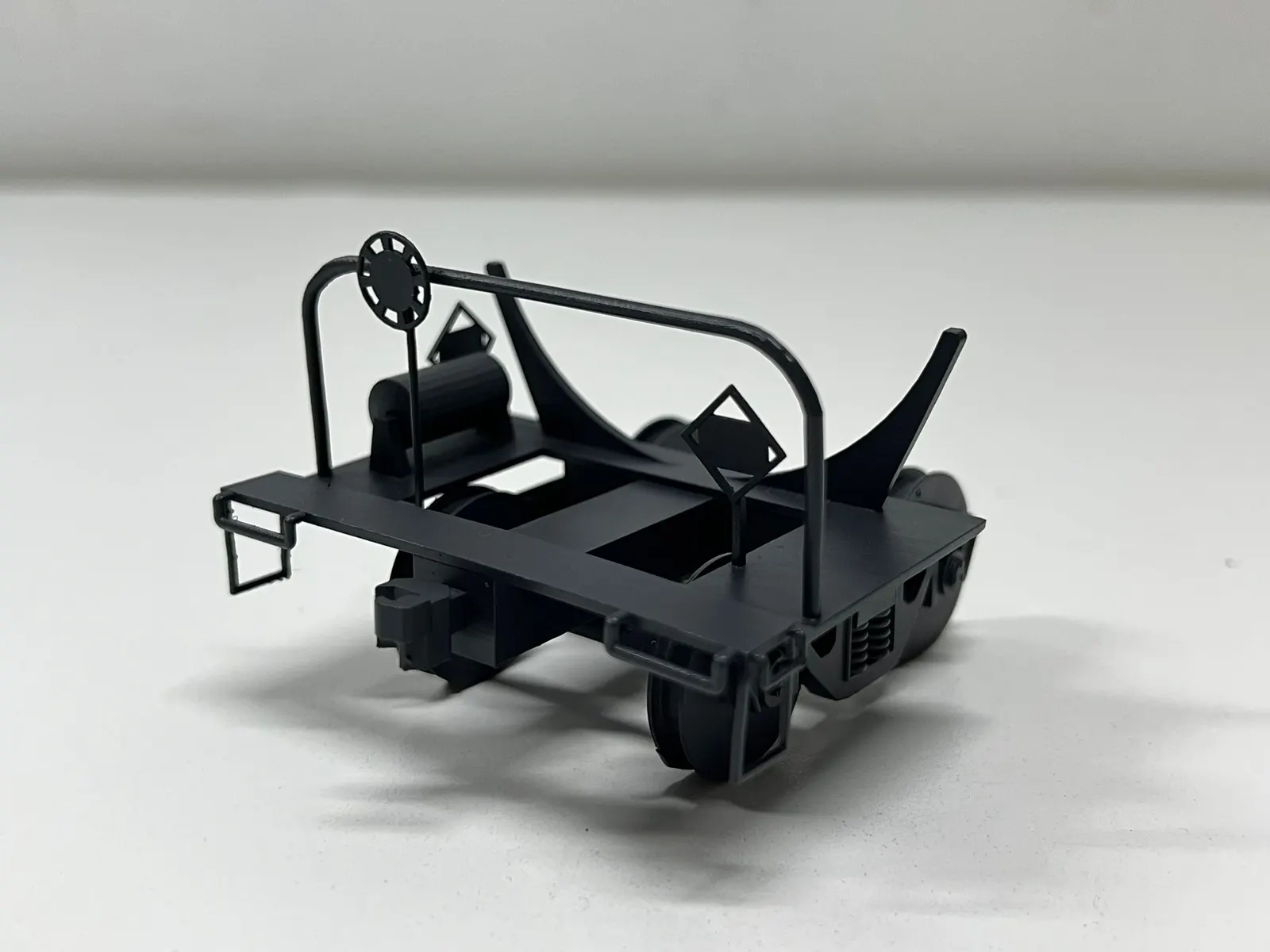

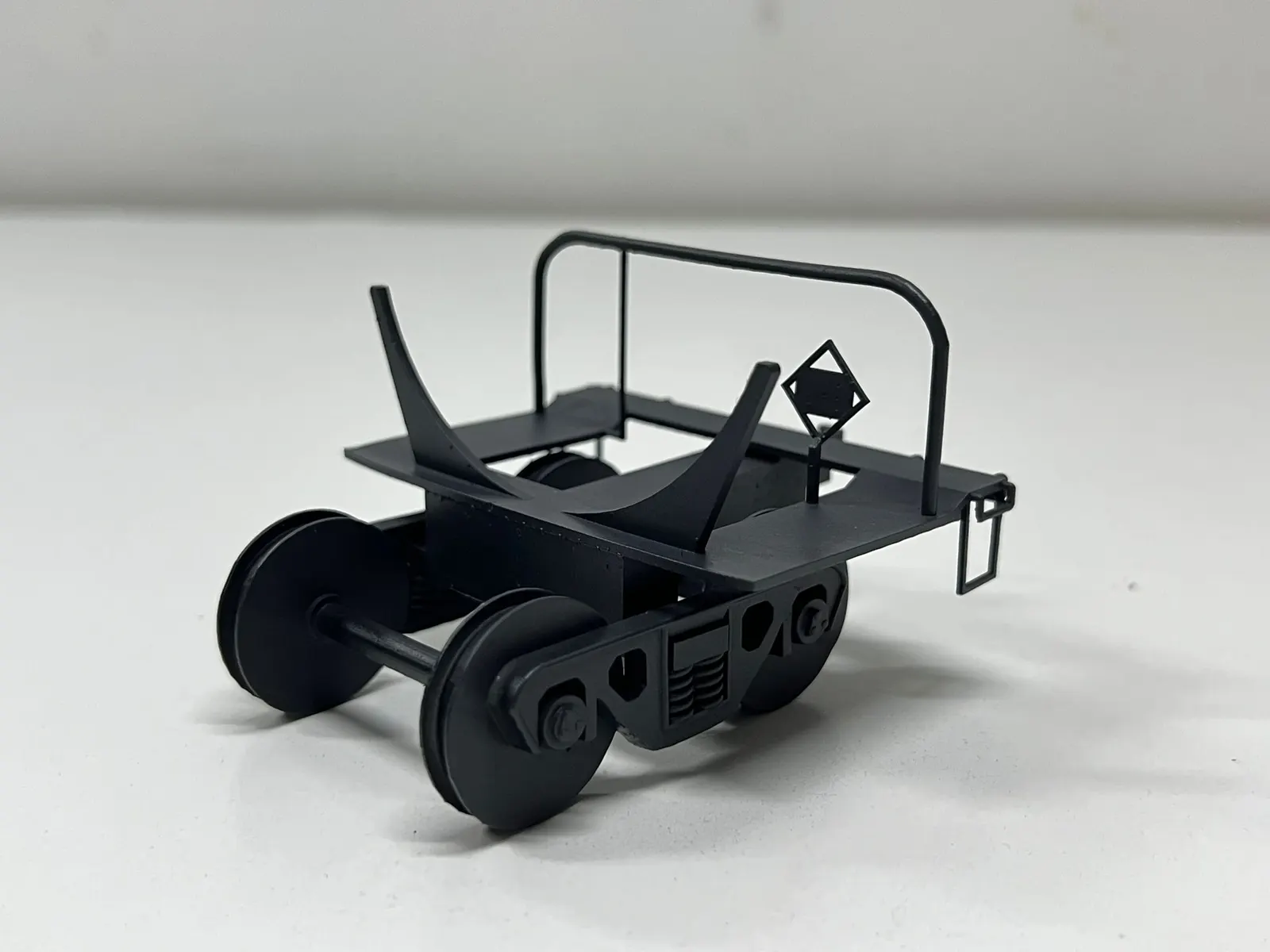

One of the tank car's printed running gear units: wheels, a curved cradle for the tank, a handrail and a diamond placard on the end platform — The tank car's end platform, handrail and placard.

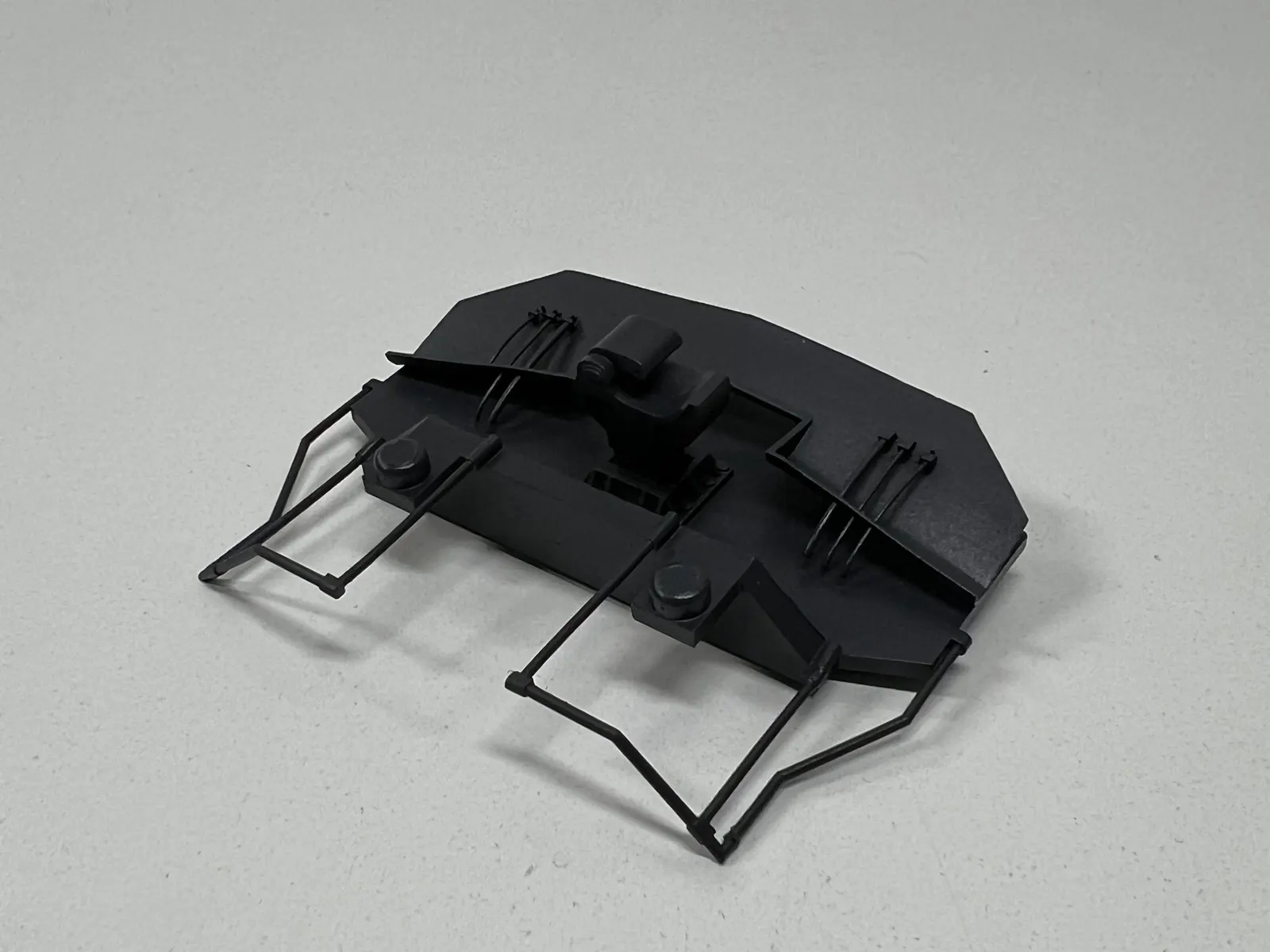

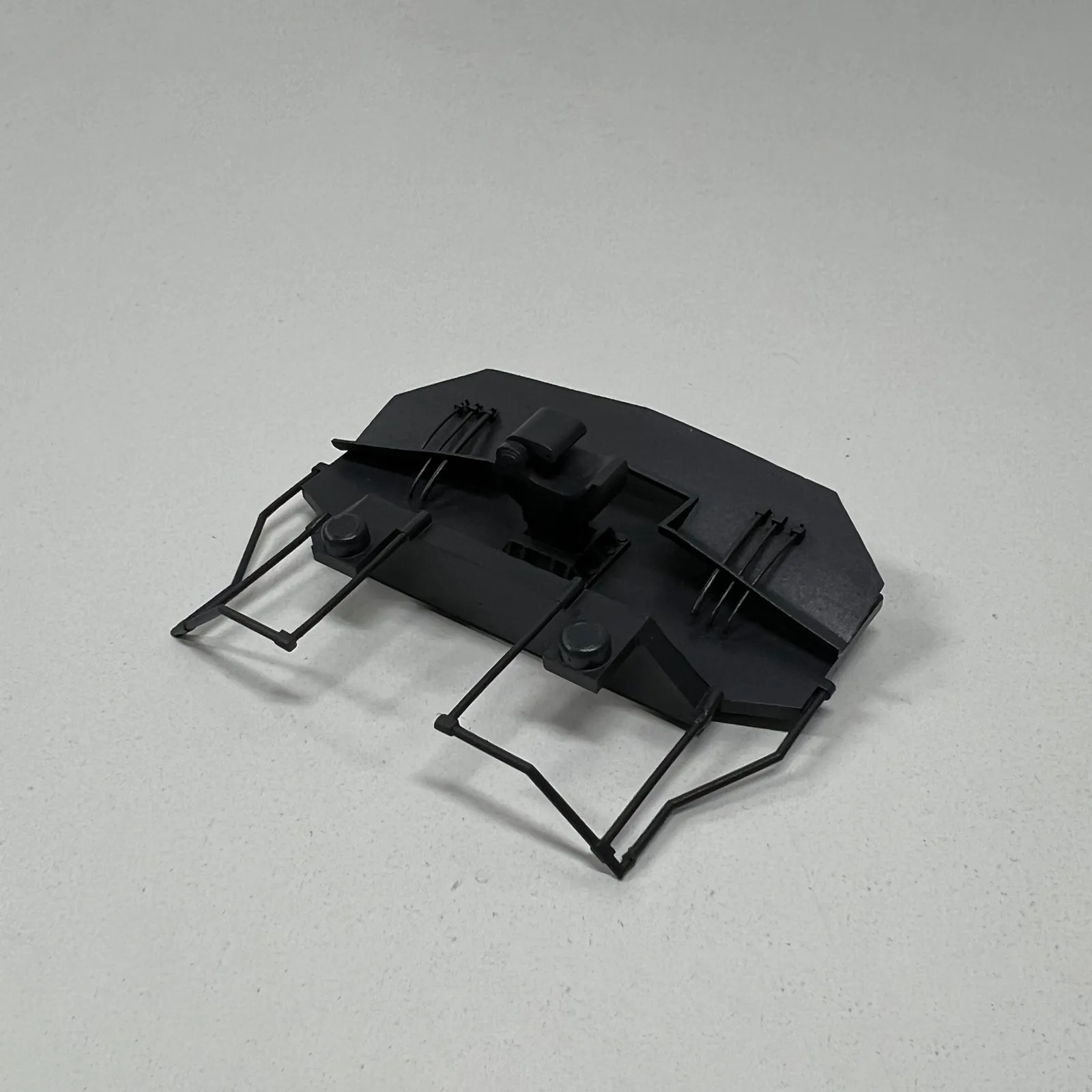

The locomotive's printed front pilot in dark grey, with thin grab rails and steps — The front pilot, with its thin grab rails.
