Anniversary mic figurines for Shure
Two collectible mic characters for Shure's 100th anniversary, sculpted and revised in 3D, then cast in resin, painted and boxed as 700 gift-ready figurines.
- Client
- Shure
- Service
- Custom 3D Figurines
- Made for
- Shure's 100th anniversary
- The run
- 700 figurines in two designs
- Delivered as
- Painted, boxed and shipped to five countries
- Figurines, 350 of each character
- 700
- Rounds of 3D renders before the final design
- 4
- Height of the SM58 figure after the last revision
- 82.2 mm
- Countries the run was shipped to
- 5
What we brought
What we can do
Sculpted and revised in 3D
Four rounds of 3D renders, measured to a tenth of a millimetre, settled both characters before casting began.
How we look after you
A run of 700, made to one standard
We made moulds from the approved prototype, cast 350 of each character in resin and checked every unit.
What you get
Gift-ready, boxed and shipped
Every figure went into a box with a clear PVC window and printed wrap, shipped to five countries.
Gallery
The whole project at a glance. Drag or swipe to browse; tap a picture to enlarge it.
1 / 43
-
The finished piece
-

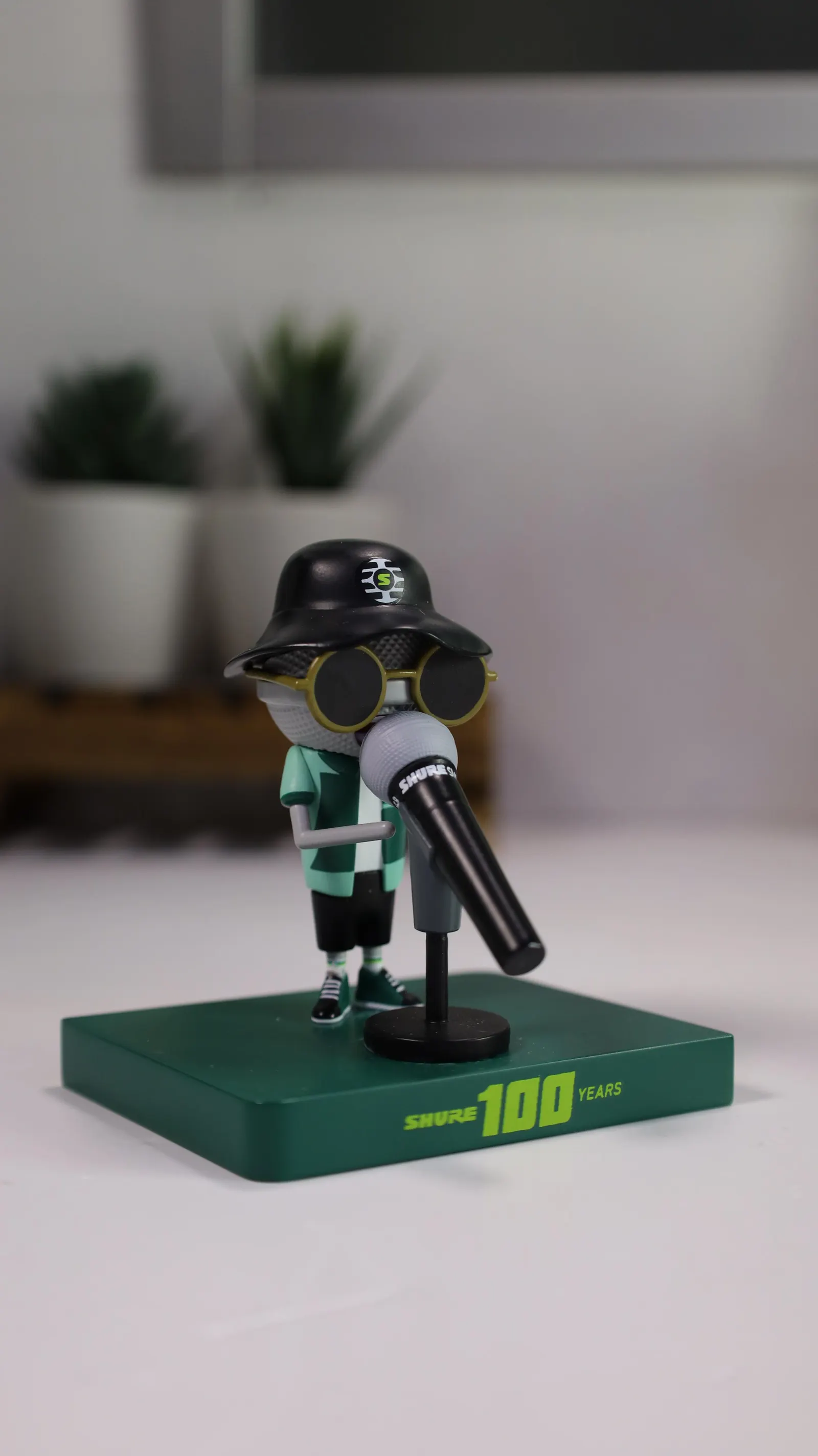

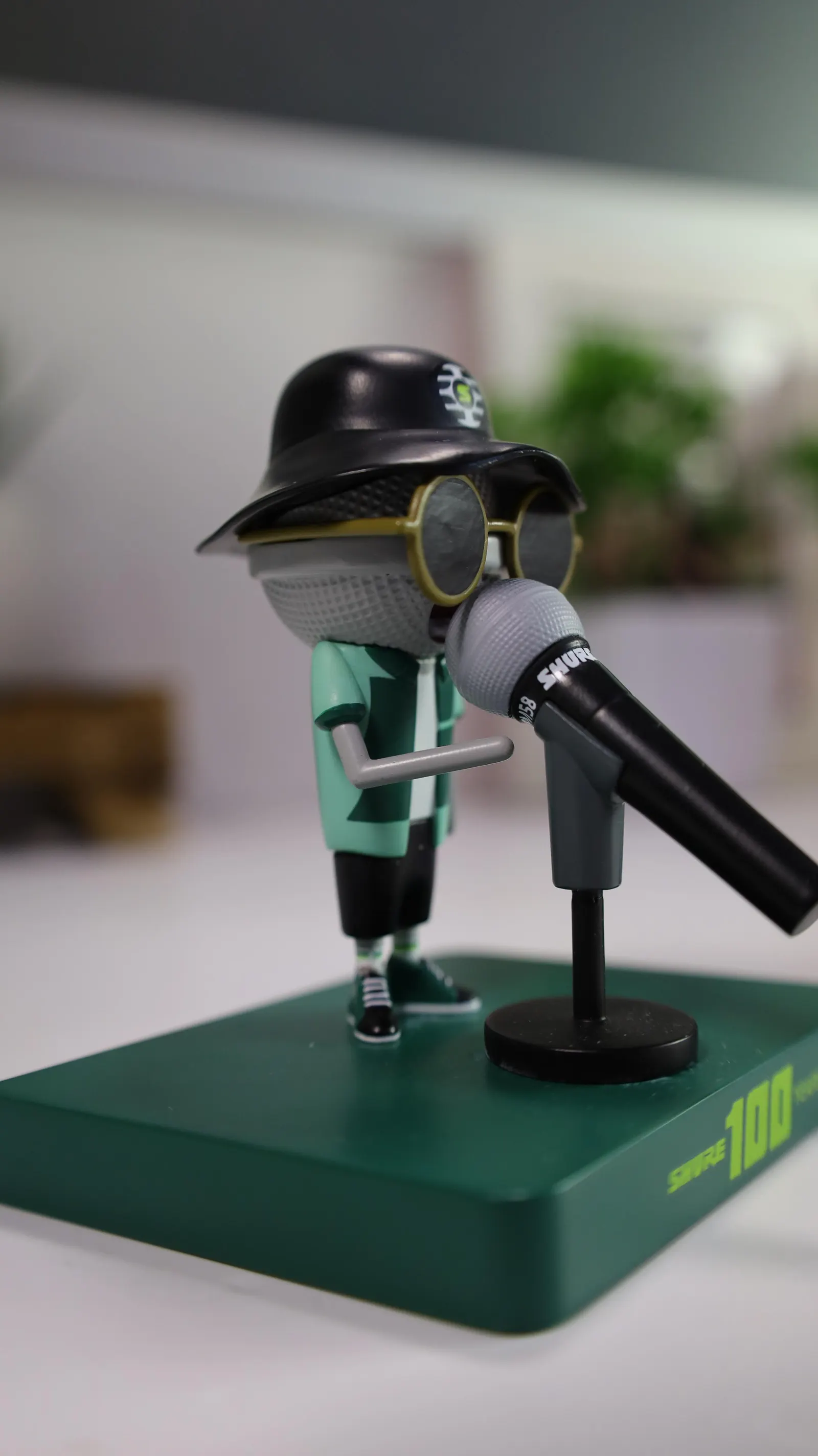

The finished SM58 figure.
-

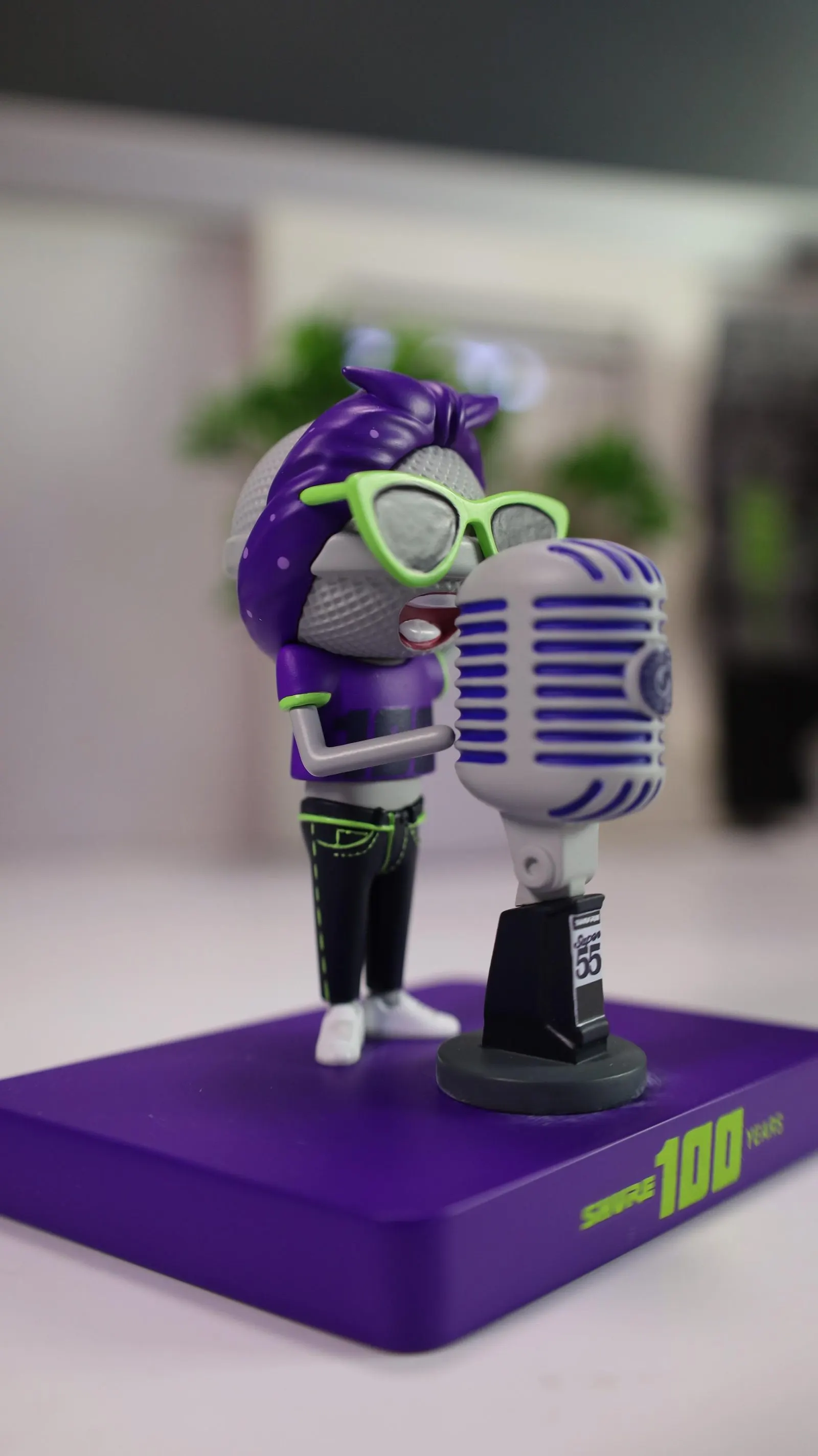

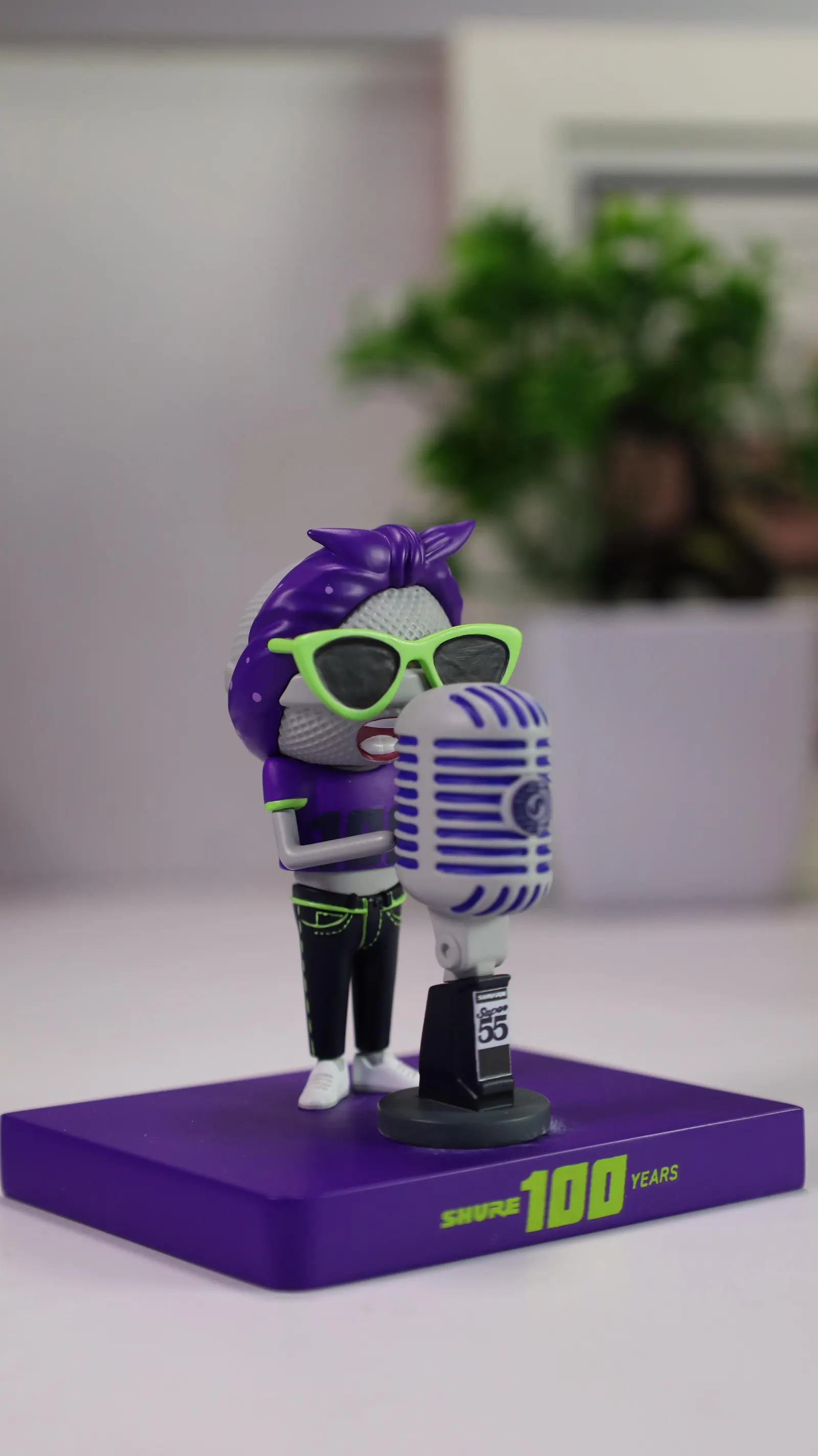

The finished Super 55 figure.
-
The Super 55 figure from behind.
-
The SM58 figure in hand.
-
Super 55 on the turntable.
-

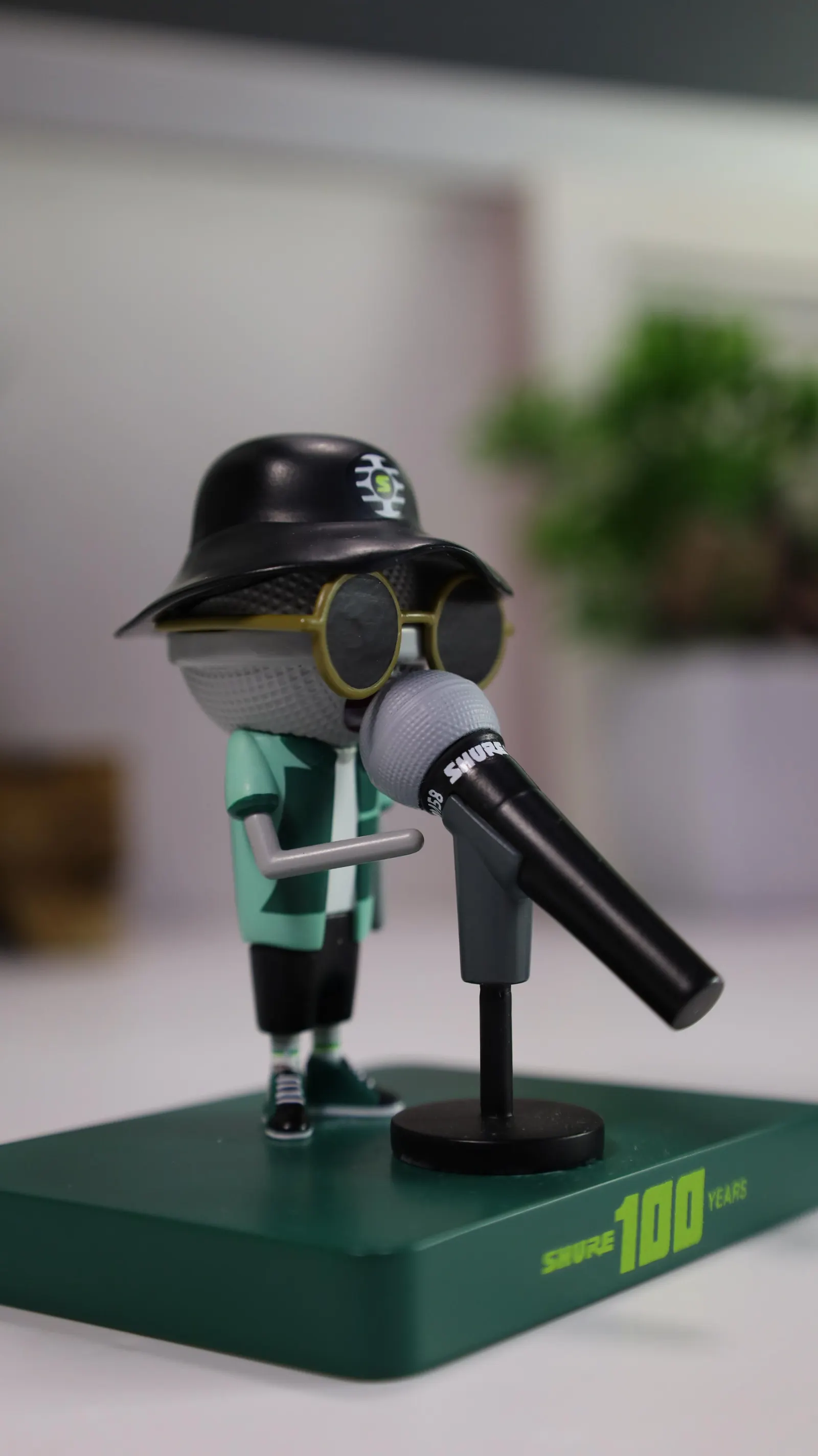

SM58, finished.
-

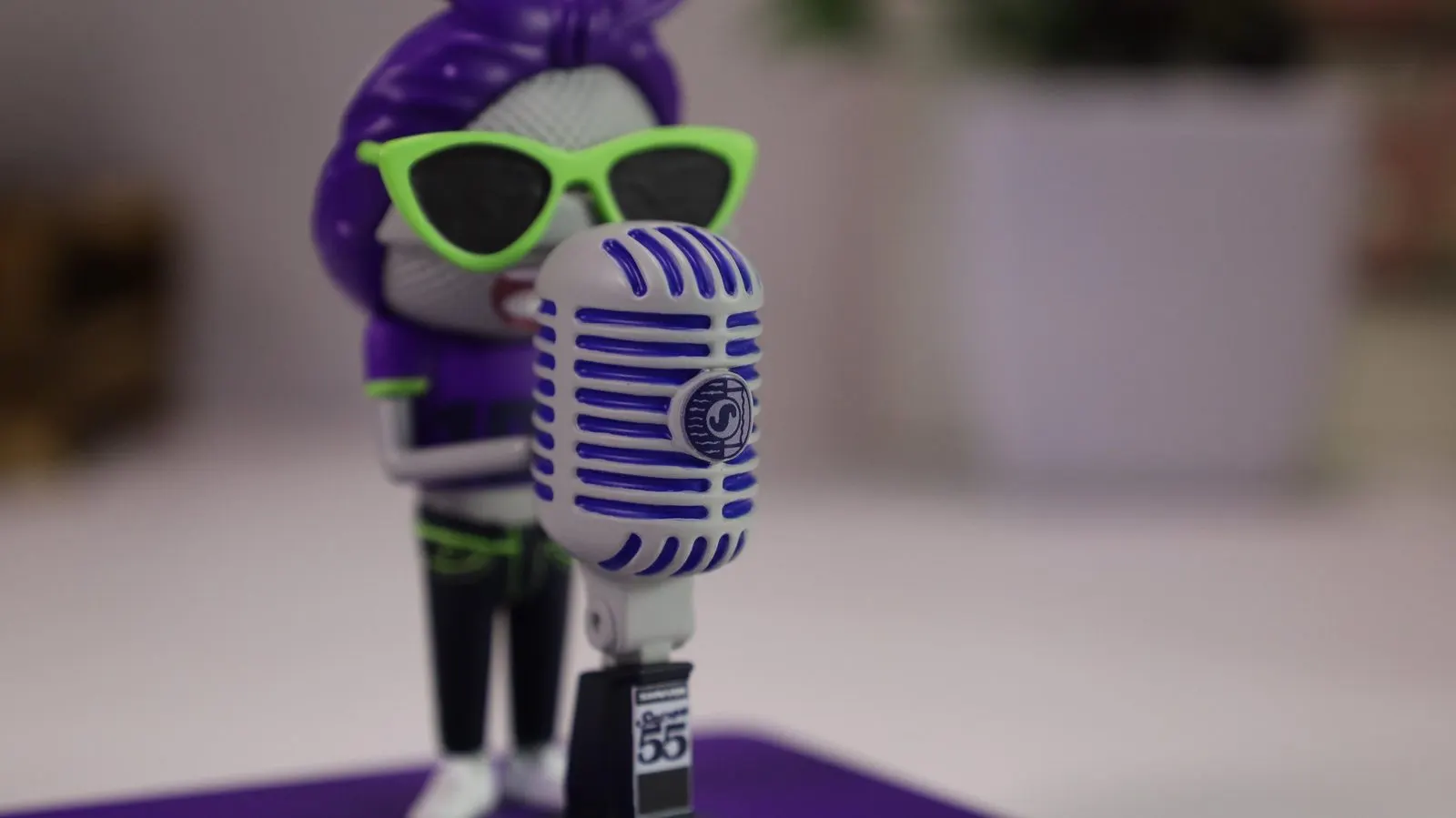

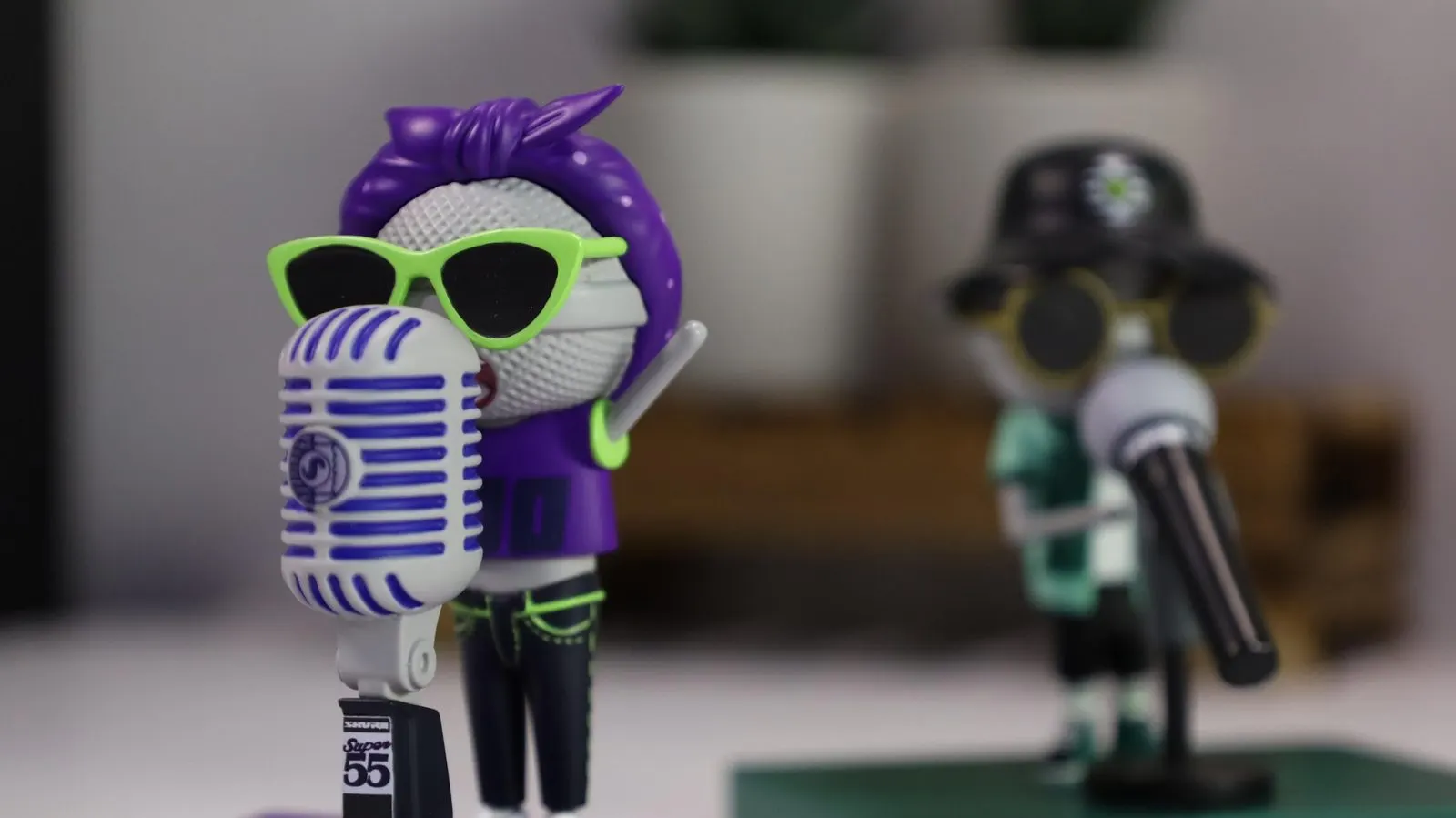

Super 55 up close.
-
SM58 in portrait.
-

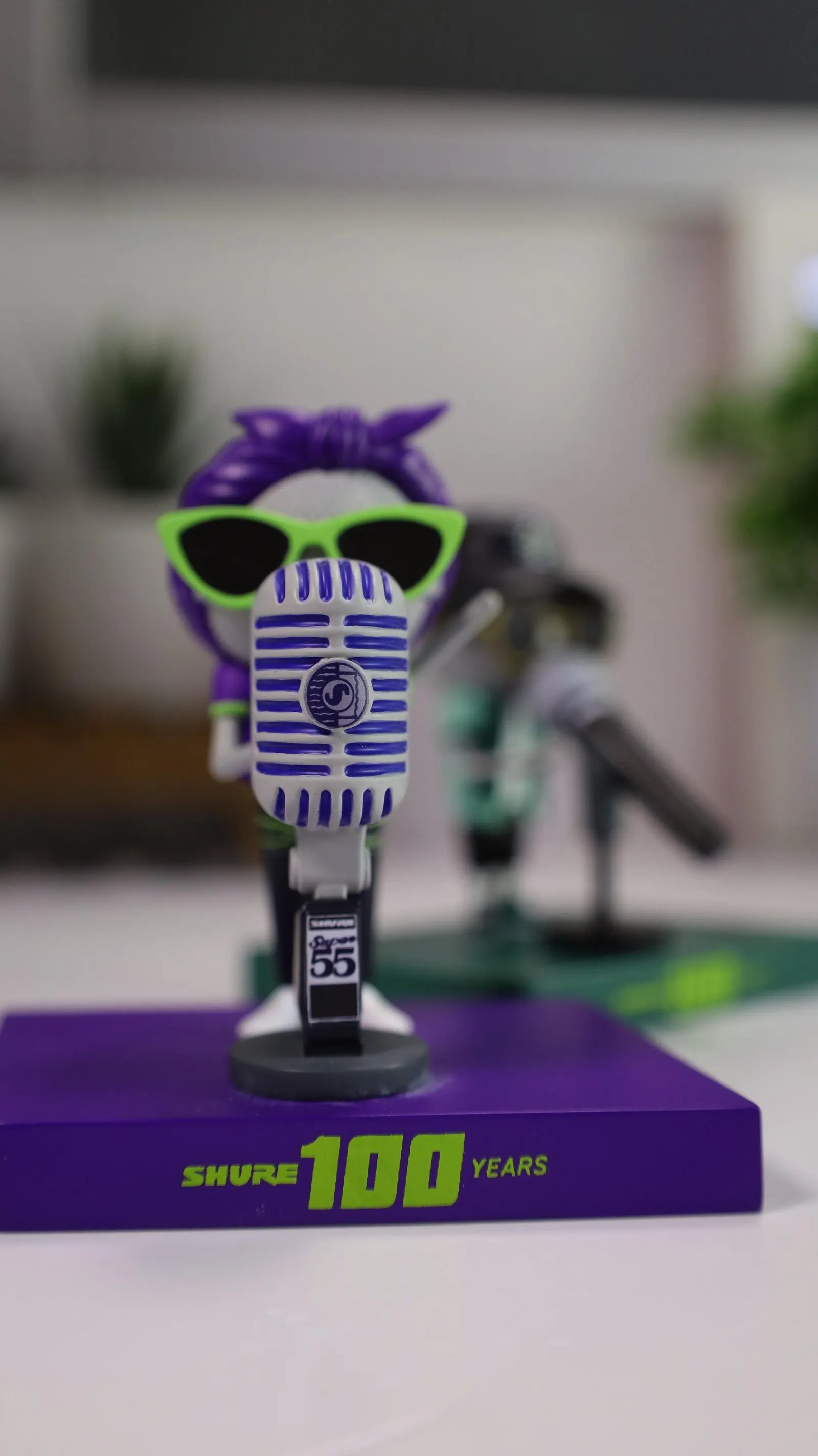

Super 55, front on.
-
Super 55 in hand.
-
SM58 on the turntable.
-
SM58, close up.
-
SM58 from behind.
-
Super 55, all round.
-
SM58, all round.
-

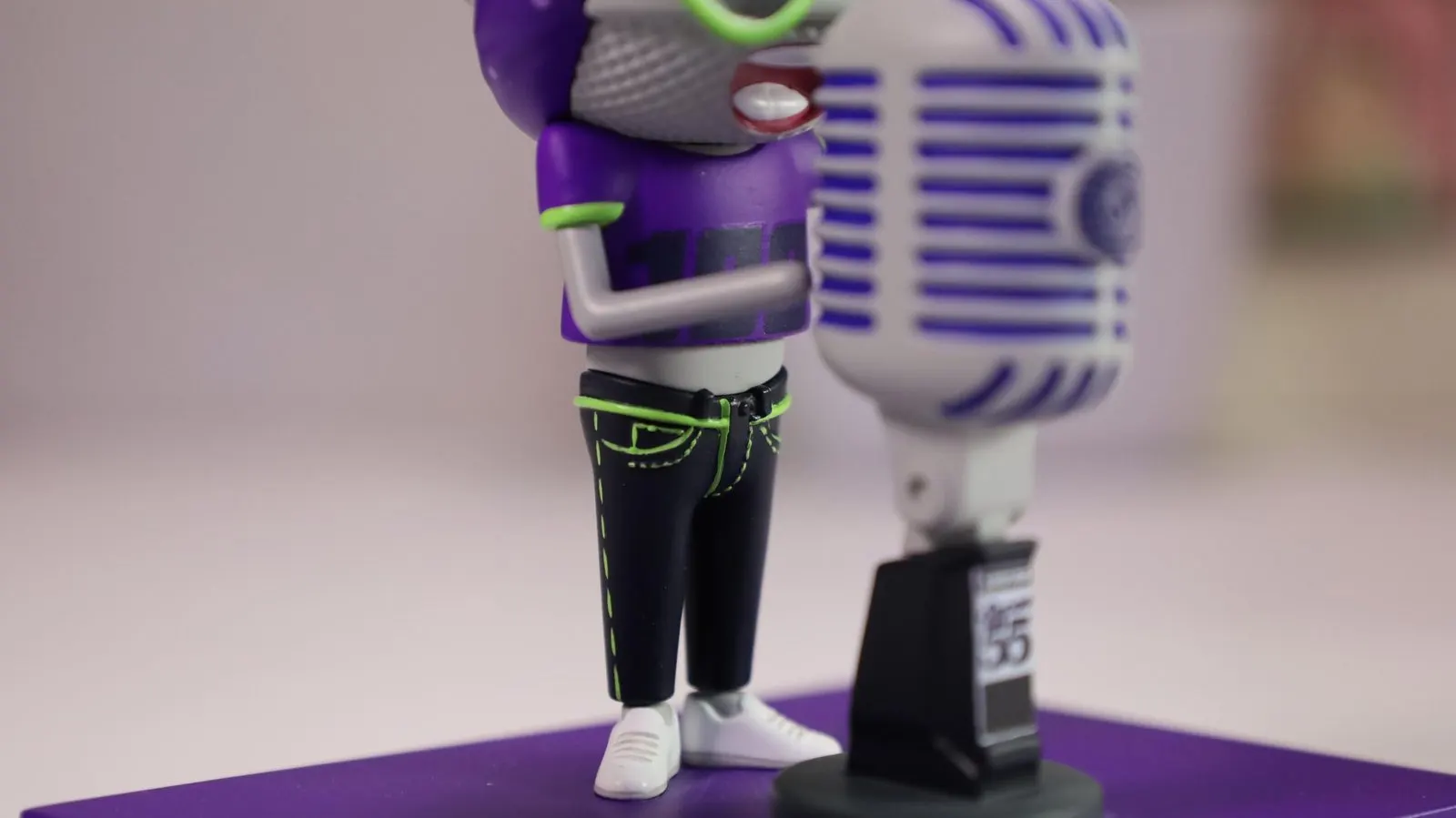

The Super 55 mic and painted jeans.
-
The purple base and Super 55 badge.
-

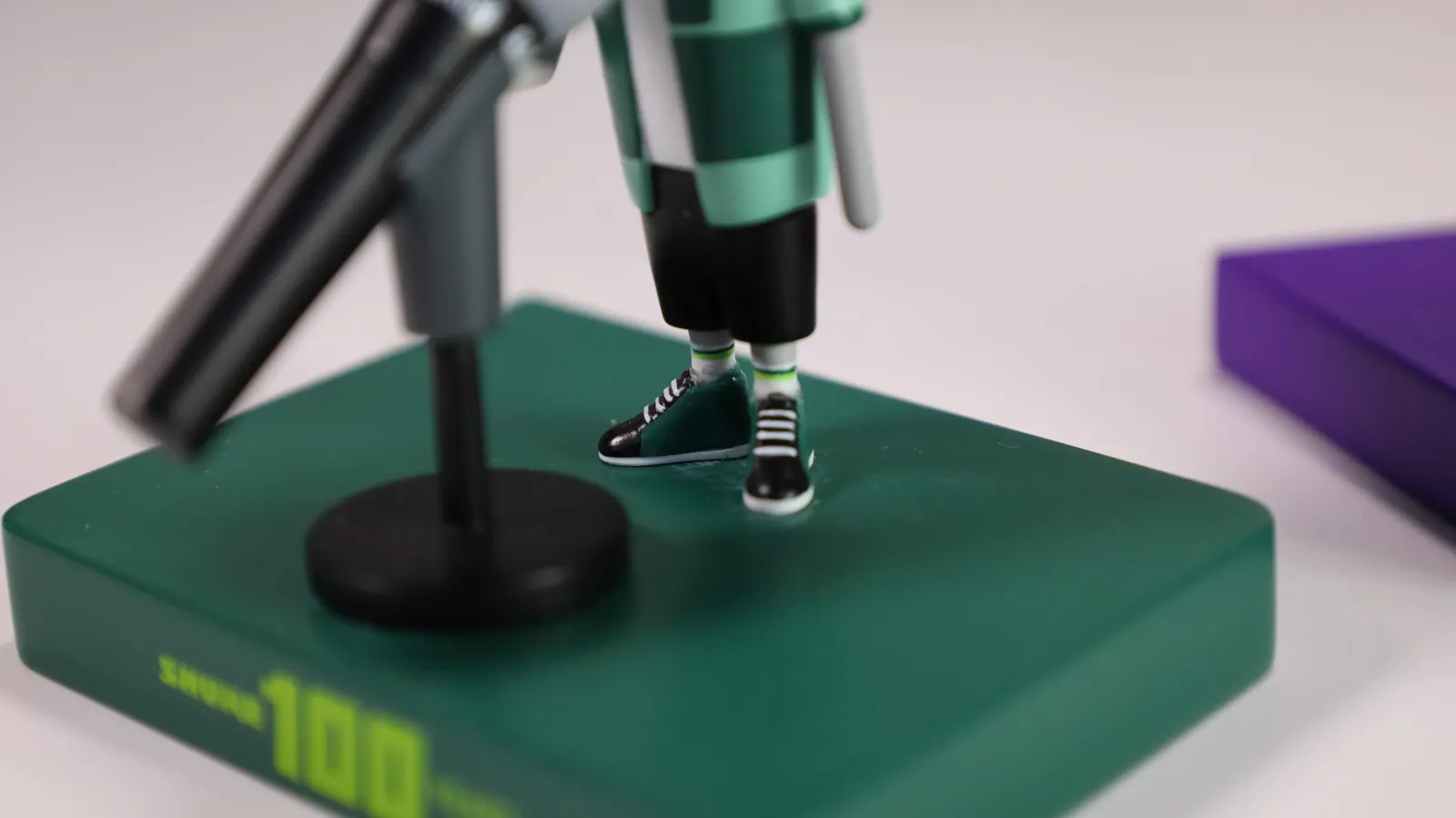

The green base and mic stand.
-
Design and prototyping · Revision 0RenderRevision 0, the SM58 character.
-
RenderRevision 0, the Super 55 character.
-
Design and prototyping · Revision 1RenderThe SM58 mic, original and resized.
-
RenderTwo ways to enlarge the Super 55 mic.
-
RenderThe SM58 figure in Revision 1 colours.
-
RenderThe Super 55 figure in Revision 1 colours.
-
Design and prototyping · Revision 2RenderThe Super 55 figure in Revision 2.
-
Design and prototyping · First sampleThe first painted sample, held in hand.
-
Design and prototyping · Revision 3RenderA wider gap between mouth and mic.
-
RenderTaller, so the mouth shows.
-
RenderThe Super 55 mic, flattened.
-
Design and prototyping · Final designRenderThe final SM58 figure.
-
RenderThe final Super 55 figure.
-
ProductionThe SM58 figure, cast and unpainted.
-
The Super 55 figure, cast and unpainted.
-
Raw resin, ready for paint.
-
SM58, cast, front on.
-
Super 55, cast.
-
SM58, cast, side on.
-
The Super 55 casting, all round.
-
The SM58 casting, all round.
-

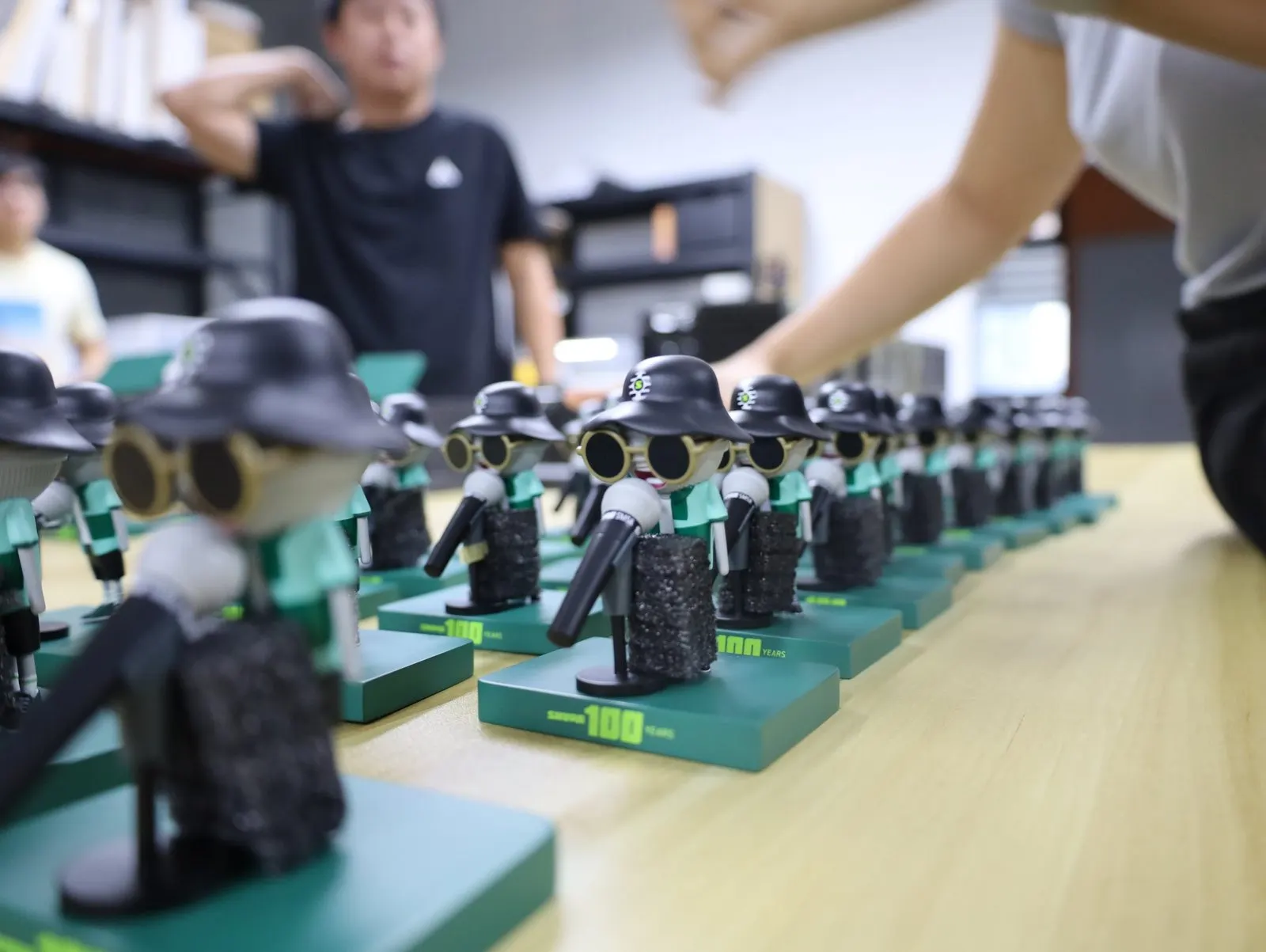

Painting, assembly and packingFinished figures lined up for checks.
-

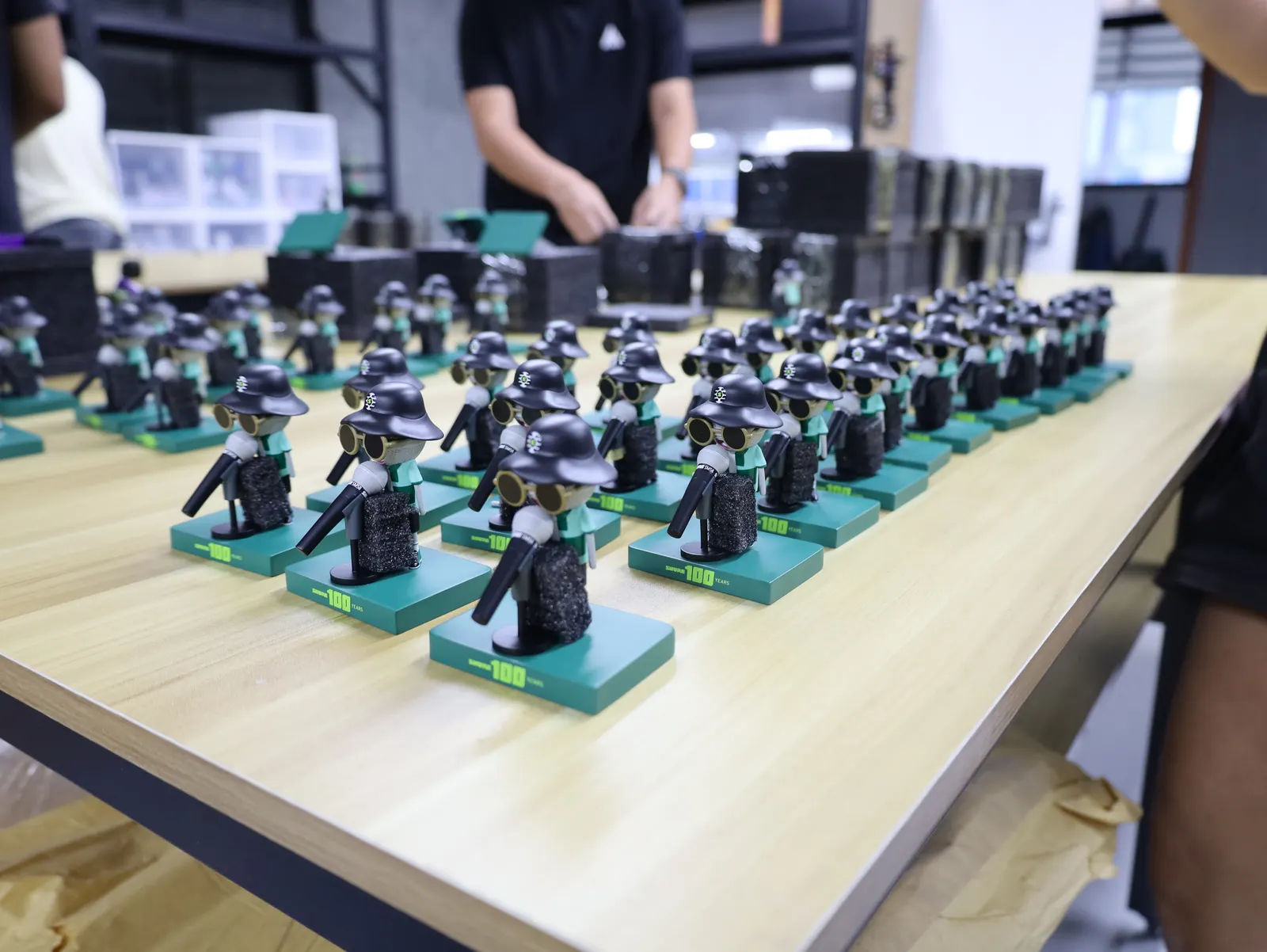

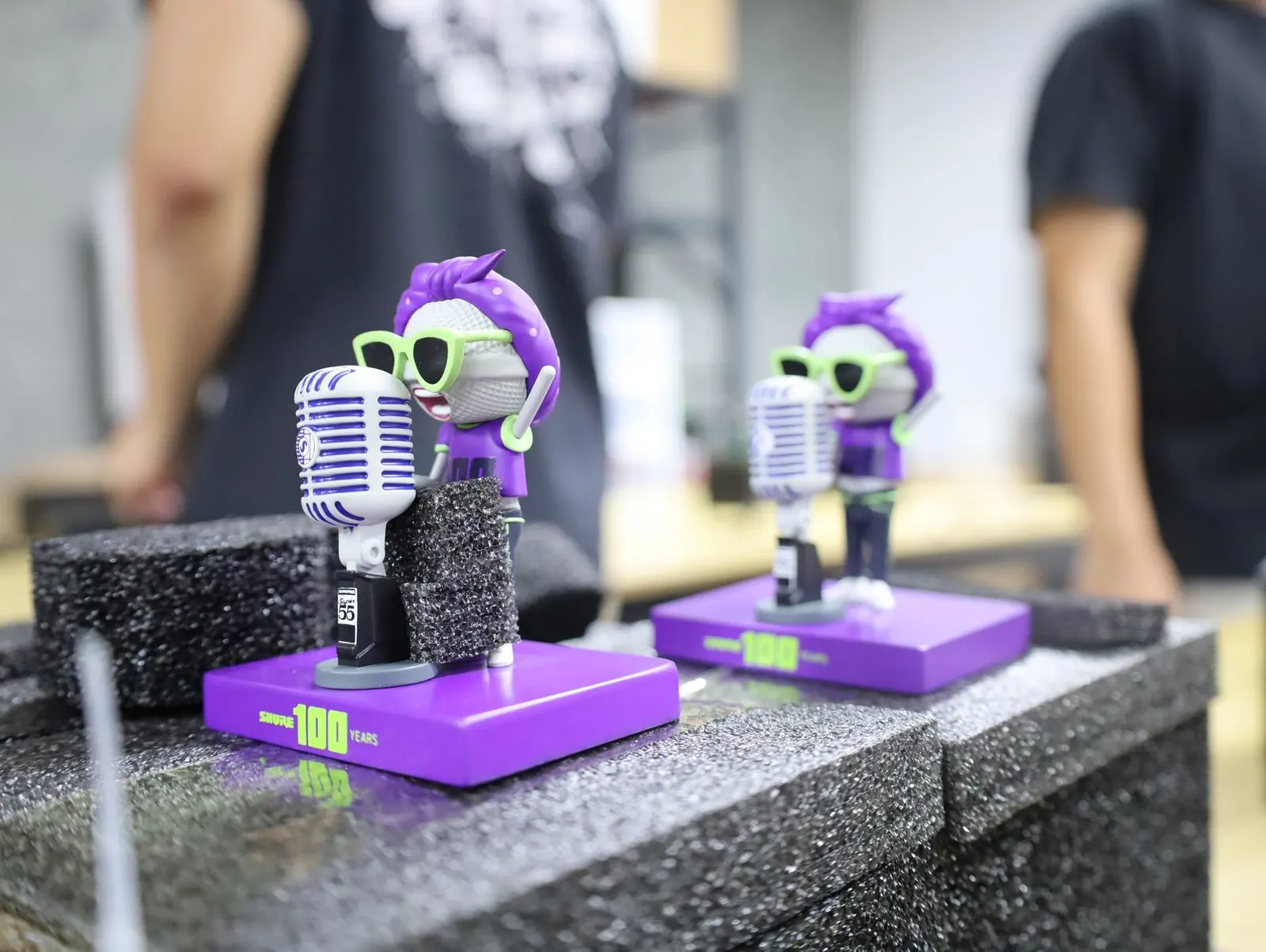

Finished figures ready for their foam.
-
Checking the batch.
The build
How we built it
5 steps, from the brief to the finished piece. Pick a step to jump to it.
The brief
Step 1 of 5
- Use
- Collectible anniversary gift
- Run
- 700 figurines, 350 of each design
At Additive Inn, our 3D printing studio in Singapore, we made the anniversary figurines for Shure's 100th year. Shure needed two collectible characters built around its SM58 and Super 55 microphones, made in a run large enough to send across the region.
Design and prototyping
Step 2 of 5
We sculpted both characters in ZBrush, Maya and Blender, each about 80 mm tall on a SHURE 100 YEARS base, and matched every colour to a Pantone reference. Logos and mic lettering were planned as decals.
-
Revision 0
Revision 0, the SM58 character.
Render +1 more
-
Revision 1
We enlarged both microphones, the SM58 from 8 to 9.5 mm across, and offered two Pantone sets for each figure.
Render +3 more
-
Revision 2
A second colour round on the Super 55 character, again with two Pantone sets side by side.
Render
-
First sample · 23/06/2025
Notes on the first sample: smaller SHURE text, a taller SM58 figure, a flatter mic, cleaner paint, a straight logo.
-
Revision 3
The SM58 figure grew from 79.9 to 82.2 mm with a wider mic gap; the Super 55 mic got flatter.
Render +2 more
-
Final design
Final colours and decals: the SM58 lettering, the Shure logos, the Super 55 badge and the SHURE 100 YEARS base.
Render +1 more
Production
Step 3 of 5
Production began on 03/07/2025. We made moulds from the approved prototype and cast both figures in resin, 350 of each, shown here in raw grey before paint.
Painting, assembly and packing
Step 4 of 5
Each casting was painted in its chosen Pantone colours, given its decals, then assembled and checked unit by unit. The figures travelled in foam, in 700 boxes with a clear PVC window and printed wrap.
The final build
Step 5 of 5
The run shipped to five countries across Asia Pacific, each figure on its SHURE 100 YEARS base: the SM58 character in green, the Super 55 character in purple.
Likeness
Close-ups of the mic grilles, the decals and the lettered bases.
