Gold dragon vajra spear for Ci Min Guan Yin Jiang Tang
A dragon vajra spear for Ci Min Guan Yin Jiang Tang, sculpted over eight rounds of renders, printed in resin and electroplated in mirror gold.
- Client
- Ci Min Guan Yin Jiang Tang
- Service
- Custom 3D Figurines
- Design revisions, from Revision 0 to Revision 7
- 8
What we brought
What we can do
Fine detail that holds under the gold
SLA resin keeps the dragon's mane, horns and lotus collars crisp under a mirror-gold plated finish.
How we look after you
Eight rounds until it was right
We shared renders from Revision 0 to Revision 7, and reworked the dragon head on its own.
What you get
Made to be handled
Revision 4 made the spear thicker for stability and added a groove to tie the string around.
Gallery
The whole project at a glance. Drag or swipe to browse; tap a picture to enlarge it.
1 / 15
-
The finished piece
-

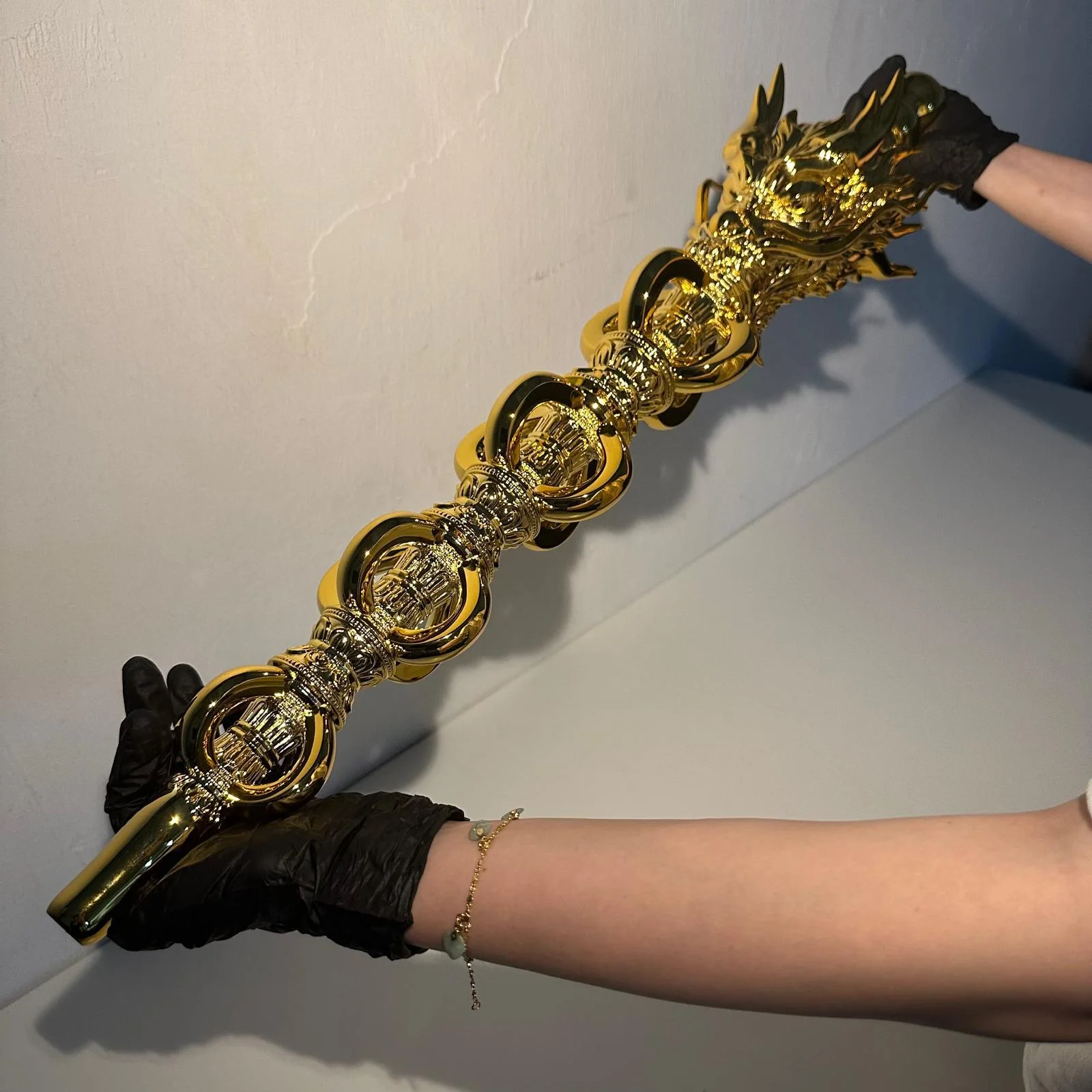

The whole spear, held in hand.
-

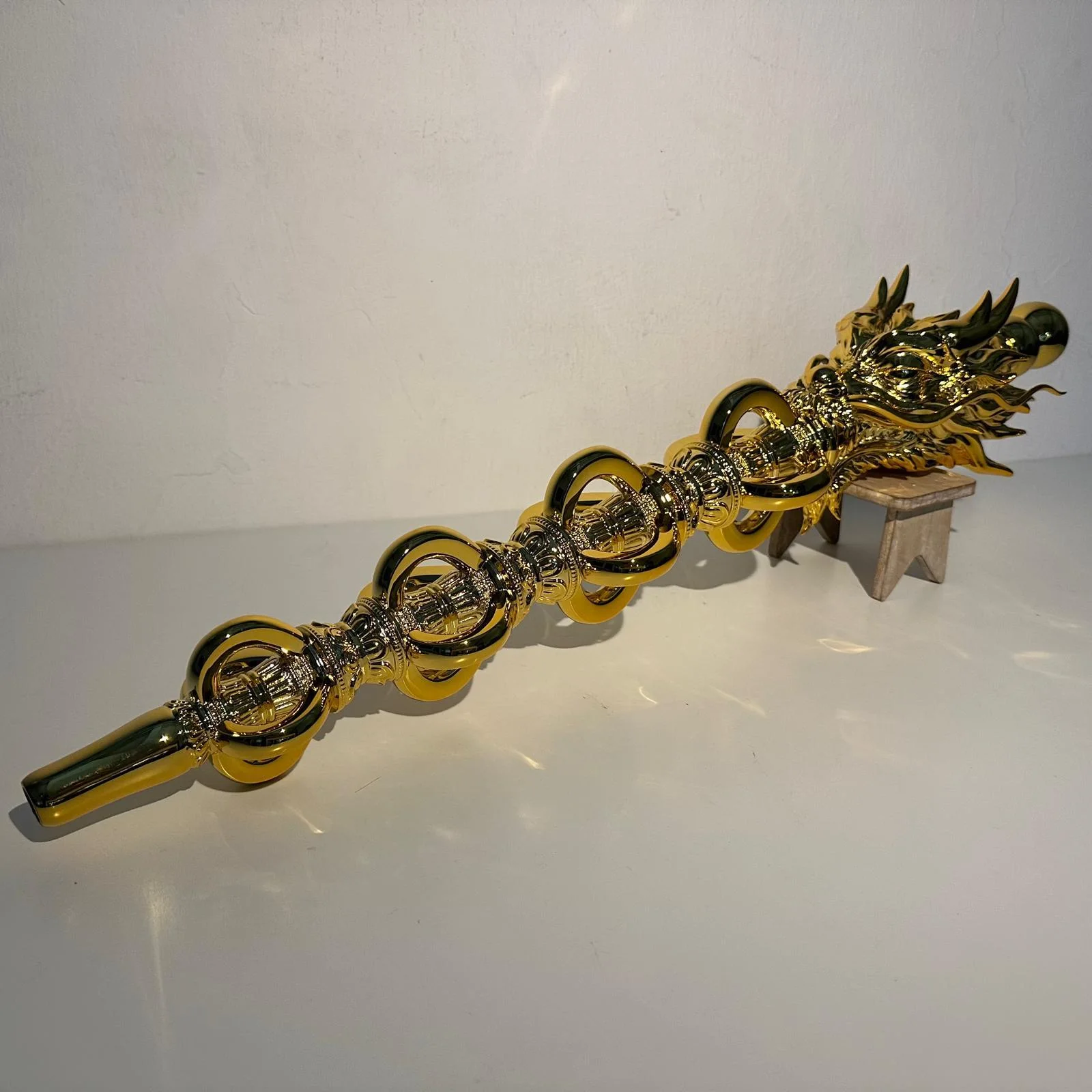

Resting on its stand.
-

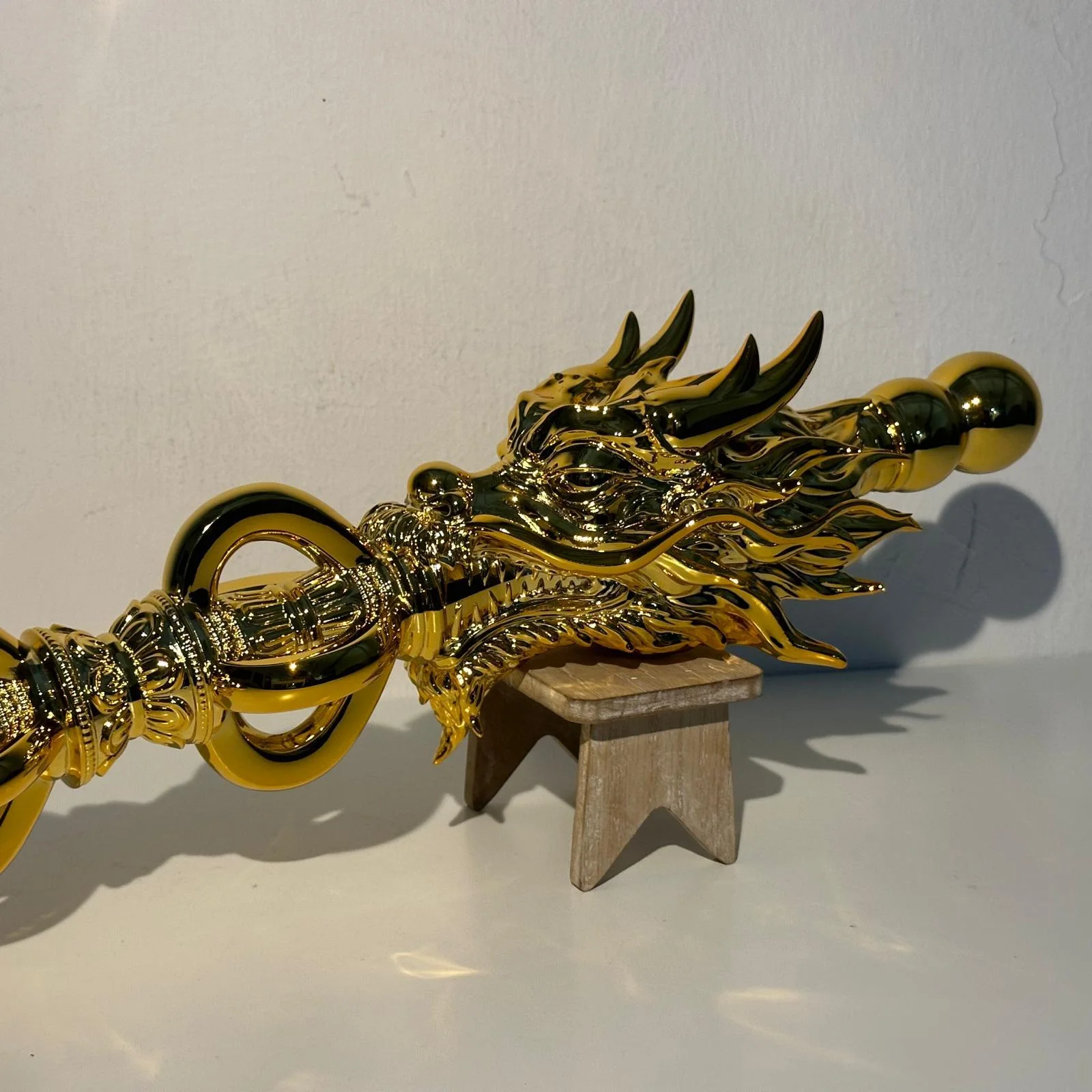

The dragon head and pommel.
-

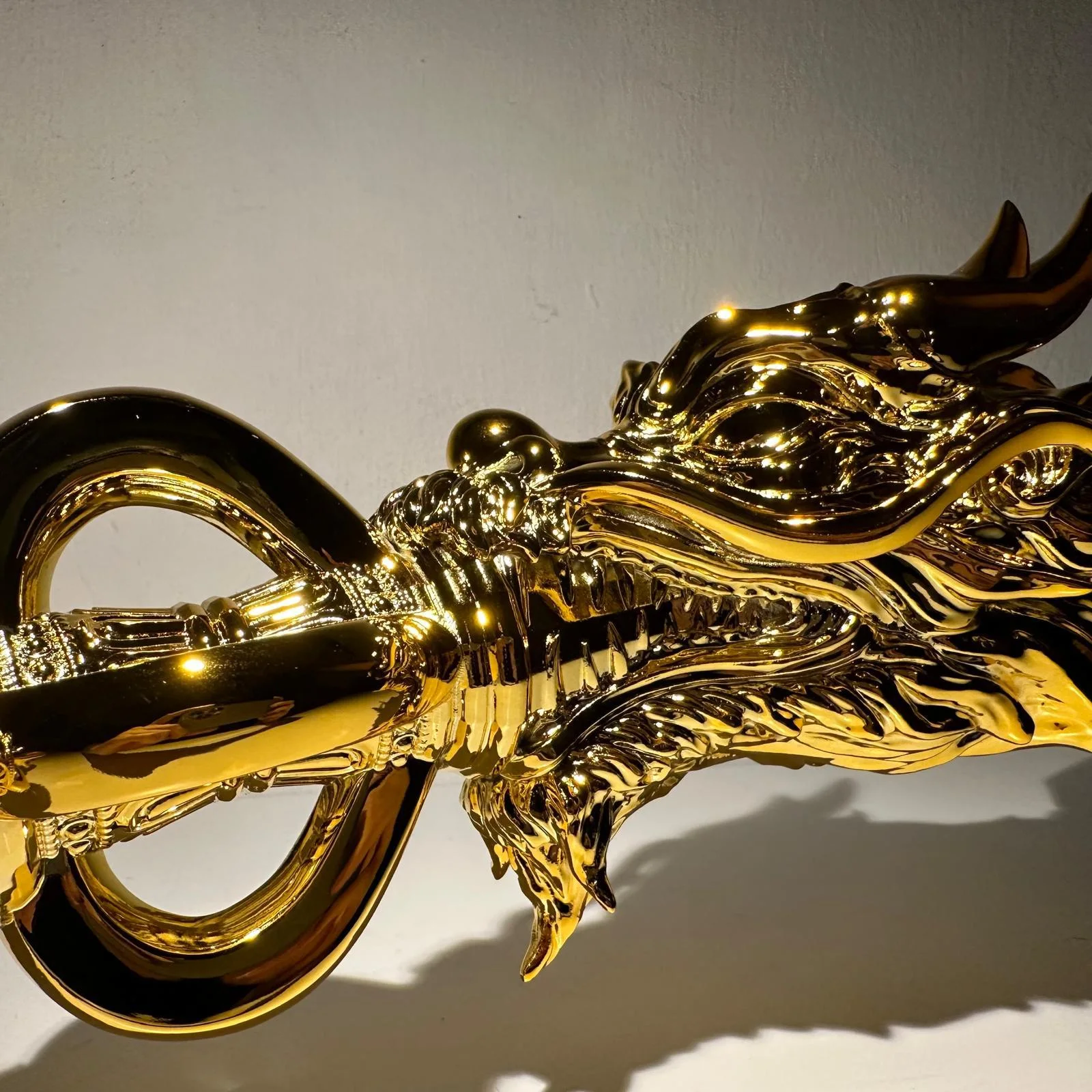

Where the head meets the prongs.
-
Horns and whiskers in gold.
-
Design and prototyping · Revision 0RenderThe first sculpt, from every side.
-
Design and prototyping · Revision 1RenderEnd to end, with close-ups.
-
Design and prototyping · Revision 2RenderSeen from both ends.
-
Design and prototyping · Revision 3RenderA string through the pommel.
-
Design and prototyping · Revision 4RenderBolder, thicker, with a string groove.
-
Design and prototyping · Revision 5RenderThe dragon head from six angles.
-
Design and prototyping · Revision 6RenderWhiskers curled in close.
-
Design and prototyping · Revision 7RenderThe final design, end to end.
-
FinishingMirror gold over the sculpted mane.
The build
How we built it
5 steps, from the brief to the finished piece. Pick a step to jump to it.
The brief
Step 1 of 5
- Material
- SLA ABS-like resin
- Finish
- Gold electroplating
At Additive Inn, our 3D printing studio in Singapore, we made a gold dragon vajra spear for Ci Min Guan Yin Jiang Tang (慈憫觀音講堂), a Buddhist temple in Bugis. The temple needed a spear crowned with a sculpted dragon head, with fine detail and 3D engraving that would hold under gold plating.
Design and prototyping
Step 2 of 5
We sculpted the spear digitally and shared each round as renders, eight in all. The later rounds made it bolder and thicker for stability, added a groove to tie the string, and refined the dragon head on its own.
-
Revision 0
The first sculpt, from every side.
Render
-
Revision 1
The same sculpt laid out end to end, with the dragon head and a lotus collar up close.
Render
-
Revision 2
Views from both ends, with the dragon head and one prong cage shown up close.
Render
-
Revision 3
A string added through the ball pommel.
Render
-
Revision 4
A bolder outer layer, a thicker body for stability, a groove for the string, and prongs tapering in size.
Render
-
Revision 5
The dragon head reviewed on its own, from six angles.
Render
-
Revision 6
The dragon's whiskers curled back in, closer to the head.
Render
-
Revision 7
The final design, with the reworked dragon head on the bolder, thicker spear.
Render
Production
Step 3 of 5
The spear was printed in ABS-like resin by SLA, which holds the fine relief of the mane and the lotus collars. The supports were cleaned off, the print deburred and its sharp corners broken.
Finishing
Step 4 of 5
The surface was sanded, filled, patched, primed and buffed smooth, because plating shows every flaw beneath it. Then the spear was electroplated in gold, to a mirror finish.
The final build
Step 5 of 5
The finished spear in mirror gold, from the dragon head and ball pommel, past the four prong rings, to the grip.
